6 Inch x 2 Inch Red Ductile Steel Wheel Swivel Caster - 1500 lbs Capacity | Heavy Duty Plate Mount CasterHQ

6 Inch x 2 Inch Red Ductile Steel Wheel Swivel Caster - 1500 lbs Capacity | Heavy Duty Plate Mount

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$76.00 USD - $101.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ2060S-PL3-DSR

Product Overview

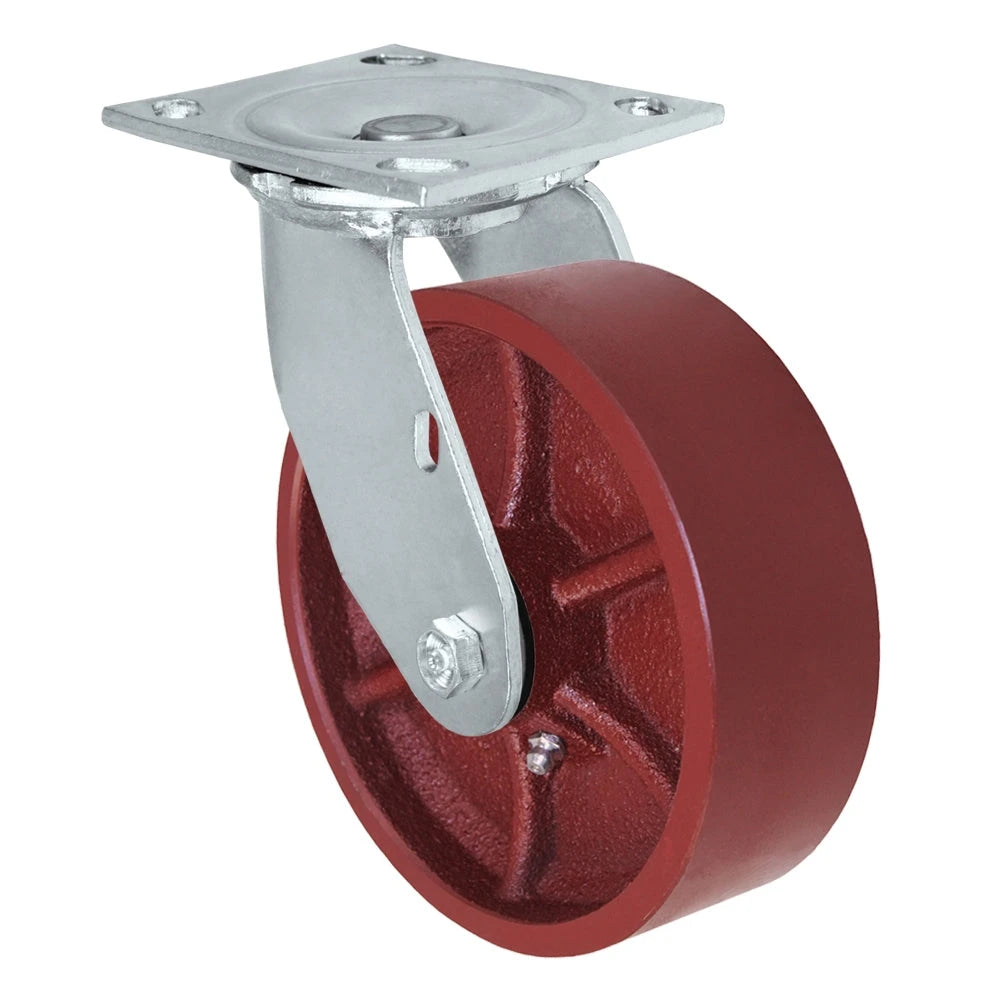

6" x 2" Red Ductile Steel Wheel - Swivel Caster - 1,500 lbs capacity - Plate Size: 4-1/2" x 6-1/4"

This listing is for a 6" Diameter by 2" Tread Width Ductile Steel Wheel Swivel Caster. Each Caster holds up to 1,500 lbs and has a temperature rating up to 800 degrees Fahrenheit.

Plate Size: 4-1/2" x 6-1/4"

CasterHQ's Red Ductile Steel Wheels are made out of Ductile Iron, extra thick walled, heavy-duty core hub and tread. These wheels have a 45,000 PSI rating and can withstand up to 800 degrees Fahrenheit. Ductile Steel Wheels have a high ductility tensile strength meaning these wheels can absorb shock and impact without shattering like most steel wheels. These steel wheels are great for applications that require a high weight capacity with strict safety standards. Ductile Steel wheels are ideal for Heavy Duty applications where a standard polyurethane tread wheel cannot handle the weight of the application. Steel wheels can cause uneven concrete to chip or further degrade if you are rolling these over obstacles or gaps in the floors. If you have a smooth concrete floor these wheels should be fine as long as they are not being dropped onto the floor. These wheels can withstand up to 800 degrees Fahrenheit but the standard roller bearings can start to become brittle and eventually fail and you will need to replace the bearings if they are used frequently over 400 degrees F. This type of wheel is commonly used in high heat applications including powder coating due to its strength and durability.

Extra Thick Ductile Iron
Tensile Strength: 45,000 psi
Temperature Range: -45F to 800F
Color: Red

Questions? Please Call us @ 844-439-4335 or Contact Us Here
For quick online service please email us: sales@casterhq.com and a Caster Expert will help you answer any questions.

We ship Fast!!!
If ordered before 12-noon we ship all orders typically ship SAME DAY!
All orders received after 12-noon will ship the following business day

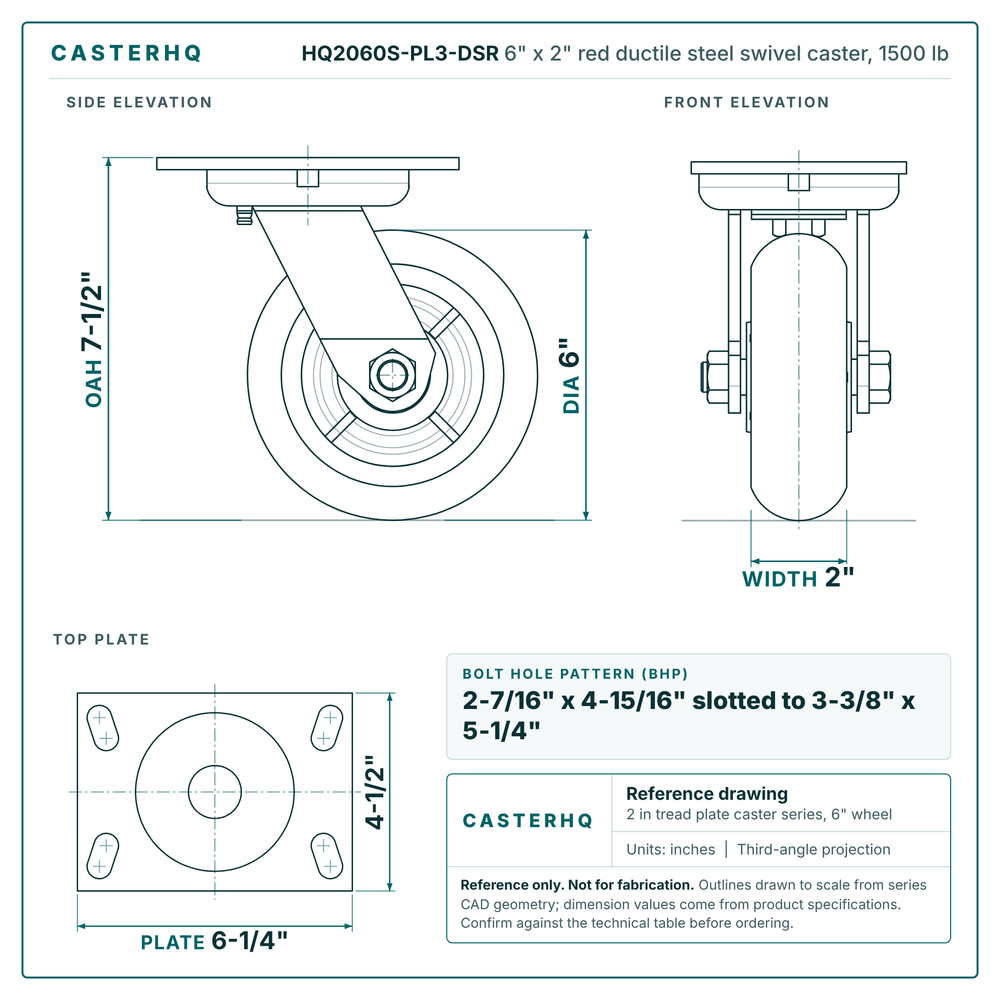

Technical Specs

Wheel Diameter: 6"
Tread Width: 2"
Wheel Type: Ductile Steel
Load Capacity: 1,500 lbs
Overall Height: 7-1/2"
Swivel Radius: 4-3/4"
Wheel Color: Red

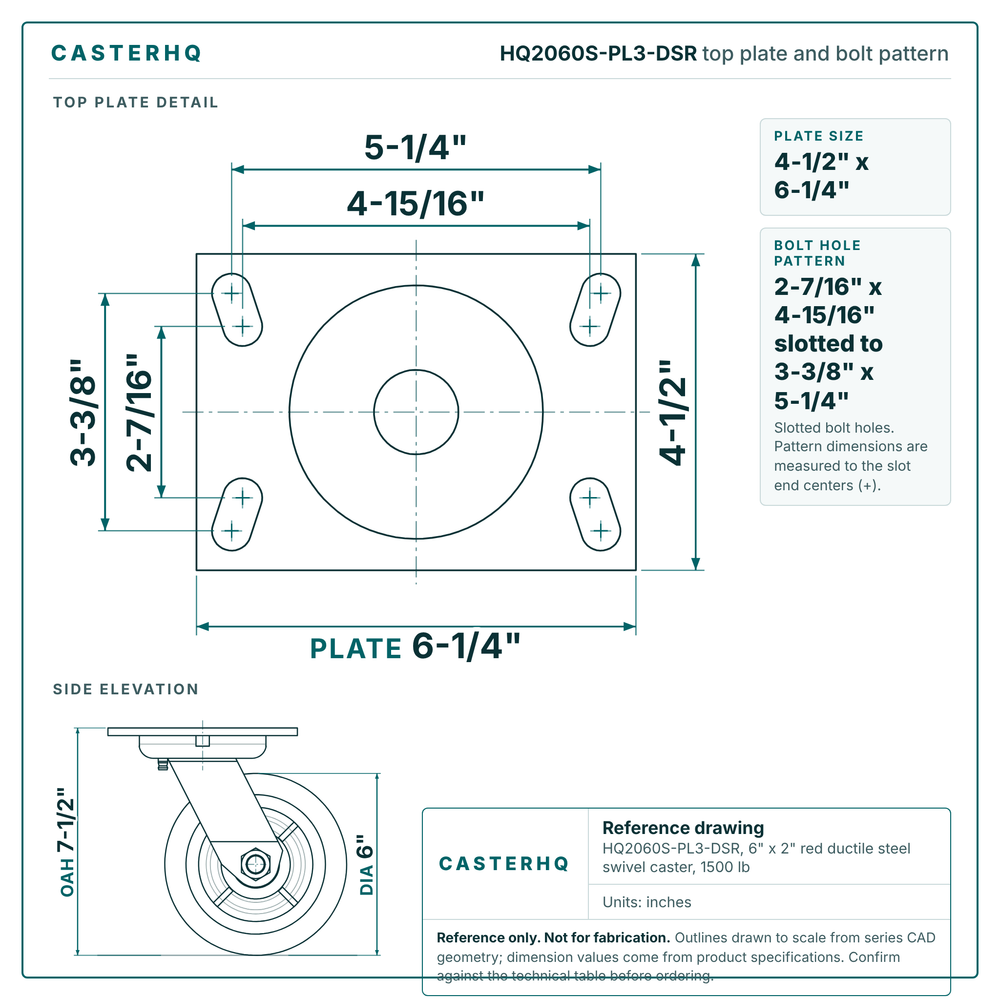

Plate Size: 4-1/2" x 6-1/4"

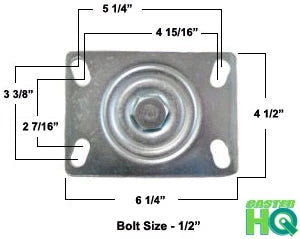

Bolt Hole Pattern: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Attaching Bolt Diameter: 1/2"

Key Features

Large Double Ball Raceway and Top Plate
Zine Plated Finish
1/4" Cold Forged Steel Top Plate & Yoke Legs
3/4" Diameter heat treated kingpin and nut
1/2" Diameter zerk axle and lock nut
Grease Fitting in Swivel Raceway and Zerk Axle
