Ductile Steel Casters · 3,500 lb

Plate sizes: 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 6, 8, 10, 12 inTread: 3 inCapacity: up to 3,500 lb
Match a 5-1/4 x 7-1/4 top plate when bolting casters under heavy warehouse carts, die carts, and plant fixtures. Catalog chips cover wheel diameters 6, 8, 10, 12 in, steel treads, and capacities 3,500 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Larger plates spread bolt stress on thick frames under continuous tow abuse. These heavy-duty options cover everyday heavy warehouse carts, die carts, and plant fixtures without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

3500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Ductile Steel Swivel Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Ductile Steel Swivel Caster – 3500 lb
Part # 90-S-830-DS-06
from $523.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 8"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Ductile Steel Swivel Caster...
Shop Product
3500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Ductile Steel Swivel Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Ductile Steel Swivel Caster – 3500 lb
Part # 90-S-630-DS-06
from $357.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 6"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Ductile Steel Swivel Caster...
Shop Product
3500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Ductile Steel Swivel Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Ductile Steel Swivel Caster – 3500 lb
Part # 90-S-1230-DS-06
from $624.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 12"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Ductile Steel Swivel Caster...
Shop Product
3500 lbs
TieredPricing
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Ductile Steel Swivel Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Ductile Steel Swivel Caster – 3500 lb
Part # 90-S-1030-DS
from $624.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 10"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Ductile Steel Swivel Caster...
Shop Product
3500 lbs
TieredPricing

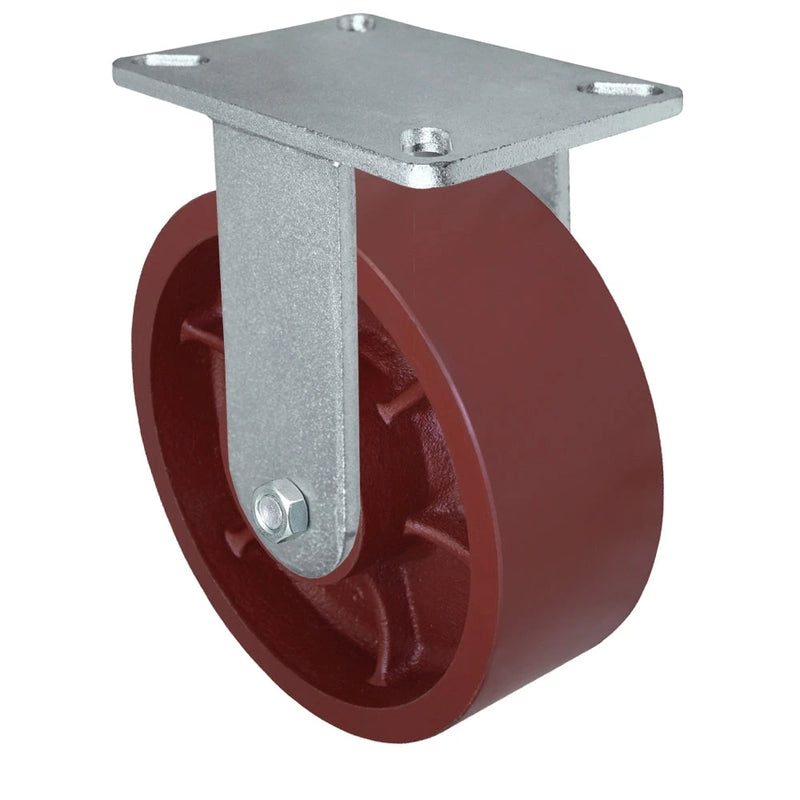

Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Ductile Steel Rigid Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
8" x 3" Ductile Steel Rigid Caster – 3500 lb
Part # 90-R-830-DS-06
from $353.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 8"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 10-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 8" x 3" Ductile Steel Rigid Caster...
Shop Product
3500 lbs
TieredPricing

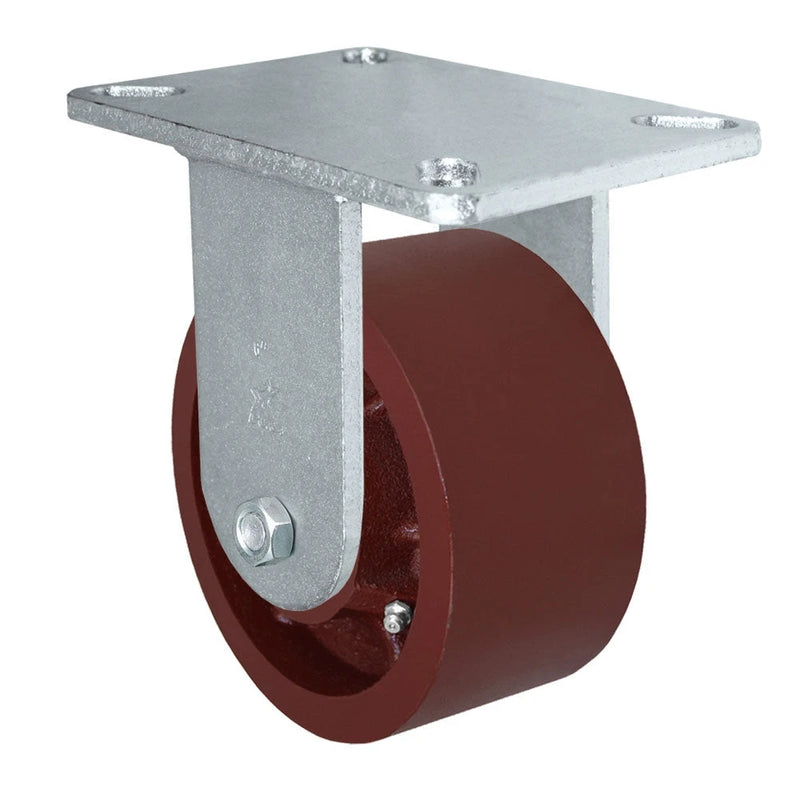

Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Ductile Steel Rigid Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
6" x 3" Ductile Steel Rigid Caster – 3500 lb
Part # 90-R-630-DS-06
from $257.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 6"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 8"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 6" x 3" Ductile Steel Rigid Caster...
Shop Product
3500 lbs
TieredPricing

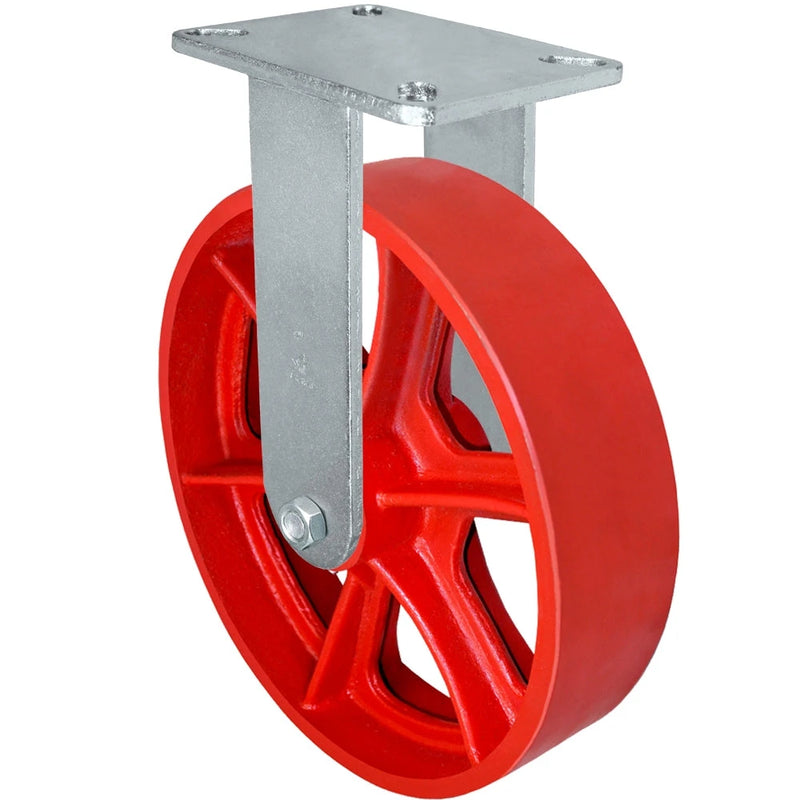

Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Ductile Steel Rigid Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Ductile Steel Rigid Caster – 3500 lb
Part # 90-R-1230-DS-06
from $504.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 12"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 15-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 12" x 3" Ductile Steel Rigid Caster...
Shop Product
3500 lbs
TieredPricing

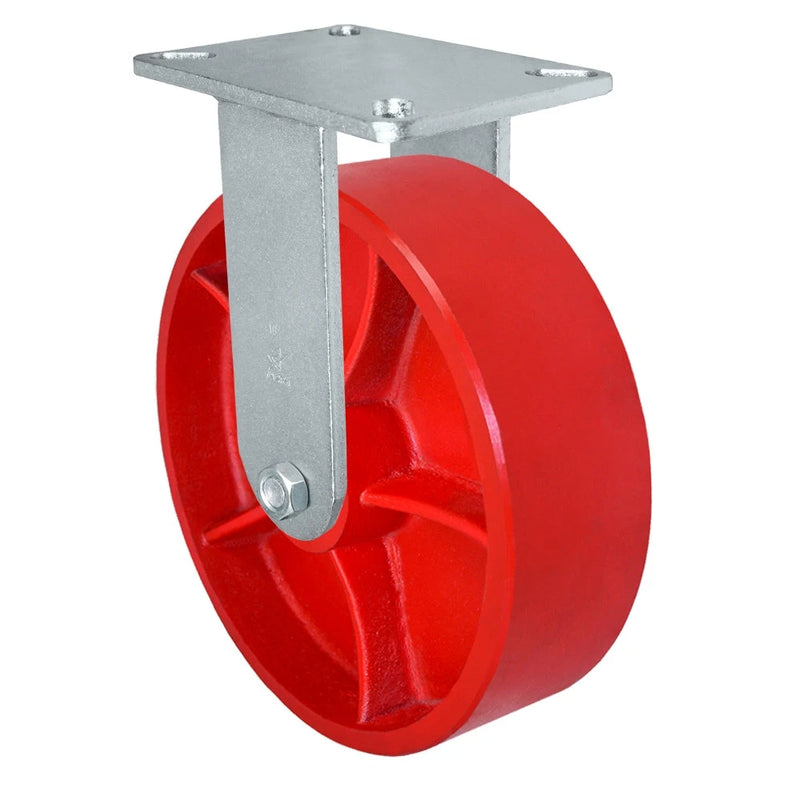

Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Ductile Steel Rigid Caster - 3500 lb Capacity, 5-1/4" x 7-1/4" Top Plate Durastar
Ships in 1-3 Business Days
10" x 3" Ductile Steel Rigid Caster – 3500 lb
Part # 90-R-1030-DS
from $504.00
Volume pricing available
Ductile IronPlate
Load rating
3500 lbs
Diameter 10"
Capacity 3500 lbs
Wheel Ductile Iron
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 3"
Height 12-1/2"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Core Steel
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Xtreme Heavy Duty 90 Series - 10" x 3" Ductile Steel Rigid Caster...
Shop Product
