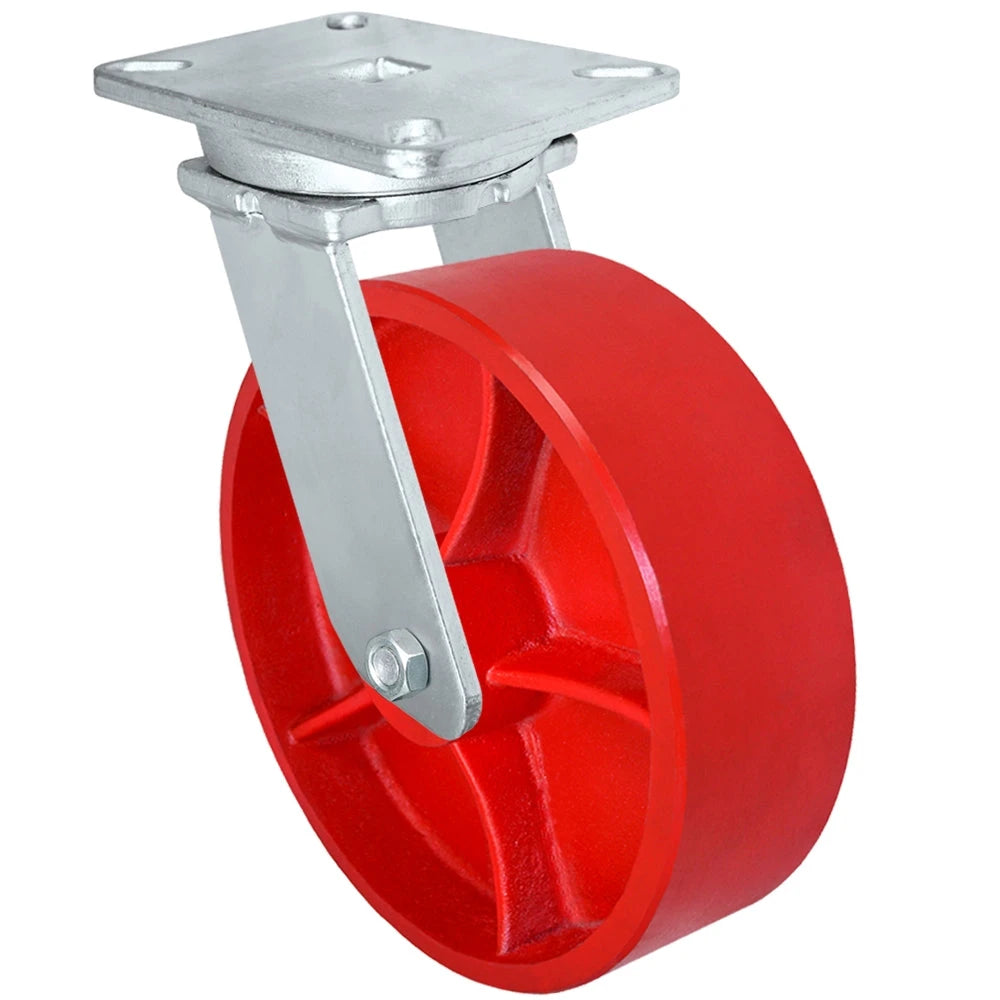

The Durastar 90 Series 12" x 3" ductile steel swivel caster is rated 3,500 lb per caster. It is a steel wheel for heavy loads, hot areas and rough floors, where a softer tread would wear fast or soften in the heat.
| Capacity | 3,500 lb per caster |
|---|---|
| Wheel | 12" x 3" ductile steel |
| Overall height | 15-1/2" |
| Swivel radius | 8-1/2" |
| Top plate | 5-1/4" x 7-1/4" |
| Bolt holes | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8", 1/2" bolts |
| Rig | Zinc plated steel |
| Temperature range | -45°F to 800°F |
| Part number | 90-S-1230-DS-06 |
Choose roller bearings or double groove precision bearings, and add a face contact brake, a 4 position swivel lock, or both, from the selectors above.
Good fit: Worn concrete, steel plate and grating; carts near ovens and heat treat lines; floors with chips, slag or debris.
Poor fit: Epoxy, sealed or polished concrete, and work areas where noise matters. A steel wheel is loud and can mark coated floors. For those floors, compare the polyurethane on steel version in the same plate size.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
| If you need | Choose | Why |
|---|---|---|
| Fixed direction on the same cart | 90 Series ductile steel rigid | Same wheel, plate and 15-1/2" height |
| Same rating, gentler on floors | 90 Series polyurethane on steel swivel | 3,500 lb, same plate and height |
| Quieter, lighter loads | 90 Series rubber on steel swivel | 1,300 lb, same plate and height |
Sizing rule: Divide the heaviest loaded weight by 3, not 4. On an uneven floor one caster is often carrying little or nothing. By that rule, four of these casters suit loads up to 10,500 lb.
This 12" x 3" Ductile Steel Swivel Caster – 3500 lb is rated to 3500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Ductile Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

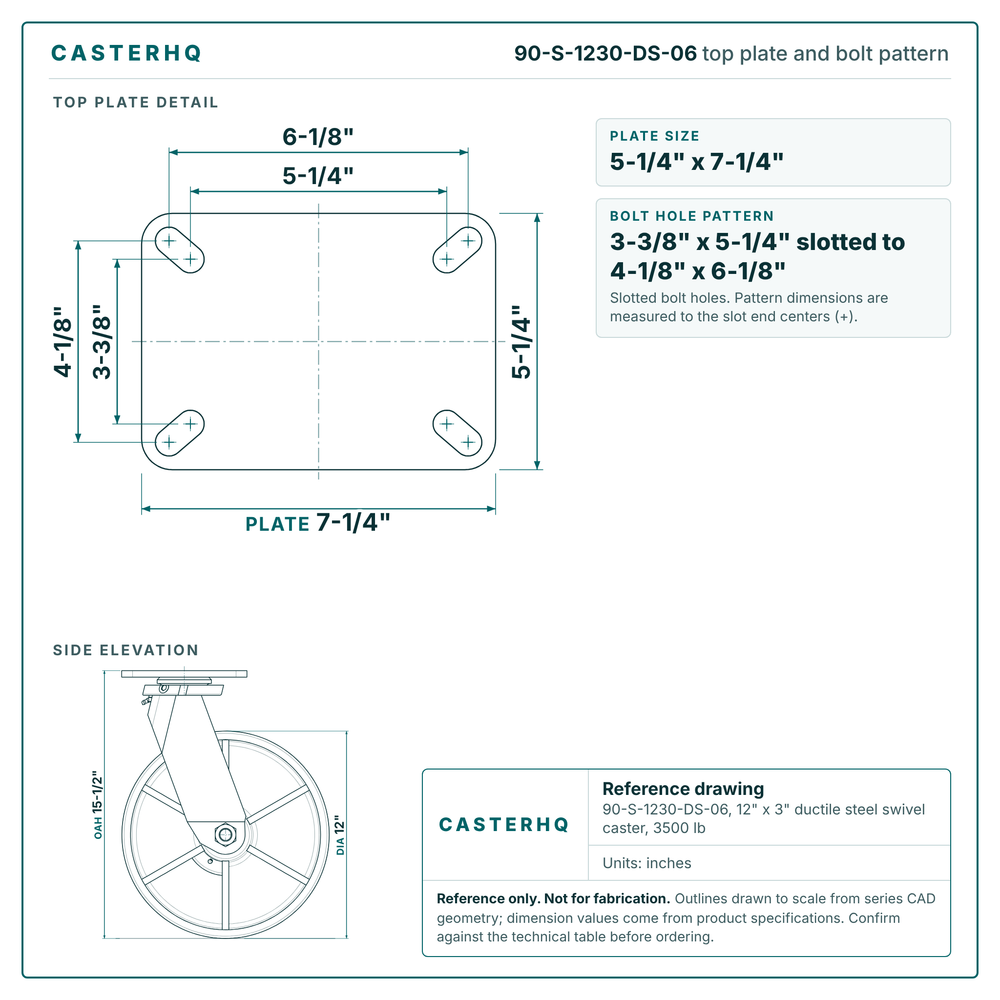

This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 800°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Ductile Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 15-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$624.00
| Identification | |
|---|---|
| Part Number / SKU | 90-S-1230-DS-06 |
| Product Series | Durastar 90 Series |
| Core | |
| Load Capacity | 3500 lbs |
| Wheel Diameter | 12" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 15-1/2" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 8-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Ductile Iron |
| Wheel Core Material | Steel |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -45°F to 800°F |

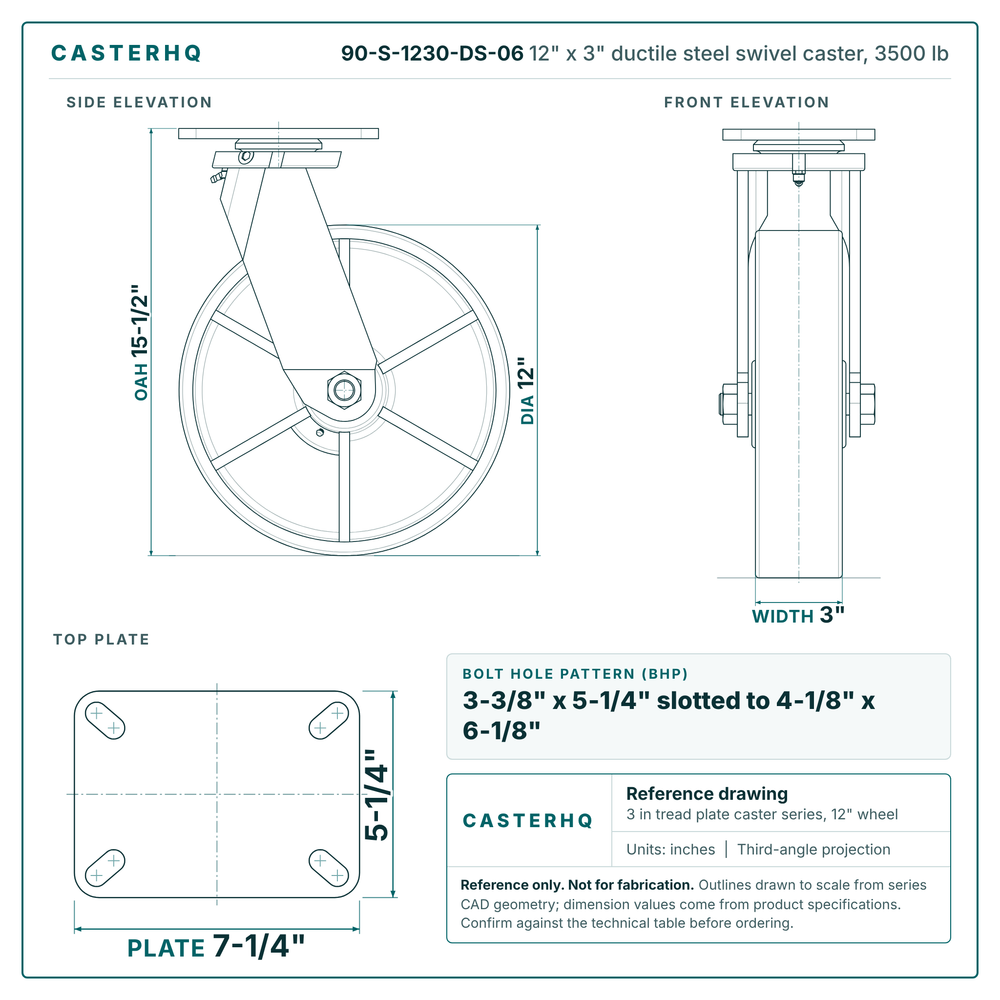

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 3" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2500 lbsLighter duty | 12" × 3"Polyurethane | Swivel | 13-1/2" | $177.00 | View → | |
| 2500 lbsLighter duty | 12" × 3"Polyurethane | Swivel | 13-1/2" | $187.00 | View → | |
| 3500 lbs | 12" × 3"Ductile Iron | Swivel | 15-1/2" | $624.00 | Viewing | |
| 3500 lbsSame capacity | 12" × 3"Phenolic | Rigid | 13-1/2" | $158.00 | View → | |
| 6000 lbsHeavier duty | 12" × 3"Polyurethane | Rigid | 15-1/2" | $599.00 | View → |
