All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.
Match the stem: type, diameter, thread and length. How to measure a stem →

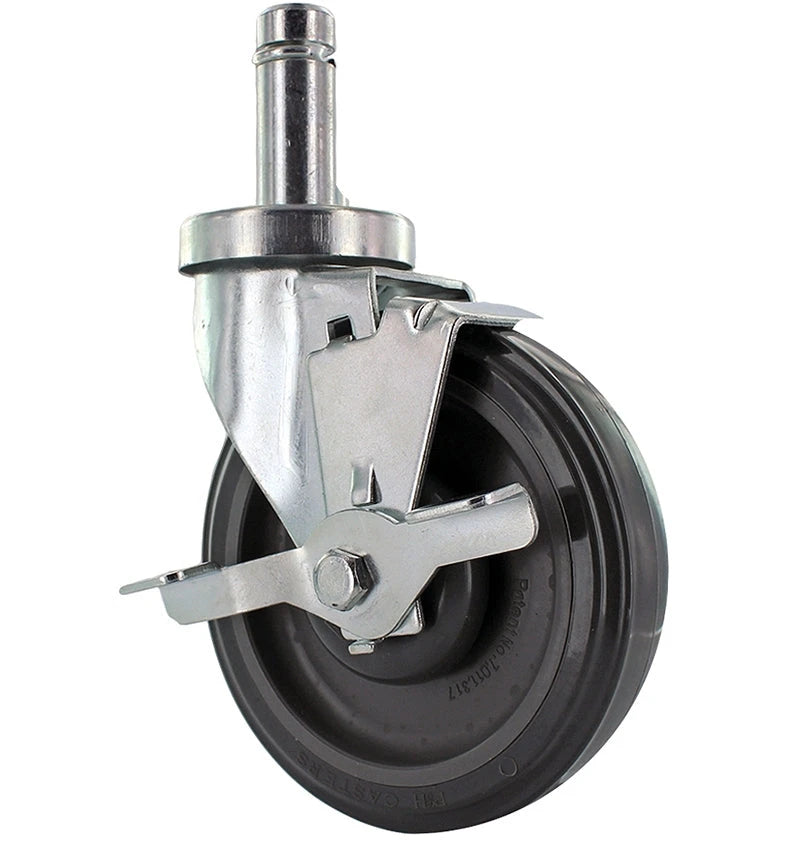

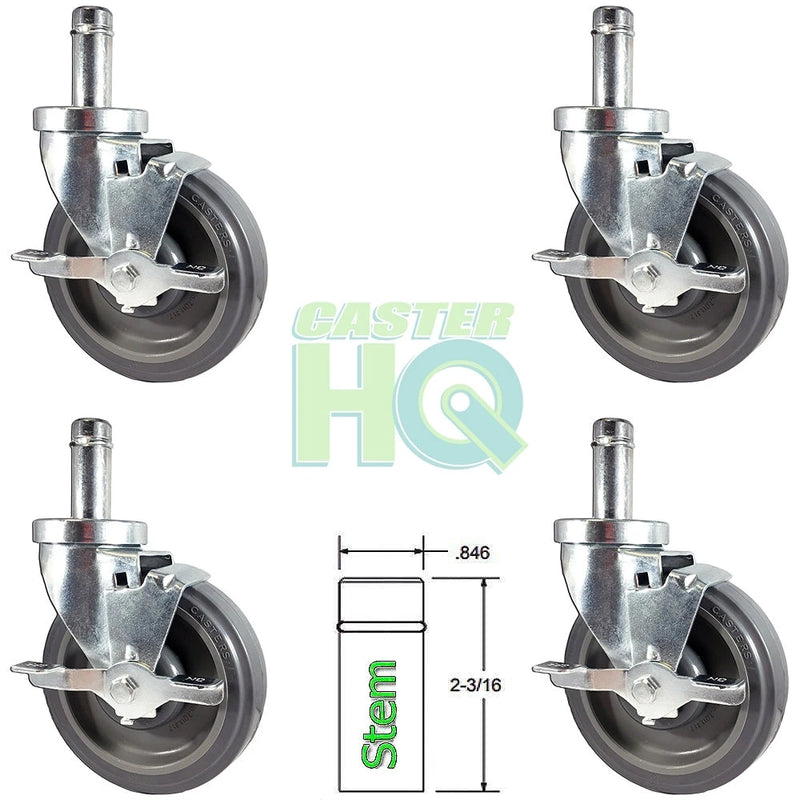

Grip ring stem casters on a 7/16 x 1-3/8 in stem, with 3, 4 and 5 in wheels in polyurethane, rubber, nylon, phenolic, polyolefin and semi-steel, rated 225 to 350 lb each.




| Wheel | Listed ratings | Character |
|---|---|---|
| Polyurethane, premium and solid polyurethane | 275 to 350 lb | Quiet, durable, floor-friendly |
| Gray rubber | 225 to 315 lb | Softest and quietest |
| Hard rubber | 275 to 300 lb | Firmer, low cost |
| Polyolefin | 250 to 300 lb | Light, resists water and many chemicals |
| Nylon and phenolic | 300 to 350 lb | Hard, easy rolling on smooth floors |
| Semi-steel | 350 lb | Rough floors and debris |
From product fields [S1].
More: 7/16 grip ring stem casters and light duty casters.

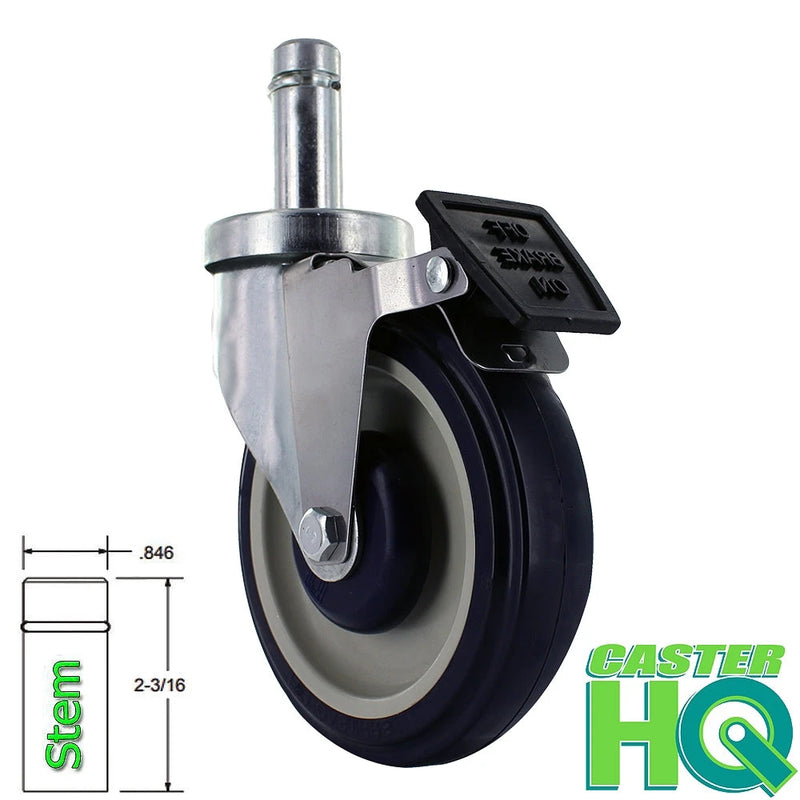

A 7/16 x 1-3/8 in grip ring stem.
225 to 350 lb each, depending on wheel.
Gray rubber, rated 225 to 315 lb.
Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com
