Polyurethane Casters · 1,200–2,000 lb

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4, 5, 6, 8 inTread: 2 inCapacity: up to 2,000 lb

Casters on the 4 x 4-1/2 plate pattern suit chemical, food-contact, and washdown carts. You will see wheel diameters 4, 5, 6, 8 in, polyurethane and nylon treads, and capacities 1,200 to 2,000 lb across the SKUs listed below. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. Larger plates spread bolt stress on thick frames under continuous tow abuse.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1250 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 5" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Swivel Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyurethane on Nylon Swivel Caster – 1250 lb

Part # 34-S-520-HU-03

from $38.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1250 lbs

Diameter 5"

Capacity 1250 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 5" x 2" Heavy Duty Solid Polyurethane...

Shop Product

1250 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 6" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Swivel Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyurethane on Nylon Swivel Caster – 1250 lb

Part # 34-S-620-HU-03

from $39.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1250 lbs

Diameter 6"

Capacity 1250 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 6" x 2" Heavy Duty Solid Polyurethane...

Shop Product

1250 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 5" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Rigid Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

5" x 2" Polyurethane on Nylon Rigid Caster 4" x 4-1/2" Plate – 1250 lb

Part # 34-R-520-HU-03

from $36.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1250 lbs

Diameter 5"

Capacity 1250 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 6-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 5" x 2" Heavy Duty Solid Polyurethane...

Shop Product

1250 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 8" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Swivel Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyurethane on Nylon Swivel Caster – 1250 lb

Part # 34-S-820-HU-03

from $41.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1250 lbs

Diameter 8"

Capacity 1250 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 8" x 2" Heavy Duty Solid Polyurethane...

Shop Product

1200 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 4" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Swivel Caster - 1200 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyurethane on Nylon Swivel Caster – 1200 lb · DuraStar 34 Series

Part # 34-S-420-HU-03

from $36.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1200 lbs

Diameter 4"

Capacity 1200 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Swivel

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 4" x 2" Heavy Duty Solid Polyurethane...

Shop Product

2000 lbs

TieredPricing

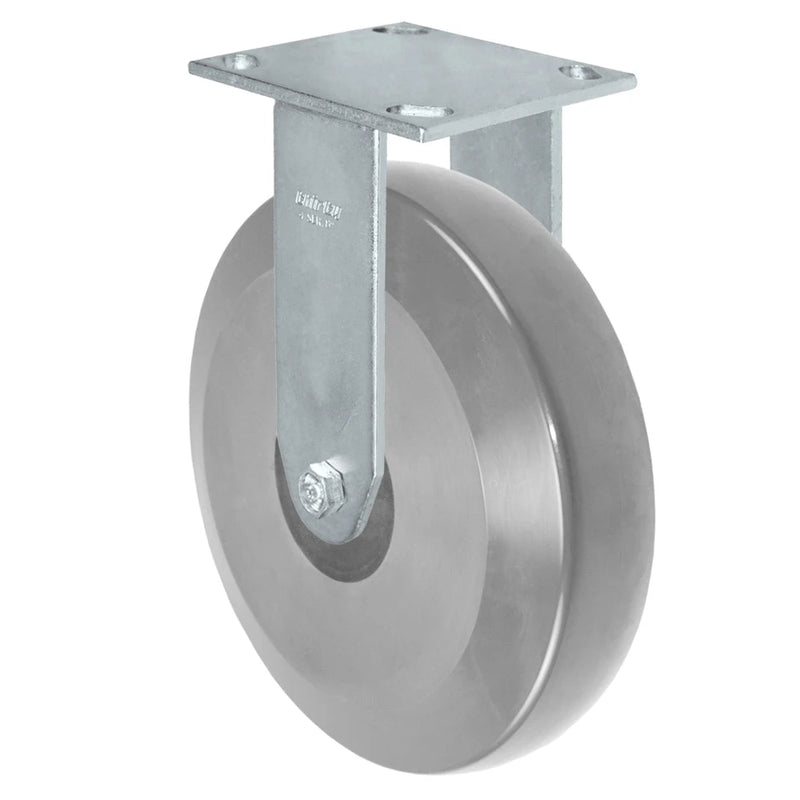

Durastar Medium Heavy Duty 34 Series - 8" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Rigid Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

8" x 2" Polyurethane on Nylon Rigid Caster – 2000 lb

Part # 34-R-820-HU-03

from $40.00

Volume pricing available

Solid PolyurethanePlate

Load rating

2000 lbs

Diameter 8"

Capacity 2000 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 9-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

40 Series Rigid Caster – 8" x 2" – Heavy Duty Solid Polyurethane on...

Shop Product

1800 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 6" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Rigid Caster - 1250 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

6" x 2" Polyurethane on Nylon Rigid Caster – 4" x 4-1/2" Plate – 1800 lb

Part # 34-R-620-HU-03

from $37.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1800 lbs

Diameter 6"

Capacity 1800 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 7-1/2"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

40 Series Rigid Caster – 6" x 2" – Heavy Duty Solid Polyurethane on...

Shop Product

1200 lbs

TieredPricing

Durastar Medium Heavy Duty 34 Series - 4" x 2" Heavy Duty Solid Polyurethane on Glass-filled Nylon Rigid Caster - 1200 lb Capacity, & 4" x 4-1/2" Top Plate Durastar

Ships in 1-3 Business Days

4" x 2" Polyurethane on Nylon Rigid Caster – 1200 lb

Part # 34-R-420-HU-03

from $35.00

Volume pricing available

Solid PolyurethanePlate

Load rating

1200 lbs

Diameter 4"

Capacity 1200 lbs

Wheel Solid Polyurethane

Mount Plate

Plate Size 4" x 4-1/2"

More Details Less Details

Width 2"

Height 5-5/8"

Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"

Temp Range Up to 180°F

Rig Type Rigid

Brake No Brake

Frame Zinc Plated Steel

Durastar Medium Heavy Duty 34 Series - 4" x 2" Heavy Duty Solid Polyurethane...

Shop Product

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
