Maintenance Free - Ergo Extreme Casters

Diameter: 4 to 8 inTread: 2 inCapacity: 750 to 1,200 lb per casterPlate sizes: 4-1/2 x 6-1/4
This page lists nine polyurethane casters with 4 to 8 in wheels, rated 750 to 1,200 lb each, made by CasterHQ and Hamilton. Most mount on a 4-1/2 x 6-1/4 in plate, and you can pick swivel or rigid and without brakes. You will find a Hamilton Ergo-X2 4 x 2 in Duralast poly swivel caster rated 750 lb and an 8 x 2 in rigid maintenance free caster rated 1,200 lb here.
1200 lbs
TieredPricing
8" x 2" Maintenance Free Swivel Caster - 1,200 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Ergo Extreme Swivel Sealed Caster – 1,200 lb
Part # CB-EE82
from $234.00
Volume pricing available
PolyurethanePlate
Load rating
1200 lbs
Size8" x 2"
Capacity1200 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 10-1/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Maintenance Free Swivel Caster - 1,200 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
900 lbs
TieredPricing
5" x 2" Maintenance Free Rigid Caster - 900 lbs Capacity CasterHQ
In Stock · Same/Next Day
5" x 2" Ergo Extreme Rigid Sealed Caster – 900 lb
Part # CB-EE52R
from $93.00
Volume pricing available
PolyurethanePlate
Load rating
900 lbs
Size5" x 2"
Capacity900 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Maintenance Free Rigid Caster - 900 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
900 lbs
TieredPricing
4" x 2" Maintenance Free Rigid Caster - 900 lbs Capacity CasterHQ
In Stock · Same/Next Day
4" x 2" Polyurethane Rigid Maintenance Free Caster – 900 lb
Part # CB-EE42R
from $73.00
Volume pricing available
PolyurethanePlate
Load rating
900 lbs
Size4" x 2"
Capacity900 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 5-1/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
4" x 2" Maintenance Free Rigid Caster - 900 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
900 lbs
TieredPricing
4" x 2" Maintenance Free Swivel Caster - 900 lbs Capacity CasterHQ
In Stock · Same/Next Day
4" x 2" Polyurethane Swivel Maintenance Free Caster – 900 lb
Part # CB-EE42
from $152.00
Volume pricing available
PolyurethanePlate
Load rating
900 lbs
Size4" x 2"
Capacity900 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 5-1/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
4" x 2" Maintenance Free Swivel Caster - 900 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
750 lbs
TieredPricing

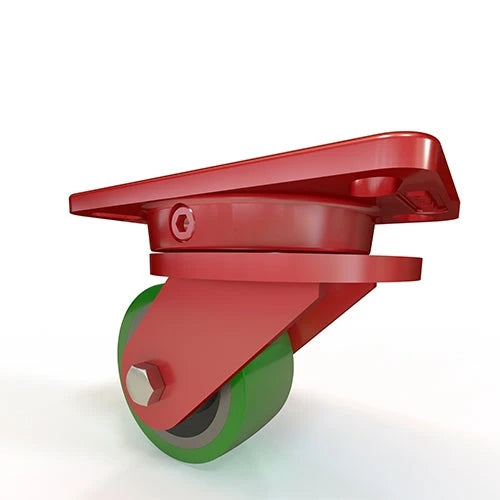

Hamilton Ergo-X2 Swivel Caster with 4" x 2" Duralast Polyurethane (95A) on Cast Iron Wheel - 750 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton Ergo-X2 4" x 2" Duralast Poly Swivel Caster – 750 lb
Part # S-ERGO-4DB
from $642.00
Volume pricing available
PolyurethanePlate
Load rating
750 lbs
Size4" x 2"
Capacity750 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/2"
TypeSwivel
More Details Less Details
Width 2"
Height 5.625"
Bolt Pattern 2-7/16" x 4-15/16"
Core Cast Iron
Temp Range -5°F to 160°F
Rig Type Swivel
Brake No Brake
Frame Crimson Powder
Hamilton Ergo-X2 Swivel Caster with 4" x 2" Duralast Poly on Cast Iron Wheel...
Shop Product
1200 lbs
TieredPricing
8" x 2" Maintenance Free Rigid Caster - 1,200 lbs Capacity CasterHQ
In Stock · Same/Next Day
8" x 2" Rigid Maintenance Free Caster – 1,200 lb
Part # CB-EE82R
from $154.00
Volume pricing available
PolyurethanePlate
Load rating
1200 lbs
Size8" x 2"
Capacity1200 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 10-1/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Maintenance Free Rigid Caster - 1,200 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
1000 lbs
TieredPricing

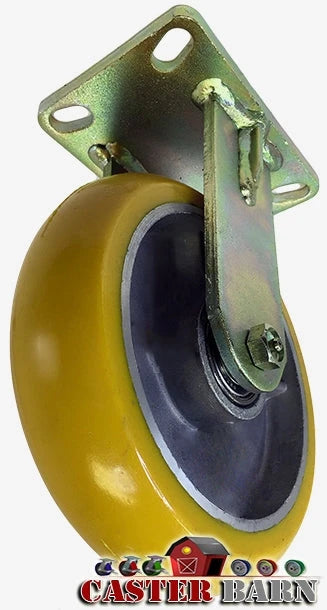

6" x 2" Maintenance Free Rigid Caster - 1,000 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Ergo Extreme Rigid Maintenance Free Caster – 1,000 lb
Part # CB-EE62R
from $113.00
Volume pricing available
PolyurethanePlate
Load rating
1000 lbs
Size6" x 2"
Capacity1000 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Maintenance Free Rigid Caster - 1,000 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
1000 lbs
TieredPricing
6" x 2" Maintenance Free Swivel Caster - 1,000 lbs Capacity CasterHQ
In Stock · Same/Next Day
6" x 2" Ergo Extreme Swivel Caster – 1,000 lb
Part # CB-EE62
from $193.00
Volume pricing available
PolyurethanePlate
Load rating
1000 lbs
Size6" x 2"
Capacity1000 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Maintenance Free Swivel Caster - 1,000 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product
900 lbs
TieredPricing

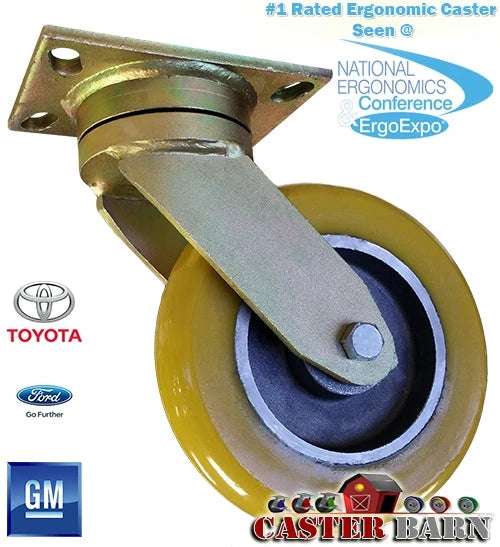

5" x 2" Maintenance Free Swivel Caster - 900 lbs Capacity CasterHQ
In Stock · Same/Next Day
5" x 2" Ergo Extreme Swivel Sealed Caster – 900 lb
Part # CB-EE52
from $172.00
Volume pricing available
PolyurethanePlate
Load rating
900 lbs
Size5" x 2"
Capacity900 lbs
WheelPolyurethane
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -40°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Maintenance Free Swivel Caster - 900 lbs CapacityCasterHQ Maintenance Free Ergo...
Shop Product

Maintenance Free | Ergo Extreme Casters

The Ergo Extreme maintenance-free swivel caster rig is available through Caster Barn, blowing the competition away! Unlike kingpin or kingpinless rigs, this maintenance-free swivel caster rig’s construction allows for even dispersion of load, in return, provides an incredibly dramatic effect in reducing push-pull force compared to any other Caster Rigs in existence!

The CB Ergo Extreme is ideal for industrial applications (such as automotive manufacturing) that require low manual push-pull force.

Some of our Customers that have switched to our Maintenance Free EE-Casters after extensive testing include; General Electric, Toyota, Ford, General Motors, Honda, Boeing, Lockheed Martin, and many more major Manufacturing plants where ergonomics is key in everyday operations.
