6" x 2" Maintenance Free Rigid Caster - 1,000 lbs Capacity

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CB-EE62R

Product Overview

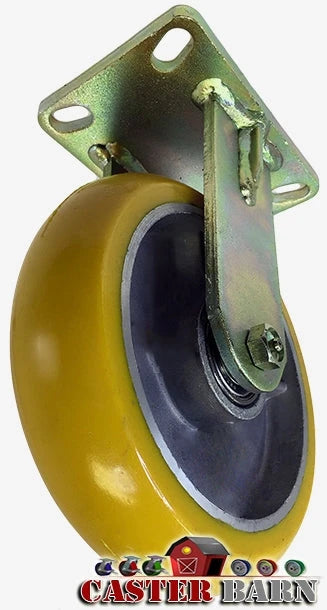

6" x 2" Maintenance Free Rigid Caster - 1,000 lbs Capacity


Caster Barns Maintenance Free Ergo Extreme Series industrial casters feature an ultra quiet design that eliminates swivel chatter for silent operation. It is designed utilizing a sealed tapered bearing in the upper raceway and hardened chrome steel ball bearings in the lower raceway with zero slack tolerances for continuous towing caster applications, demanding impact applications and durability due to the heavy duty construction.


Our Ergo Extreme (EE) Series is 100% maintenance free and requires zero lubrication. It offers up to a 2,500 pound capacity. The Yellow Zinc Chromate finish is standard for ultimate extended corrosion resistance as well to show its superiority allowing it to stand out for easier differentiation.

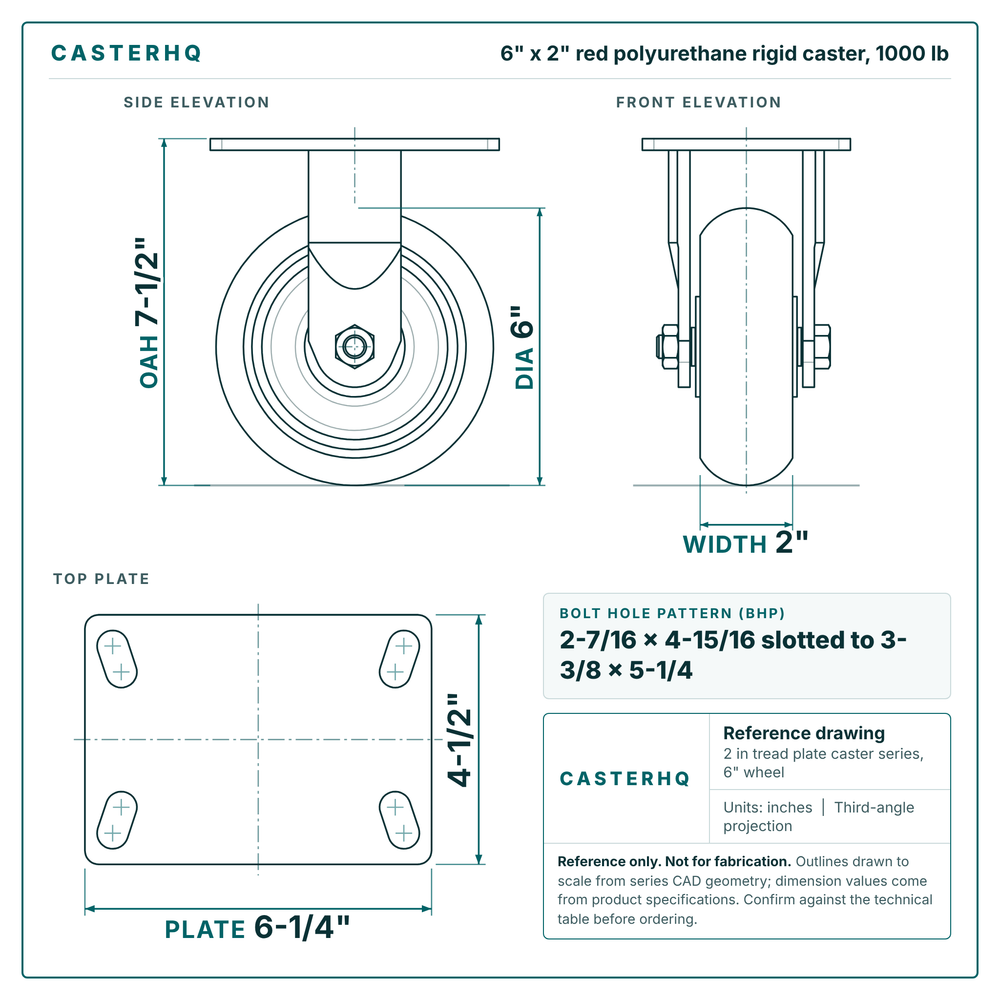

Technical Specs
Diameter: 6"
Tread Width: 2"

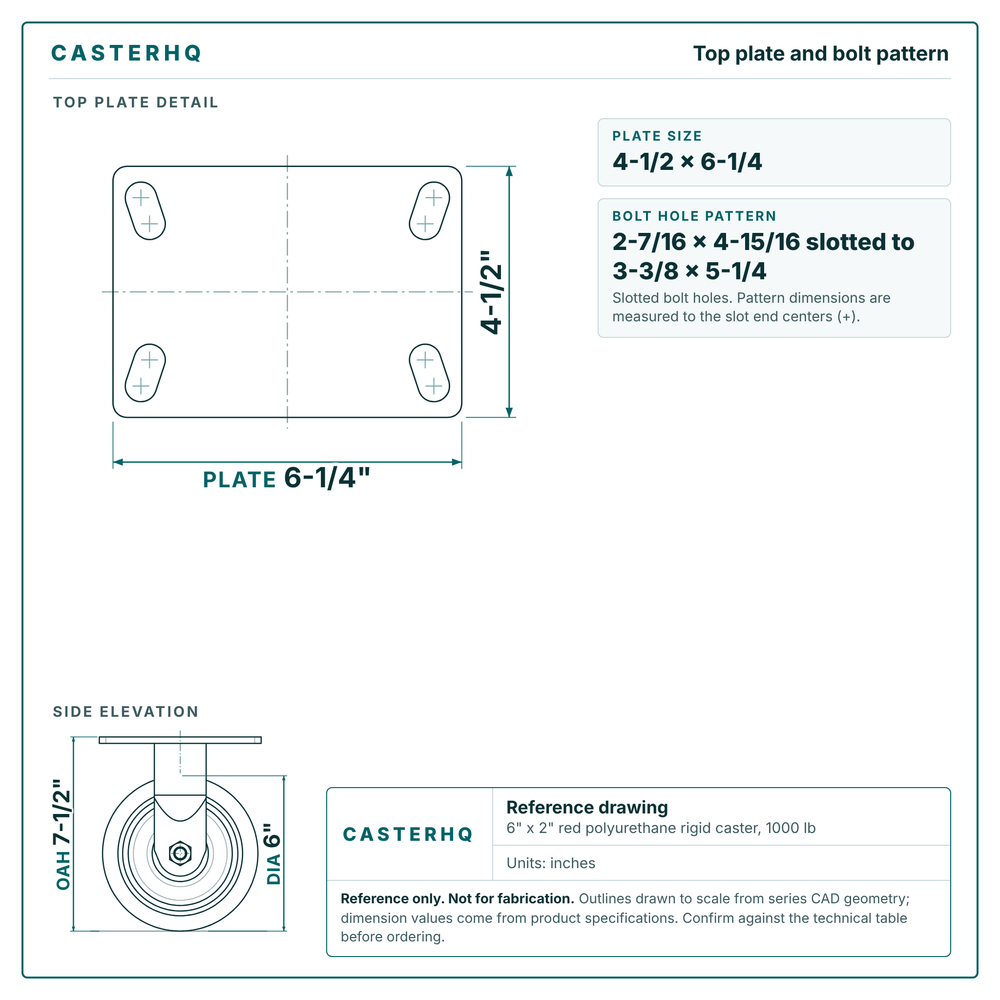

Plate Size: 4-1/2" x 6-1/4"
Bolt Hole: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Mounting Bolt Size: 1/2" (Not Included)
Load Capacity: 1,000 Lbs Per Caster
Overall Height: 7-1/2"
Key Features
  • Tapered Bearings in Upper Raceway to handle Axial Loads while operating at high speeds
  • Ball Thrust Bearings in Lower Raceway to handle combined heavy radial and thrust loads
  • Extended Swivel Radius reduces the effort to start and swivel by half the force of a standard caster
  • 3/8" Thick top plate with legs formed from 5/16" steel
  • Designed for Ultimate solution of traditional casters with kingpin being loosened from lateral force
  • Yellow Zinc pated to distribguish its superiority
  • Zero Friction Swivel Design to provde the best Push/Pull force in the Caster Industry
