All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Stevens ESCORT SRT-8 steel appliance hand truck, red steel frame, black uprights, strap and footplate

Safe & Appliance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

12" x 3" Phenolic Casters · 2,000-2,500 lb

Diameter: 6 to 12 inTread: 3 inCapacity: 2,000 to 2,500 lb per casterPlate sizes: 4-1/2 x 6-1/4
The three phenolic casters here come from Durastar with 6 to 12 in wheels, rated 2,000 to 2,500 lb each. Every one uses a 4-1/2 x 6-1/4 in top plate, in both swivel and rigid, and none has a brake. Two examples are a 6 x 3 in phenolic rigid caster rated 2,000 lb and a 12 x 3 in phenolic swivel caster rated 2,500 lb. Temperature ratings sit at Up to 250°F for most of the page.

Shop by type

1 type

Wheel = wheel diameter · capacity is per caster.

3 options in this exact size and spec. See all casters by load capacity and mount type › or call 844-439-4335 for a cross-reference.

2000 lbs
TieredPricing
Durastar Heavy Duty 60 Series - 6" x 3" Phenolic Rigid Caster - 2000 lb Capacity, 4-1/2" x 6-1/4" Top Plate | Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 3" Phenolic Rigid Caster – 2000 lb
Part # 60-R-630-PH-04
from $95.00
Volume pricing available
PhenolicPlate
Load rating
2000 lbs
Size6" x 3"
Capacity2000 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Heavy Duty 60 Series - 6" x 3" Phenolic Rigid Caster - 2000...
Shop Product
2500 lbs
TieredPricing

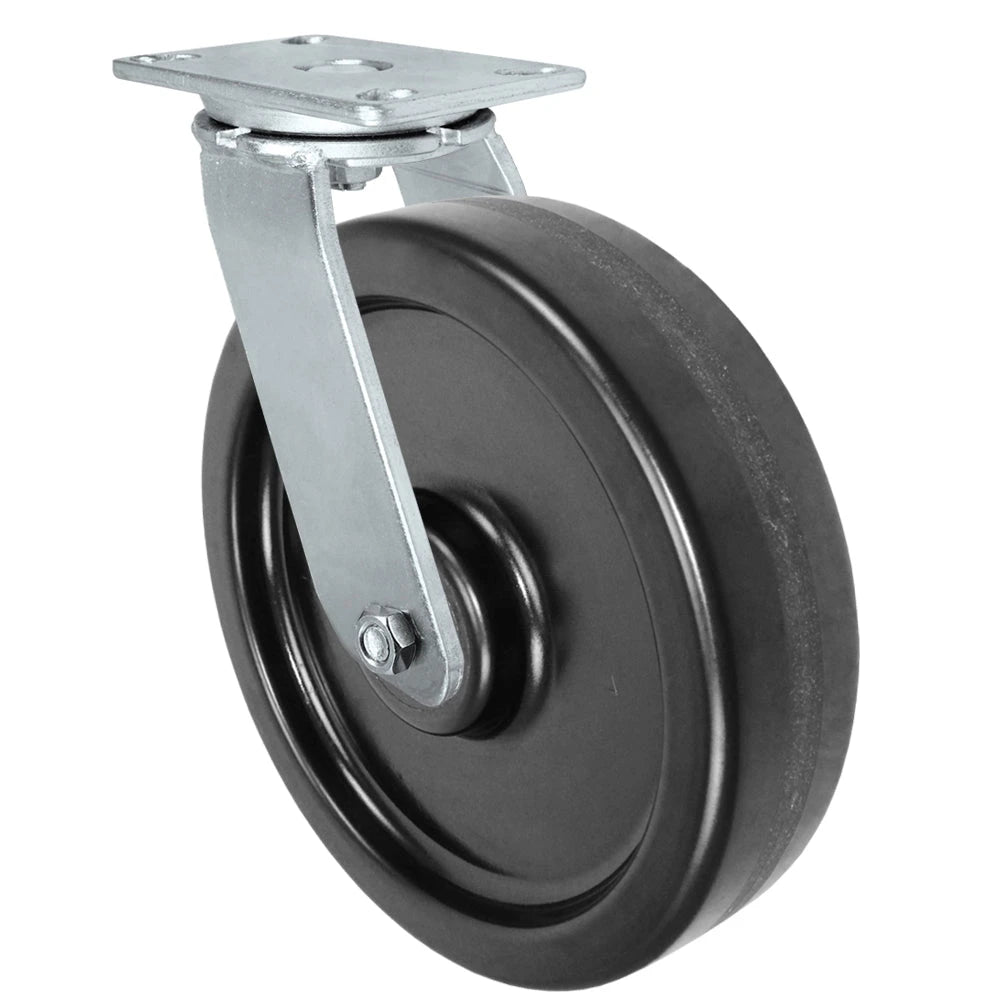

Durastar Heavy Duty 60 Series - 12" x 3" Phenolic Swivel Caster - 2500 lb Capacity, 4-1/2" x 6-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Phenolic Swivel Caster – 2500 lb
Part # 60-S-1230-PH-04
from $111.00
Volume pricing available
PhenolicPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 3"
Height 13-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Heavy Duty 60 Series - 12" x 3" Phenolic Swivel Caster - 2500...
Shop Product
2500 lbs
TieredPricing

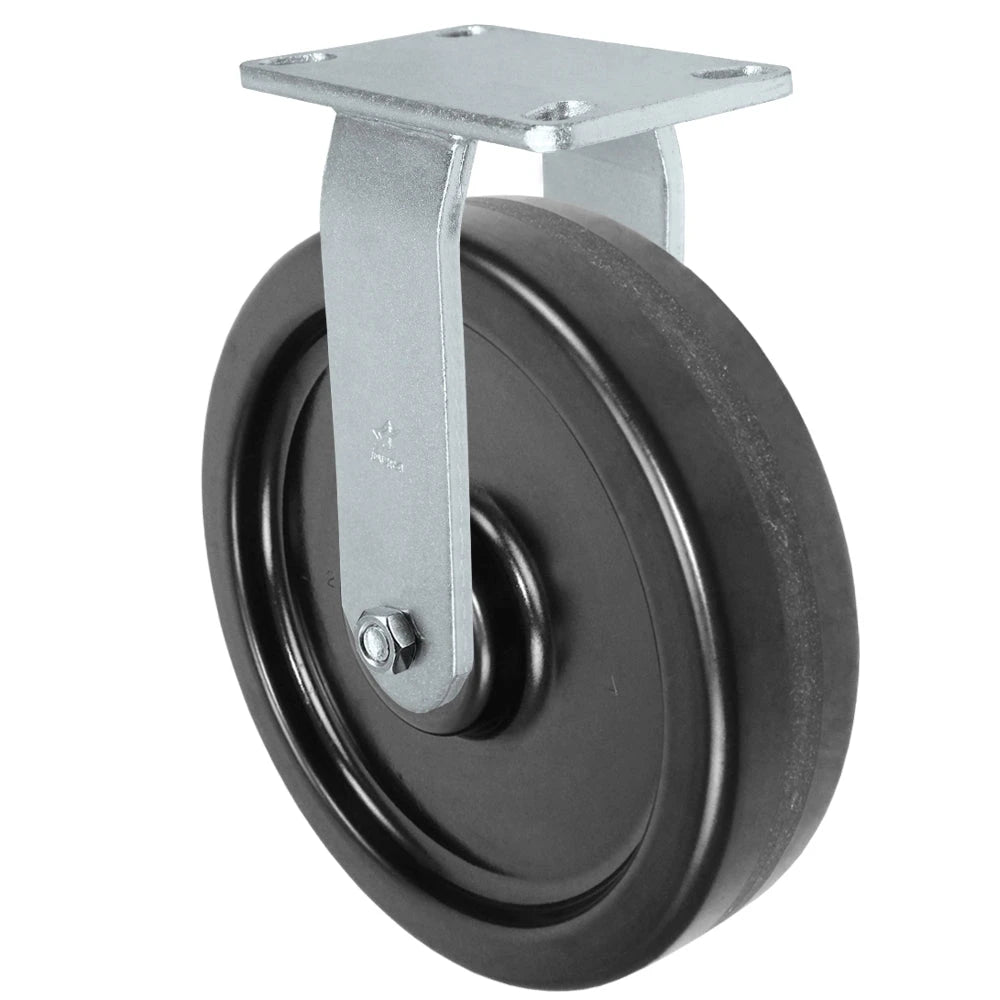

Durastar Heavy Duty 60 Series - 12" x 3" Phenolic Rigid Caster - 2500 lb Capacity, 4-1/2" x 6-1/4" Top Plate Durastar
Ships in 1-3 Business Days
12" x 3" Phenolic Rigid Caster – 2500 lb
Part # 60-R-1230-PH-04
from $115.00
Volume pricing available
PhenolicPlate
Load rating
2500 lbs
Size12" x 3"
Capacity2500 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 3"
Height 13-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Heavy Duty 60 Series - 12" x 3" Phenolic Rigid Caster - 2500...
Shop Product

Durastar Casters | Heavy Duty Top Plate Casters - 60 SERIES with Phenolic - PH Wheels

Product Features

  • Durable Wheel Construction: Phenolic - PH wheels provide a perfect balance of strength and cushioning, reducing noise and absorbing shock.
  • Heavy-Duty Load Capacity: Engineered to support substantial weight, making it ideal for industrial and commercial applications.
  • Top Plate Mounting: Secure top plate design ensures stable attachment, enhancing reliability in high-demand environments.
  • Floor Protection: Non-marking rubber minimizes floor damage, making it suitable for warehouses, manufacturing plants, and logistics hubs.
  • Versatile Applications: Perfect for material handling, transport carts, and heavy machinery requiring smooth and efficient mobility.

Experience superior durability and performance with the Durastar 60 SERIES Heavy Duty Top Plate Casters featuring Phenolic - PH wheels. Designed to withstand rigorous industrial environments, these casters offer exceptional weight capacity while maintaining smooth mobility across various surfaces. The rubber coating ensures a quieter, more cushioned ride, reducing noise pollution and vibrations in demanding workspaces.

Built for heavy-duty applications, these casters come equipped with a robust top plate mounting system, providing reliable attachment and enhanced stability. Whether navigating warehouse floors or maneuvering through distribution centers, the PH wheels deliver excellent traction while preserving floor integrity.

Ideal for industrial, manufacturing, and logistics settings, the Durastar 60 SERIES casters are crafted for efficiency and longevity. Their non-marking design prevents scuffing, making them a practical choice for both indoor and outdoor operations.

Upgrade to High-Performance Mobility

Enhance your operational efficiency with Durastar Heavy Duty Top Plate Casters. Designed for strength, stability, and smooth maneuverability, these casters provide the durability your industry demands.
