All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

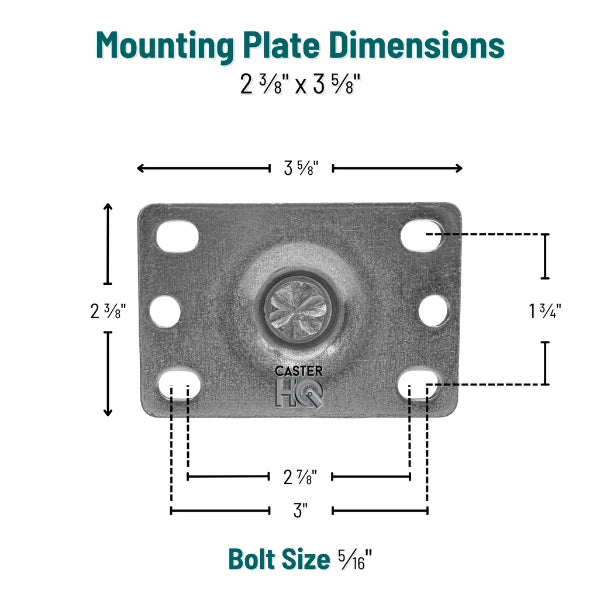

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Safe & Applicance Dollies

Safe & Applicance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

5" x 1-1/4" Polyolefin Casters · 250-325 lb

Plate sizes: 3-1/8 x 4-1/8Bolt holes: 2-3/8 x 3-3/8Diameter: 3, 4, 5 inTread: 1-1/4, 1-13/16 inCapacity: up to 325 lb
Casters on the 3-1/8 x 4-1/8 plate pattern suit light institutional and furniture-grade frames. Typical builds show wheel diameters 3, 4, 5 in, polyolefin treads, and capacities 250 to 325 lb. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

325 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Polyolefin Swivel Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyolefin Swivel Caster – 325 lb
Part # 24-S-514-PO-82
from $32.00
Volume pricing available
PolyolefinPlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Polyolefin Swivel Caster -...
Shop Product
300 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Polyolefin Swivel Caster - 300 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyolefin Swivel Caster – 300 lb · DuraStar 24 Series · Model 24-S-414-PO-82
Part # 24-S-414-PO-82
from $26.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Polyolefin Swivel Caster Product...
Shop Product
250 lbs
TieredPricing
Durastar 3" x 1-1/4" Polyolefin Swivel Caster - 250 Load Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyolefin Swivel Caster Top Plate – 250 lb · Model 24-S-314-PO-82
Part # 24-S-314-PO-82
from $14.00
Volume pricing available
PolyolefinPlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyolefin
Mount Plate
Plate Size 3-1/8" x 4-1/8"
More Details Less Details
Width 1-13/16"
Height 4-5/32"
Bolt Pattern 2-3/8" x 3-3/8"
Temp Range -45°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar 3" Polyolefin Swivel Caster with Customizable Top Plate 250 lbs Load Capacity |...
Shop Product
325 lbs
TieredPricing
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Polyolefin Rigid Caster - 325 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
5" x 1-1/4" Polyolefin Rigid Caster – 325 lb
Part # 24-R-514-PO-82
from $31.00
Volume pricing available
PolyolefinPlate
Load rating
325 lbs
Diameter 5"
Capacity 325 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 5" x 1-1/4" Polyolefin Rigid Caster -...
Shop Product
300 lbs
TieredPricing

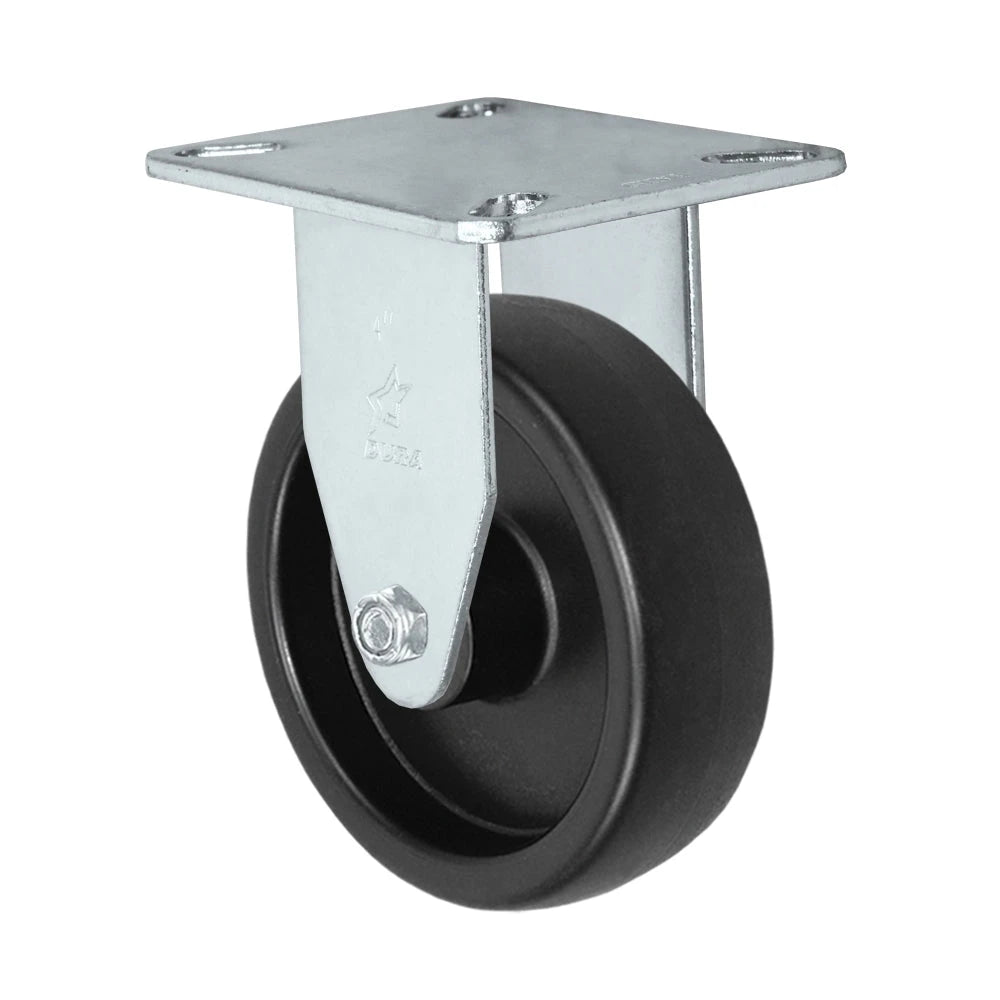

Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Polyolefin Rigid Caster - 300 lb Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
4" x 1-1/4" Polyolefin Rigid Caster – 300 lb · DuraStar 24 Series · Model 24-R-414-PO-82
Part # 24-R-414-PO-82
from $25.00
Volume pricing available
PolyolefinPlate
Load rating
300 lbs
Diameter 4"
Capacity 300 lbs
Wheel Polyolefin
Mount Plate
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Light Medium Duty 24 Series - 4" x 1-1/4" Polyolefin Rigid Caster Product...
Shop Product
250 lbs
TieredPricing
Durastar 3" x 1-1/4" Polyolefin Rigid Caster - 250 Load Capacity, Choose Top Plate Option Durastar
Ships in 1-3 Business Days
3" x 1-1/4" Polyolefin Rigid Caster – 250 lb
Part # 24-R-314-PO-82
$14.00
Volume pricing available
PolyolefinPlate
Load rating
250 lbs
Diameter 3"
Capacity 250 lbs
Wheel Polyolefin
Mount Plate
Plate Size 3-1/8" x 4-1/8"
More Details Less Details
Width 1-13/16"
Height 4-5/32"
Bolt Pattern 2-3/8" x 3-3/8"
Temp Range -45°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar 3" Polyolefin Rigid Caster with Customizable Top Plate 250 lbs Load Capacity |...
Shop Product
