The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

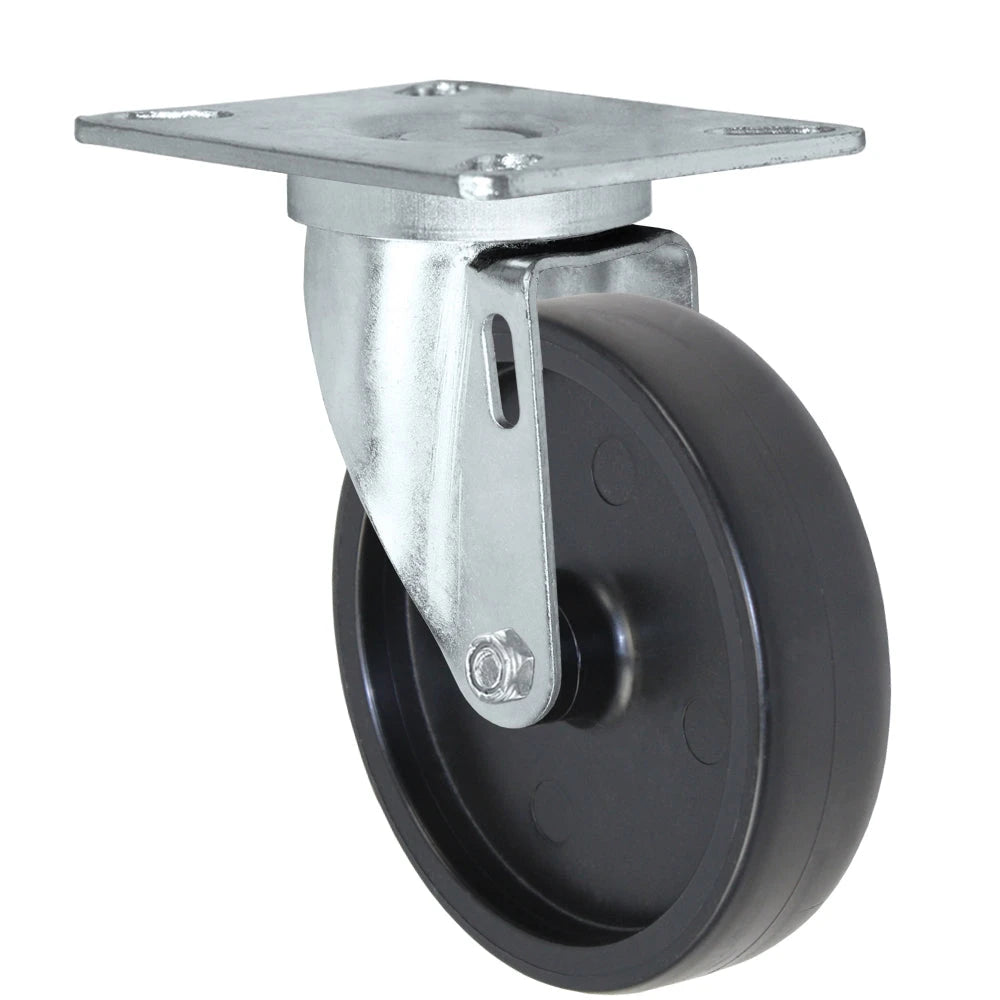

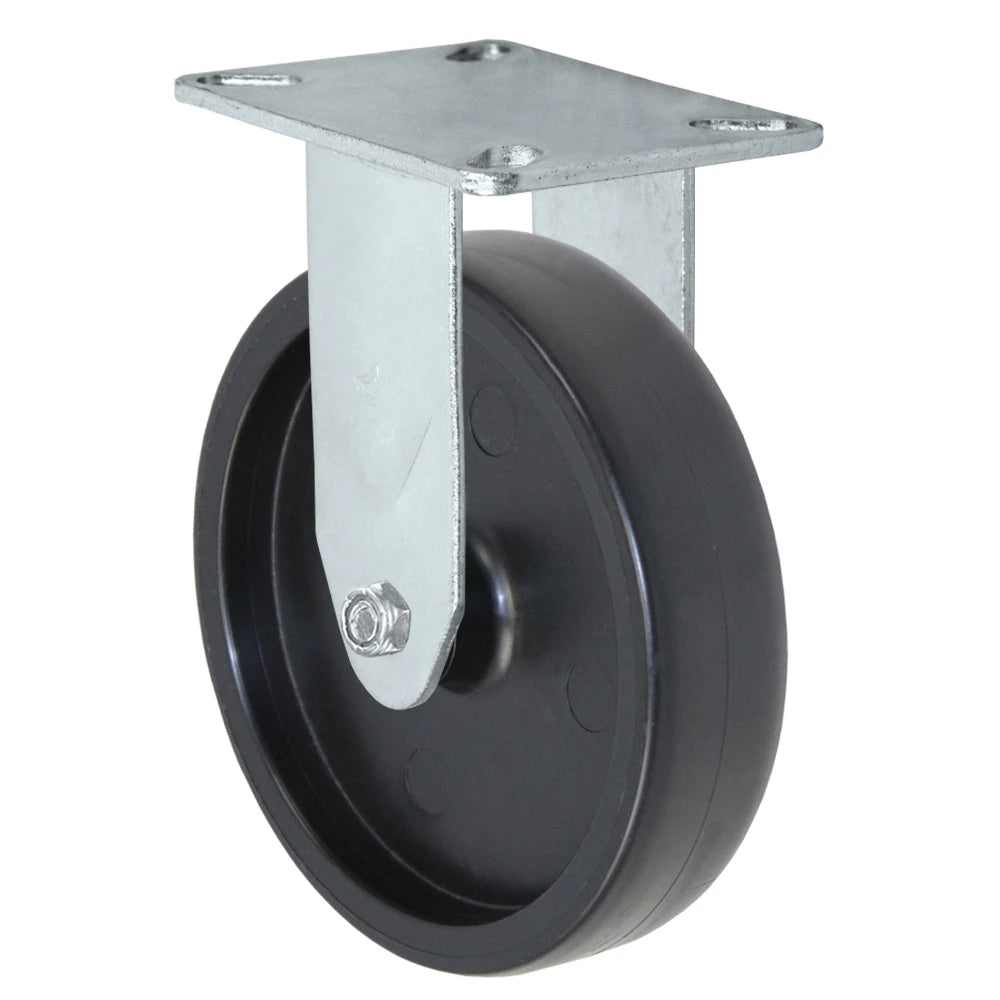

5" x 1-1/4" Polyolefin Casters · 325 lb

Diameter: 5 inTread: 1-1/4 inCapacity: up to 325 lb

5" x 1-1/4" Polyolefin Casters for light institutional and furniture-grade frames. Typical builds show wheel diameters 5 in, polyolefin treads, and plate-mount frames. Replace worn corners in matched sets when possible so the cart tracks straight under load. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. These light-duty options cover everyday light institutional and furniture-grade frames without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes

Plate Casters

Stem Casters

Stainless Casters

Ergonomic Casters

Leveling Casters

5" x 1-1/4" Polyolefin Casters · 325 lb
