Semi-Steel Casters

Diameter: 5, 6, 8, 10 inTread: 2, 2-1/2 inCapacity: up to 1,500 lb
This collection gathers plate-mount casters used on warehouse carts, racks, and everyday plant fixtures. You will see wheel diameters 5, 6, 8, 10 in, cast iron and steel treads, and capacities 1,000 to 1,500 lb across the SKUs listed below. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. Replace worn corners in matched sets when possible so the cart tracks straight under load.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1000 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 5" x 2" Semi-Steel Swivel Caster - 1000 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
5" x 2" Semi-Steel Swivel Caster – 1000 lb
Part # 35-S-520-SS-04
from $23.00
Volume pricing available
Cast IronPlate
Load rating
1000 lbs
Diameter 5"
Capacity 1000 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 5" x 2" Semi-Steel Swivel Caster Product...
Shop Product
1400 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2" Semi-Steel Swivel Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Semi-Steel Swivel Caster – 1400 lb
Part # 35-S-820-SS-04
from $30.00
Volume pricing available
Cast IronPlate
Load rating
1400 lbs
Diameter 8"
Capacity 1400 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster Advanced Wheel...
Shop Product
1400 lbs
TieredPricing

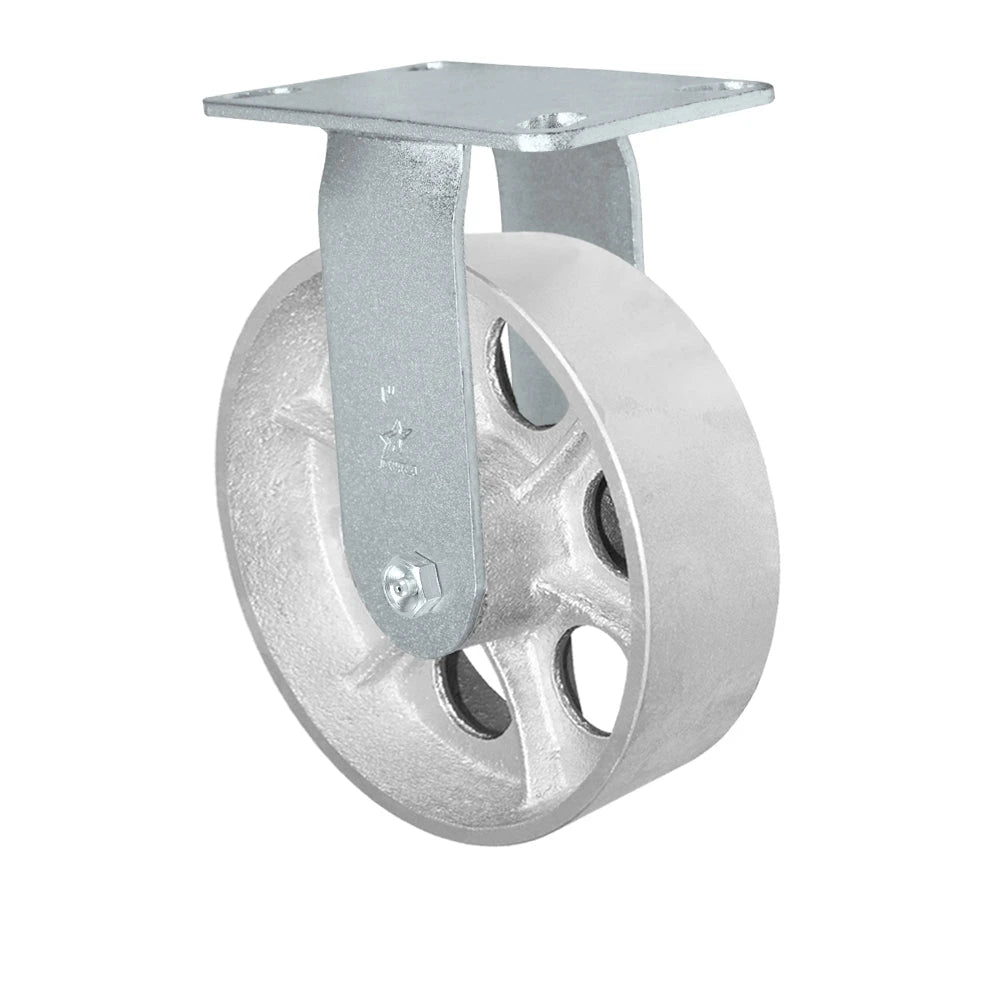

Durastar Medium Heavy Duty 35 Series - 8" x 2" Semi-Steel Rigid Caster - 1400 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2" Semi-Steel Rigid Caster – 1400 lb
Part # 35-R-820-SS-04
from $28.00
Volume pricing available
Cast IronPlate
Load rating
1400 lbs
Diameter 8"
Capacity 1400 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Rigid Caster Advanced Wheel...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Semi-Steel Swivel Caster – 1500 lb
Part # 35-S-825-SS-04
$69.99
Volume pricing available
Plate
Load rating
1500 lbs
Diameter 8"
Capacity 1500 lbs
Mount Plate
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Swivel Caster -...
Shop Product
1500 lbs
TieredPricing

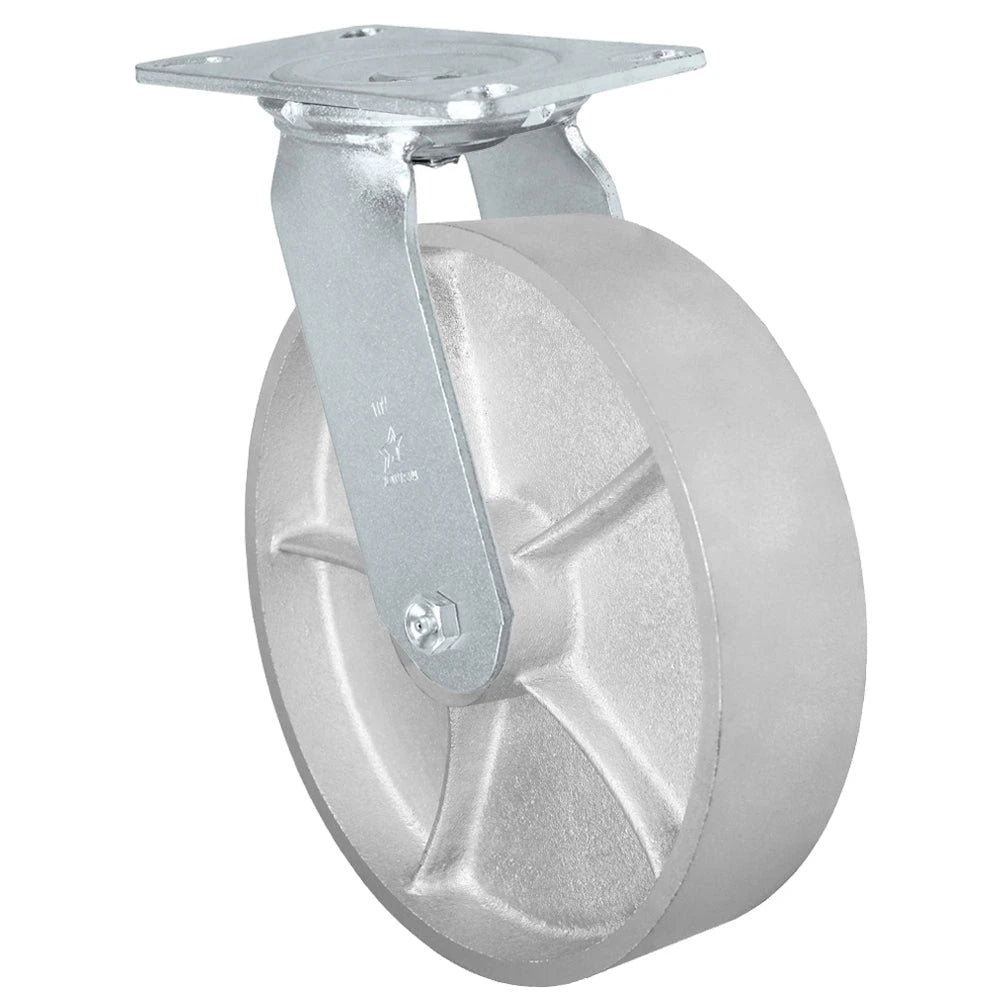

Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Semi-Steel Swivel Caster – 1500 lb
Part # 35-S-1025-SS-04
from $119.99
Volume pricing available
Plate
Load rating
1500 lbs
Diameter 10"
Capacity 1500 lbs
Mount Plate
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -40°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Swivel Caster -...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Rigid Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
8" x 2-1/2" Semi-Steel Rigid Caster – 1500 lb
Part # 35-R-825-SS-04
$224.00
Volume pricing available
Plate
Load rating
1500 lbs
Diameter 8"
Capacity 1500 lbs
Mount Plate
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 8" x 2-1/2" Semi-Steel Rigid Caster -...
Shop Product
1500 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 6" x 2-1/2" Semi-Steel Swivel Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2-1/2" Semi-Steel Swivel Caster – 1500 lb
Part # 35-S-625-SS-04
$224.00
Volume pricing available
Plate
Load rating
1500 lbs
Diameter 6"
Capacity 1500 lbs
Mount Plate
More Details Less Details
Width 2-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range Up to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2-1/2" Semi-Steel Swivel Caster -...
Shop Product
1200 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 6" x 2" Semi-Steel Swivel Caster - 1200 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2" Semi-Steel Swivel Caster – 1200 lb
Part # 35-S-620-SS-04
from $27.00
Volume pricing available
Cast IronPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2" Semi-Steel Swivel Caster -...
Shop Product
1200 lbs
TieredPricing
Durastar Medium Heavy Duty 35 Series - 6" x 2" Semi-Steel Rigid Caster - 1200 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
6" x 2" Semi-Steel Rigid Caster – 1200 lb
Part # 35-R-620-SS-04
from $26.00
Volume pricing available
Cast IronPlate
Load rating
1200 lbs
Diameter 6"
Capacity 1200 lbs
Wheel Cast Iron
Mount Plate
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -45°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 6" x 2" Semi-Steel Rigid Caster -...
Shop Product
1500 lbs
TieredPricing

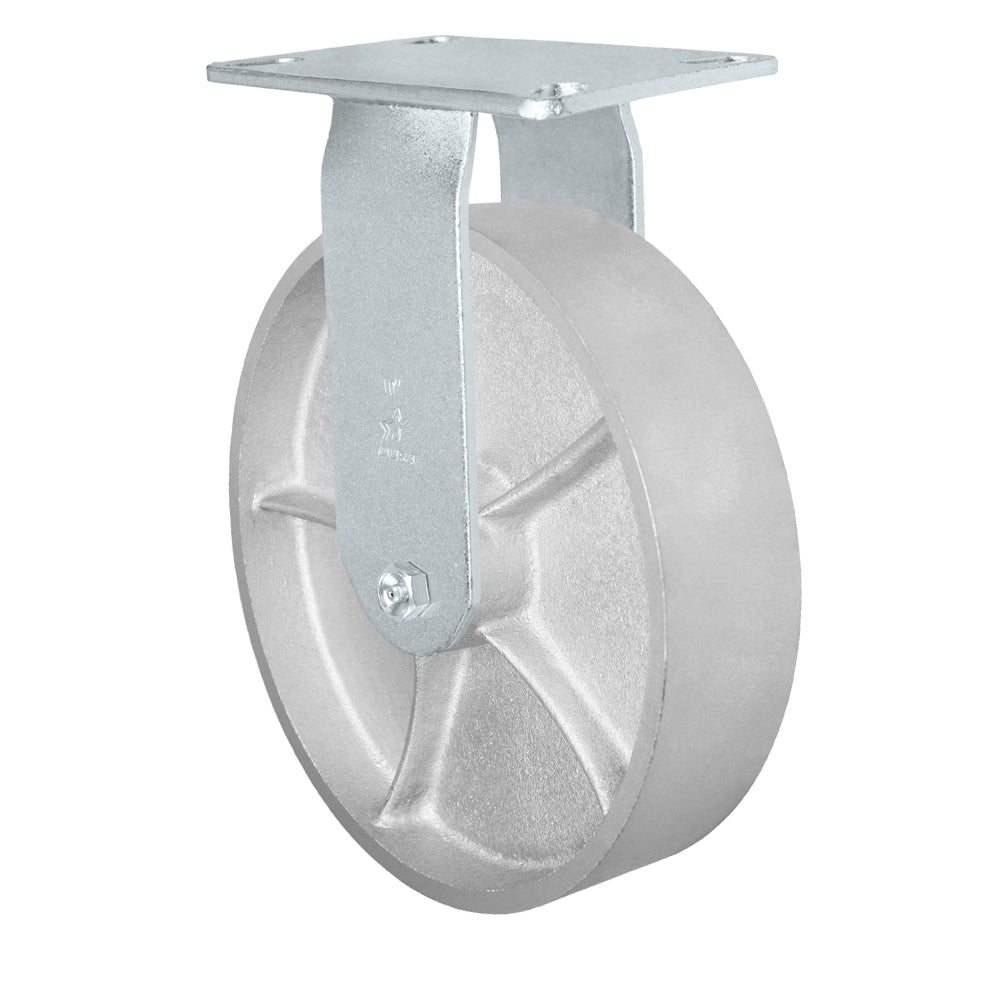

Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Rigid Caster - 1500 lb Capacity, Choose Bearing Option Durastar
Ships in 1-3 Business Days
10" x 2-1/2" Semi-Steel Rigid Caster – 1500 lb
Part # 35-R-1025-SS-04
$280.00
Volume pricing available
Plate
Load rating
1500 lbs
Diameter 10"
Capacity 1500 lbs
Mount Plate
More Details Less Details
Width 2-1/2"
Height 11-1/2"
Bolt Pattern 2-7/16" x 4-15/16"
Temp Range -40°F to 600°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Durastar Medium Heavy Duty 35 Series - 10" x 2-1/2" Semi-Steel Rigid Caster -...
Shop Product
