Durastar Medium Heavy Duty 35 Series - 8" x 2" Semi-Steel Swivel Caster - 1400 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-820-SS-04

Product Overview

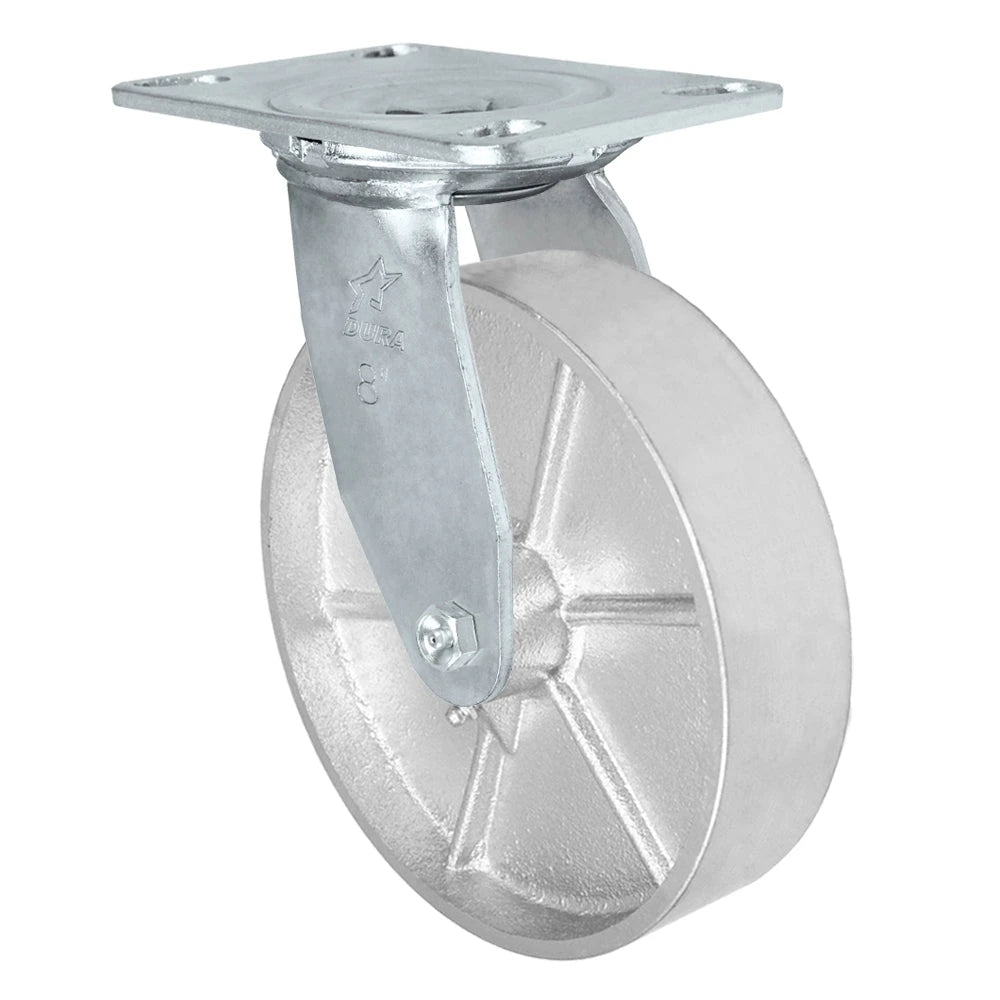

Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster


Advanced Wheel Technology

  • Material: Semi-Steel wheel for superior strength and durability
  • Resistance: Withstands heavy loads, impacts, and abrasions
  • Performance: Smooth rolling and quiet operation
  • Temperature Range: Suitable for diverse industrial settings
  • Advantages: Combines the strength of steel with shock-absorbing properties

Key Features

  • Load Capacity: Supports up to 1400 lbs per caster
  • Wheel Size: 8" diameter x 2" width
  • Caster Type: Swivel for enhanced maneuverability
  • Durable Construction: Cold forged steel components with zinc-plated finish for corrosion resistance
  • Enhanced Mobility: Double ball bearing raceways for smooth swiveling
  • Easy Maintenance: Zerk fitting available for simple lubrication

Industrial Applications

The Durastar 35 Series Semi-Steel Swivel Caster excels in various settings, including:

  • Heavy machinery and automotive assembly lines
  • Warehouses and distribution centers
  • Manufacturing facilities
  • Industrial material handling equipment
  • Heavy-duty transport carts and dollies
Technical Specs

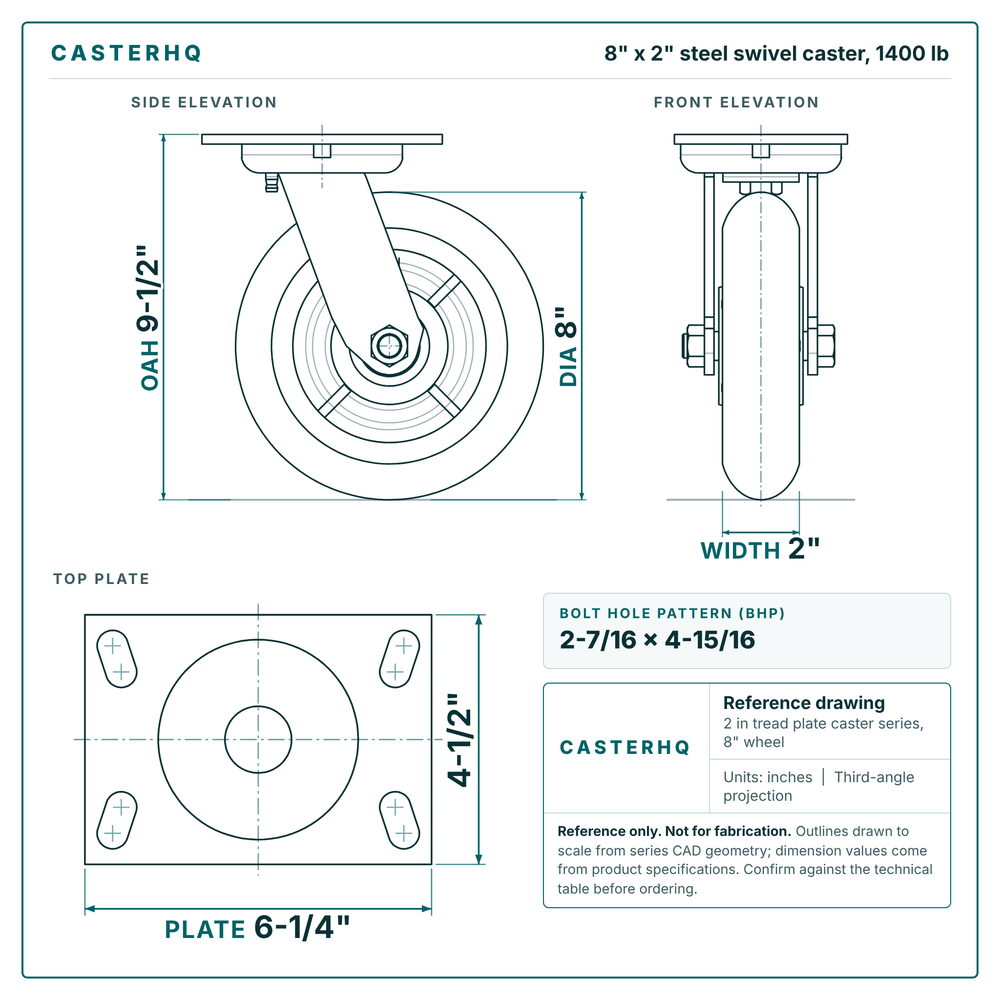

Technical Specifications

  • Wheel Diameter: 8 inches
  • Tread Width: 2 inches
  • Wheel Type: Semi-Steel
  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1400 lbs per caster
  • Swivel Radius: 5-1/2 inches
  • Bearing Options: Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin
  • Caster Type: Swivel
  • Attaching Bolt Diameter: 1/2 inch
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Features: Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster

  • High Load Capacity: Supports up to 1400 lbs per caster, ideal for heavy-duty industrial applications
  • Premium Wheel Material: 8" x 2" Semi-Steel wheel for superior strength and durability in demanding environments
  • Customizable Bearings: Choose from Roller, Precision Ball, or Delrin bearings to suit specific operational needs
  • Versatile Applications: Perfect for conveyors, food service equipment, platform trucks, and industrial machinery
  • Corrosion-Resistant Design: Zinc-plated finish on steel components for enhanced durability
  • Smooth Maneuverability: Swivel design with double ball bearing raceways for effortless movement
  • Temperature Resilience: Suitable for diverse industrial settings with varying temperature conditions
  • Easy Maintenance: Zerk fitting available for simple lubrication and long-lasting performance
  • Shock Absorption: Semi-Steel material provides excellent impact resistance for rough terrain
  • Quality Assurance: Rigorous testing ensures reliability, backed by Durastar's comprehensive warranty
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster


Industrial-Grade Performance

The Durastar Medium Heavy Duty 35 Series 8" x 2" Semi-Steel Swivel Caster represents the pinnacle of industrial mobility solutions. With an impressive 1400 lb capacity per caster, this versatile unit combines durability with superior performance, making it ideal for a wide range of heavy-duty applications in demanding environments.

Advanced Wheel Technology

  • Material: 8" x 2" Semi-Steel wheel for superior strength and durability
  • Performance: Smooth rolling and quiet operation
  • Advantages: Excellent impact resistance and floor protection

Customizable Bearing Options

Choose from three bearing types to suit your specific operational needs:

  • Roller Bearing: Ideal for heavy loads and high-speed applications
  • Precision Ball Bearing: Offers reduced rolling resistance for effortless maneuverability
  • Delrin Bearing: Provides excellent corrosion resistance, perfect for wet or sanitary environments

Key Features

  • Load Capacity: Supports up to 1400 lbs per caster
  • Durable Construction: 1/4" cold forged steel top plate and yoke legs
  • Corrosion Resistance: Zinc-plated finish for enhanced durability
  • Enhanced Mobility: Large double ball bearing raceways for smooth swiveling
  • Reinforced Design: 3/4" diameter heat-treated kingpin and nut for added strength
  • Easy Maintenance: Zerk fitting available for simple lubrication

Why Choose Durastar?

  • Over 35 years of caster innovation and expertise
  • Rigorous testing ensures reliability in challenging environments
  • Comprehensive 3-year warranty for peace of mind
  • Commitment to quality and user-centric design

Elevate your material handling capabilities with the Durastar 35 Series Semi-Steel Swivel Caster. Engineered for superior performance and longevity, this caster is the ideal choice for professionals who demand reliable, high-capacity mobility solutions in challenging industrial settings.
