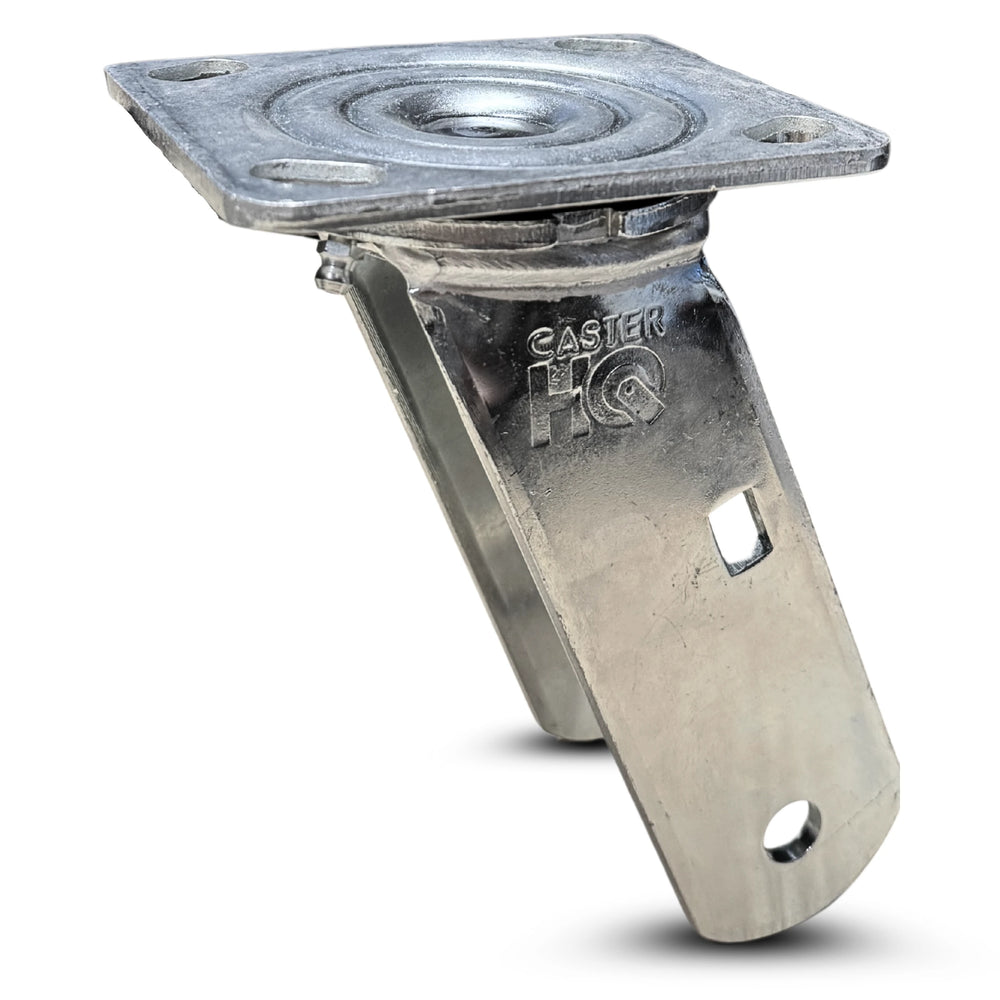

This 8" x 2" Swivel Caster Yoke 4" x 4-1/2" Top Plate Zinc 1,250 lb is rated to 1250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

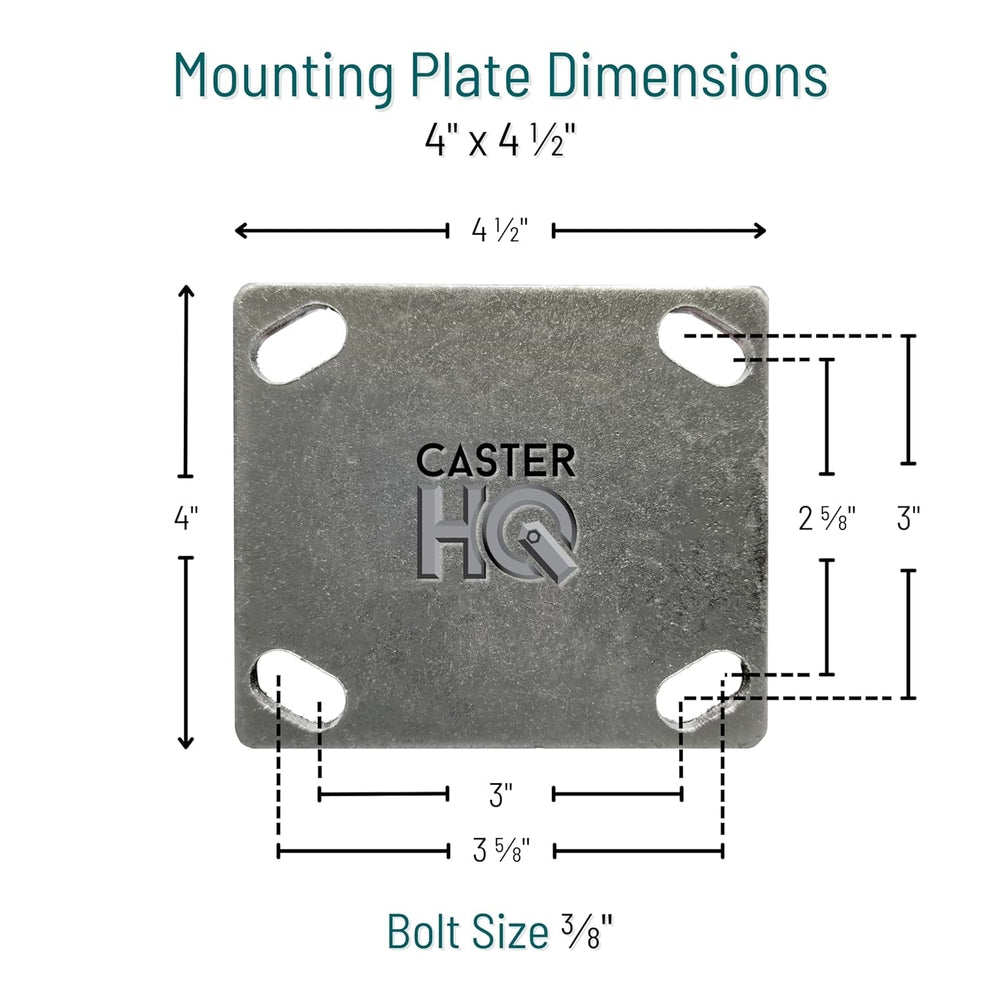

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 9-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$16.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2" |
| Overall Height | 9-1/2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 1250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
8" x 2" Phenolic Rigid Caster 4" x 4-1/2" Plate – 1,250 lb | CasterHQ
8" x 2" · 1250 lbs
$30
8" x 2" Semi-Steel Rigid Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2" · 1250 lbs
$43
8" x 2" Semi-Steel Swivel Caster – 1250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2" · 1250 lbs
$80
View all 8′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 1000 lbsLighter duty | 8" × 2"Blue Solid Polyurethane | — | — | $199.00 | View → | |
| 1000 lbsLighter duty | 8" × 2"Polyurethane | Rigid | 9-1/2" | $30.00 | View → | |
| 1250 lbs | 8" × 2" | Swivel | 9-1/2" | $16.00 | Viewing | |
| 1250 lbsSame capacity | 8" × 2"Phenolic | Rigid | — | $30.00 | View → | |
| 1250 lbsSame capacity | 8" × 2"Cast Iron | Rigid | 9-1/2" | $43.00 | View → |
