Smbt-1 Series

Diameter: 1 inCapacity: up to 200 lb
Nylon, steel, and stainless casters here serve chemical, food-contact, and washdown carts. Catalog chips cover wheel diameters 1 in, nylon, steel, and stainless treads, and industrial frames. Match bolt-hole spacing or stem diameter to the frame before you standardize a fleet. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

200 lbs
TieredPricing
Hudson Bearings SMBT-1-CS ball transfer unit
Ships in 1-3 Business Days
HUDSON BEARINGSMade in USA
Hudson Bearings SMBT 1 CS 1" Carbon Steel Ball Transfer Unit – 200 lb
Part # SMBT-1-CS
$20.00
Volume pricing available
Stud-Mount
Load rating
200 lbs
Diameter 1"
Capacity 200 lbs
Mount Stud-Mount
Stem Size 5/16"-18
More Details Less Details
Height 1-1/4" (31.8 mm)
Frame Zinc Plated Steel
SMBT 1 CS - SMBT-1 SERIES: High-Performance Carbon Steel Ball Transfers Product Features Series:...
Shop Product
200 lbs
TieredPricing

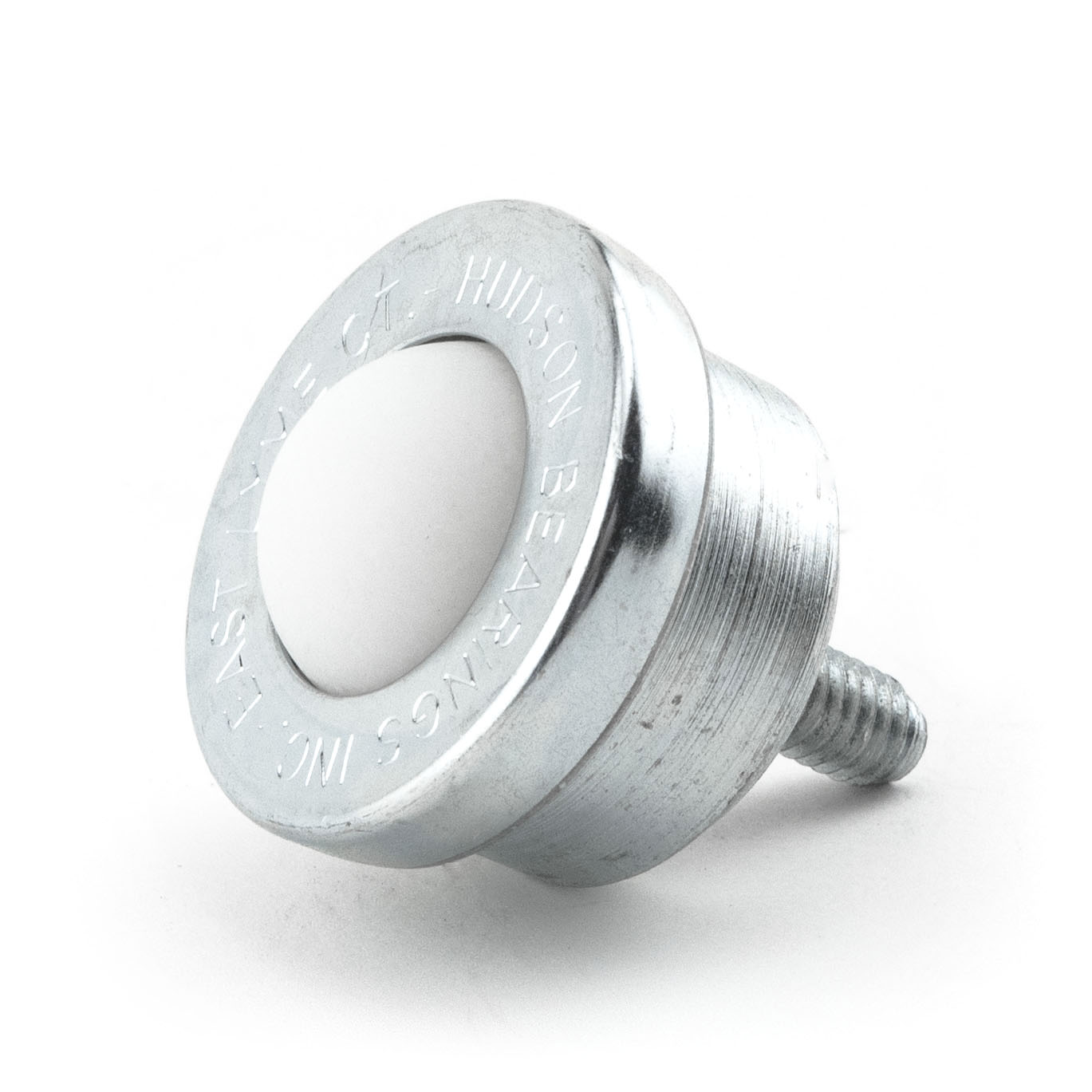

Hudson Bearings NSMBT-1-CS ball transfer unit
Ships in 1-3 Business Days
HUDSON BEARINGSMade in USA
Hudson Bearing NSMBT 1 CS 1" Nylon Ball Transfer Unit – 200 lb
Part # NSMBT-1-CS
$20.00
Volume pricing available
NylonStud-Mount
Load rating
200 lbs
Diameter 1"
Capacity 200 lbs
Wheel Nylon
Mount Stud-Mount
Stem Size 5/16"-18
More Details Less Details
Height 1-1/4" (31.8 mm)
Frame Zinc Plated Steel
NSMBT 1 CS - SMBT-1 SERIES: High-Performance Nylon Ball Transfers with Carbon Steel Housing...
Shop Product
200 lbs
TieredPricing

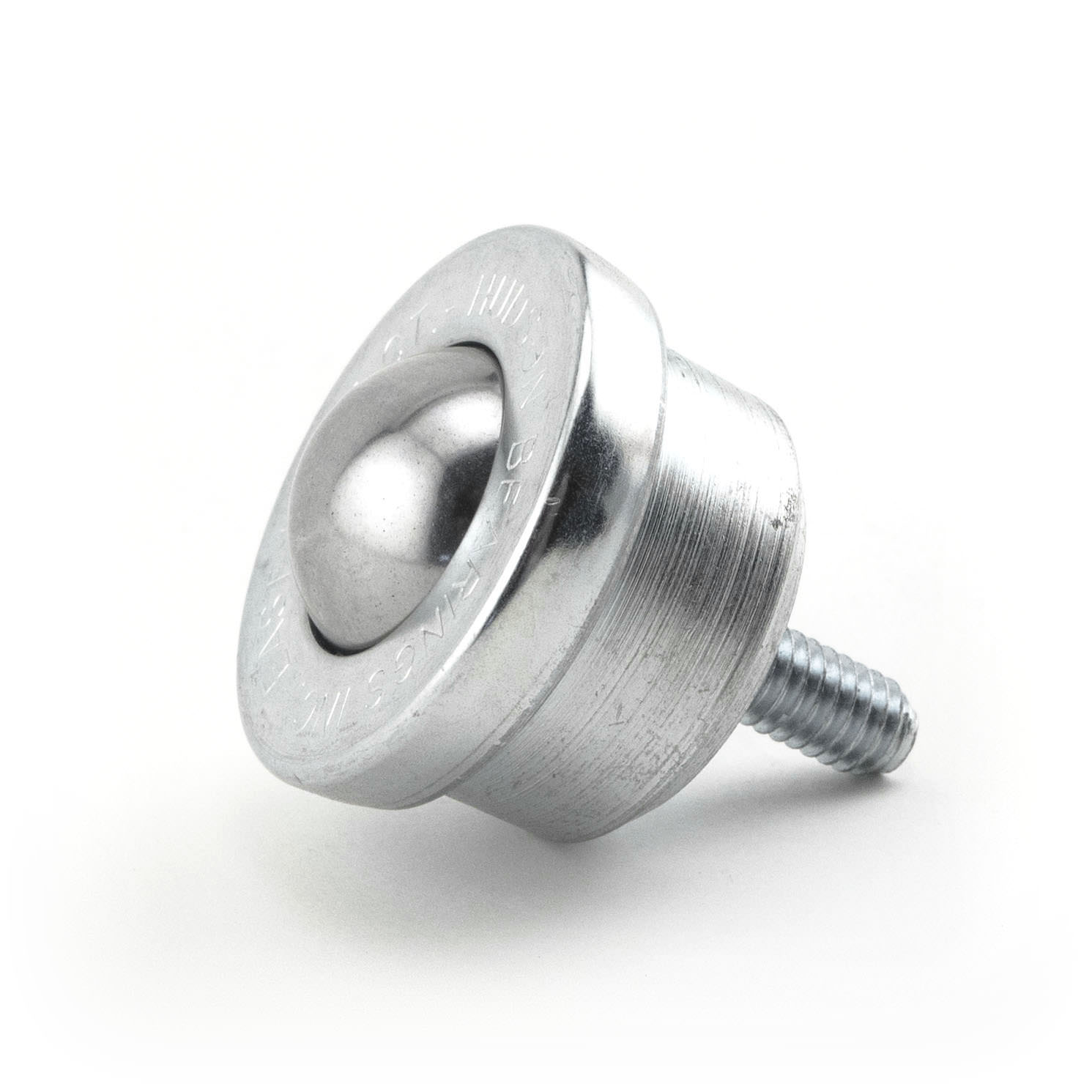

Hudson Bearings SMBT-1SS ball transfer unit
Ships in 1-3 Business Days
HUDSON BEARINGSMade in USA
Hudson Bearings SMBT 1SS 1" Stainless Steel Ball Transfer Unit – 200 lb
Part # SMBT-1SS
$42.00
Volume pricing available
Stud-Mount
Load rating
200 lbs
Diameter 1"
Capacity 200 lbs
Mount Stud-Mount
Stem Size 5/16"-18
More Details Less Details
Height 1-1/4" (31.8 mm)
Frame Zinc Plated Steel
SMBT 1SS - SMBT-1 SERIES Stainless Steel Ball Transfers: Superior Load Capacity and Durability...
Shop Product
200 lbs
TieredPricing
Hudson Bearings SMBT-1-CS-SS ball transfer unit
Ships in 1-3 Business Days
HUDSON BEARINGSMade in USA
Hudson Bearing SMBT 1 1" Stainless Steel Ball Transfer Unit – 200 lb
Part # SMBT-1-CS-SS
$24.00
Volume pricing available
Stud-Mount
Load rating
200 lbs
Diameter 1"
Capacity 200 lbs
Mount Stud-Mount
Stem Size 5/16"-18
More Details Less Details
Height 1-1/4" (31.8 mm)
Frame Zinc Plated Steel
SMBT 1 CS/SS - SMBT-1 SERIES: High-Performance Stainless Steel Ball Transfers Product Features Series:...
Shop Product
