Total Locking Casters · 3"–5" · 275–350 lb · Polyurethane & Rubber

Diameter: 3 to 5 inTread: 1-1/4 inPlate: 2-3/8 x 3-5/8 inCapacity: 225 to 350 lb per caster

Total lock casters with polyurethane, rubber, nylon and phenolic wheels. Polyurethane on polyolefin cores is the most common tread here, rated 300 to 350 lb per caster in 3, 4 and 5 in. Also listed: rubber 225 to 325 lb, nylon 300 to 350 lb and phenolic 350 lb.

Total lock casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Polyurethane	Polyolefin	3, 4 and 5 in	300 to 350 lb	-20°F to 180°F	quiet, floor-friendly and long wearing
Rubber	Polyolefin	3, 4 and 5 in	225 to 325 lb	-40°F to 160°F	cushioned and quiet on finished floors

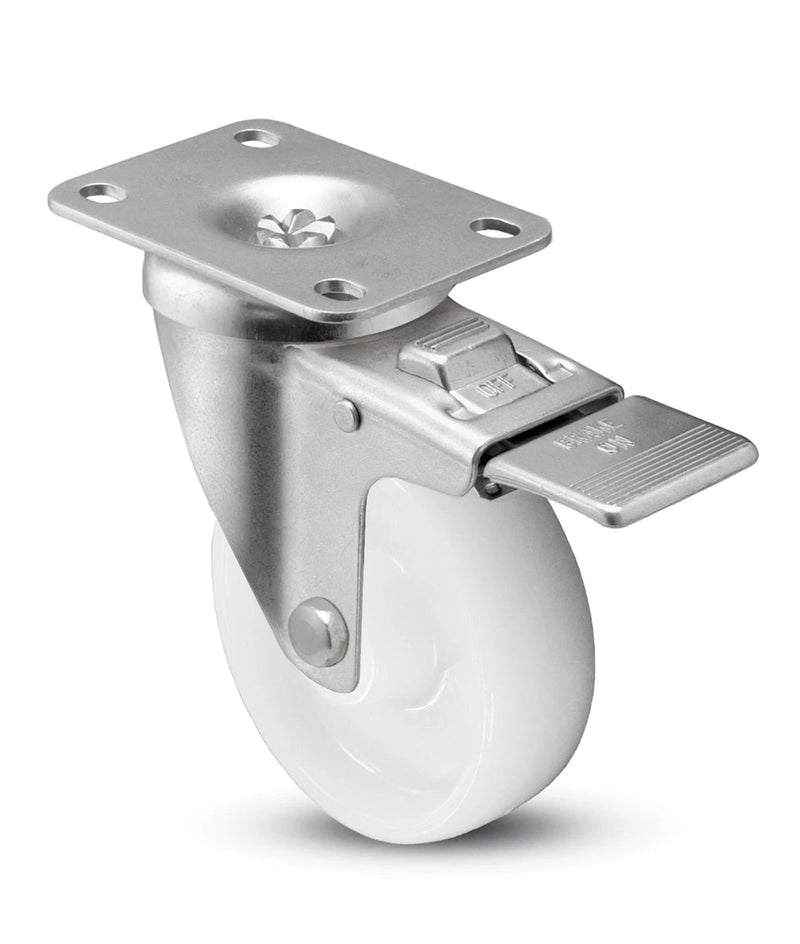

Nylon		3, 4 and 5 in	300 to 350 lb	-40°F to 210°F	low rolling effort on smooth floors, handles wet areas
Phenolic		3, 4 and 5 in	350 lb	-50°F to 250°F	hard and easy rolling on smooth, dry floors

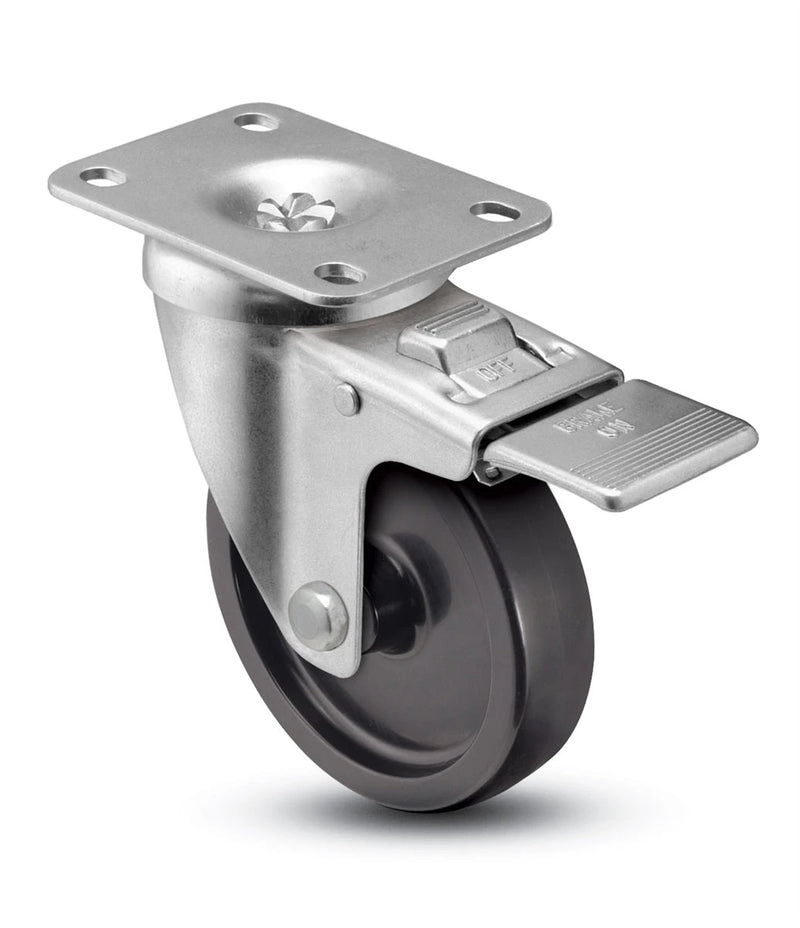

Polyolefin		3, 4 and 5 in	275 to 325 lb	-45°F to 180°F	wet and chemical areas, light to medium loads
Semi-steel		4 in	350 lb	-45°F to 600°F	rough floors, heat and heavy loads

Ratings are for single casters of total lock casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
3 x 1-1/4 in	polyurethane, rubber and phenolic	225 to 350 lb
4 x 1-1/4 in	polyurethane, rubber and nylon	300 to 350 lb
5 x 1-1/4 in	polyurethane, rubber and phenolic	315 to 350 lb

Choosing total lock casters

Load: plan on three casters carrying a four-caster cart [S2]; at 350 lb each, a common rating here, that is about 1,050 lb, and the 350 lb top rating covers about 1,050 lb.
Mount: most total lock casters use a 2-3/8 x 3-5/8 in top plate; measure bolt hole centers on the old plate and compare.
Floor: on total lock casters, polyurethane and rubber are kinder to tile and finished floors; nylon, phenolic, polyolefin and semi-steel roll easier under heavy loads on smooth concrete.
Rig: swivel total lock casters are listed, with total lock brake options.
Heat: among total lock casters, the highest listed range is -45°F to 600°F on semi-steel; check the temperature field on each listing before oven or hot-room use.

Total lock casters questions

How much weight can total lock casters carry?

Single total lock casters are rated 225 to 350 lb; most fall between 300 and 350 lb.

What top plate do total lock casters use?

Most total lock casters use 2-3/8 x 3-5/8 in.

What wheel material is most common on total lock casters?

Polyurethane leads on total lock casters, rated 300 to 350 lb per caster. Rubber is next at 225 to 325 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
