All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.




| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Polyurethane | Cast iron | 5 in | 1,100 lb | -40°F to 180°F | quiet, floor-friendly and long wearing |
| Nylon | 4 in | 350 lb | -45°F to 475°F (550°F intermittent) | low rolling effort on smooth floors, handles wet areas |
Ratings are for single casters of total locking casters, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|

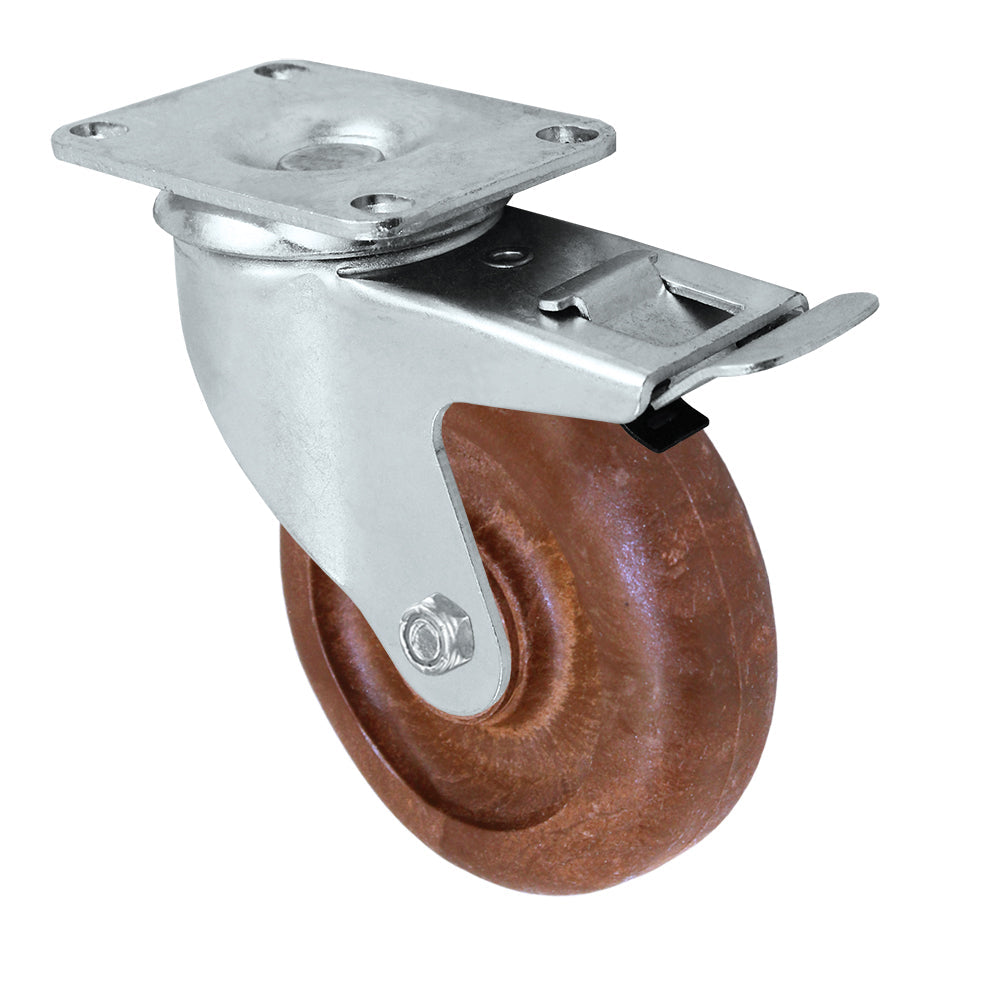

| 4 x 1-1/4 in | nylon | 350 lb |
| 5 x 2 in | polyurethane | 1,100 lb |
Related to total locking casters: industrial casters.
Single total locking casters are rated 350 to 1,100 lb.
Most total locking casters use 4 x 4-1/2 in. Other plates on total locking casters: 2-3/8 x 3-5/8 in.
Polyurethane leads on total locking casters, rated 1,100 lb per caster. Among total locking casters, nylon is next at 350 lb.
