5 Inch x 2 Inch Total Locking Caster Set - 4 Pack | 4400 lbs Total Capacity | Polyurethane on Iron CasterHQ

5 Inch x 2 Inch Total Locking Caster Set - 4 Pack | 4400 lbs Total Capacity | Polyurethane on Iron

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$339.00 USD - $364.50 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ2050S-PL1-PIR-REDB-SWB-SET

Product Overview

5" x 2" Casters Set of 4 | 4 Total Locking Casters with Polyurethane on Iron Wheel | 4400 lbs Capacity | 4" x 4-1/2" Mounting Plate

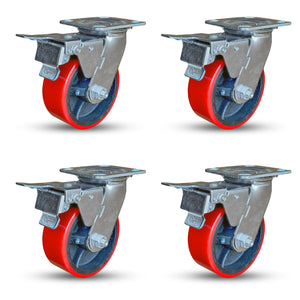

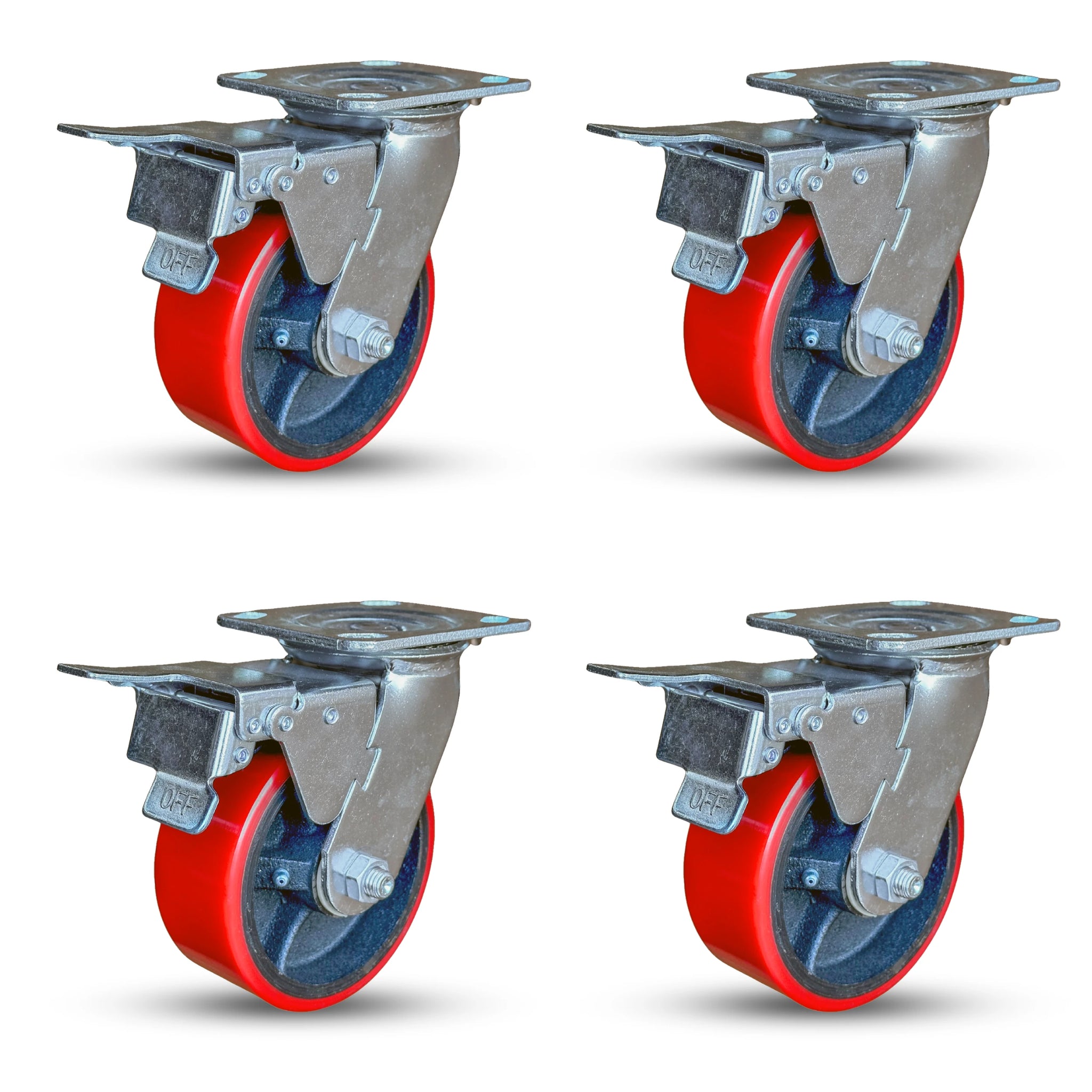

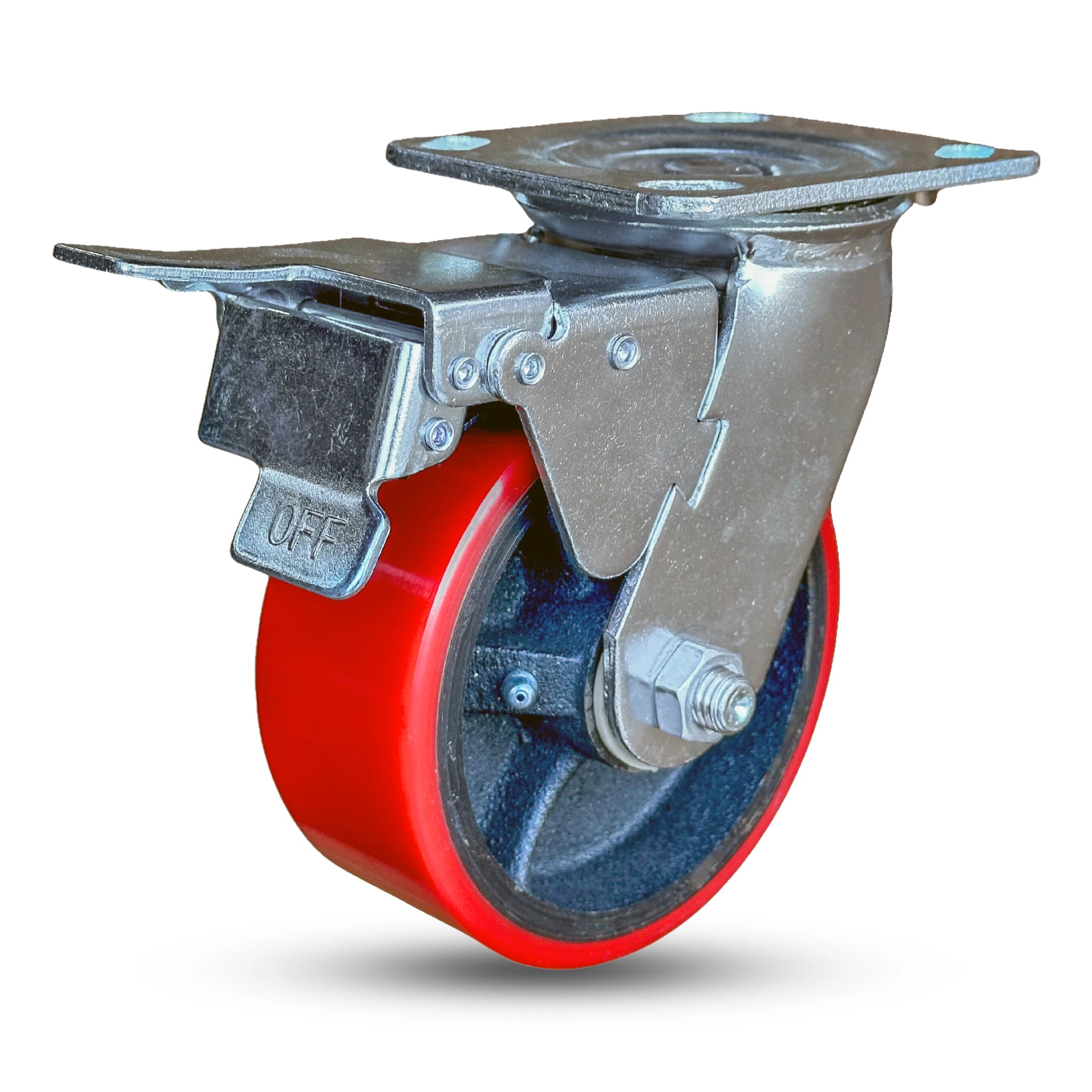

This set includes four industrial total locking swivel casters, each featuring a heavy-duty polyurethane wheel on a cast iron core. The total locking swivel casters offer unparalleled safety, allowing the operator to lock both the wheel and swivel section simultaneously. This converts the swivel casters into completely stationary and locked units, preventing unwanted movement – a paramount safety feature in the caster industry.

The total locking mechanism, operated by robust steel pedals, is easily engaged and disengaged with the foot, ensuring ease of use and stability. All casters in this set are equipped with grease/zerk fittings in crucial areas - the raceway for the swivel section, the wheel hub, and the axle running through the wheel. This ensures easy maintenance and long-lasting, smooth operation.
Each caster in this set can support a weight of 1,100 lbs for a total capacity of 4,400 lbs per set of 4. The polyurethane wheels are non-marking and floor-friendly, providing high weight capacity without the risk of damaging or scratching your floors. The steel yoke or fork of the casters is zinc-plated for added rust resistance.

Certified as ICWM-approved, NSF-listed, and RoH-compliant, these casters meet rigorous safety standards, making them suitable for almost any application or industry. Combining two total locking swivel casters and two rigid casters offers versatility and security for various industrial needs.

Quick Specs & Features for Set of 4 Casters (4 Total Locking Swivel Casters):

Wheel Diameter: 5 inches
Tread Width: 2 inches
Overall Height of Caster: 6-1/2 inches
Swivel Radius (for Swivel Casters): 6-1/4 inches

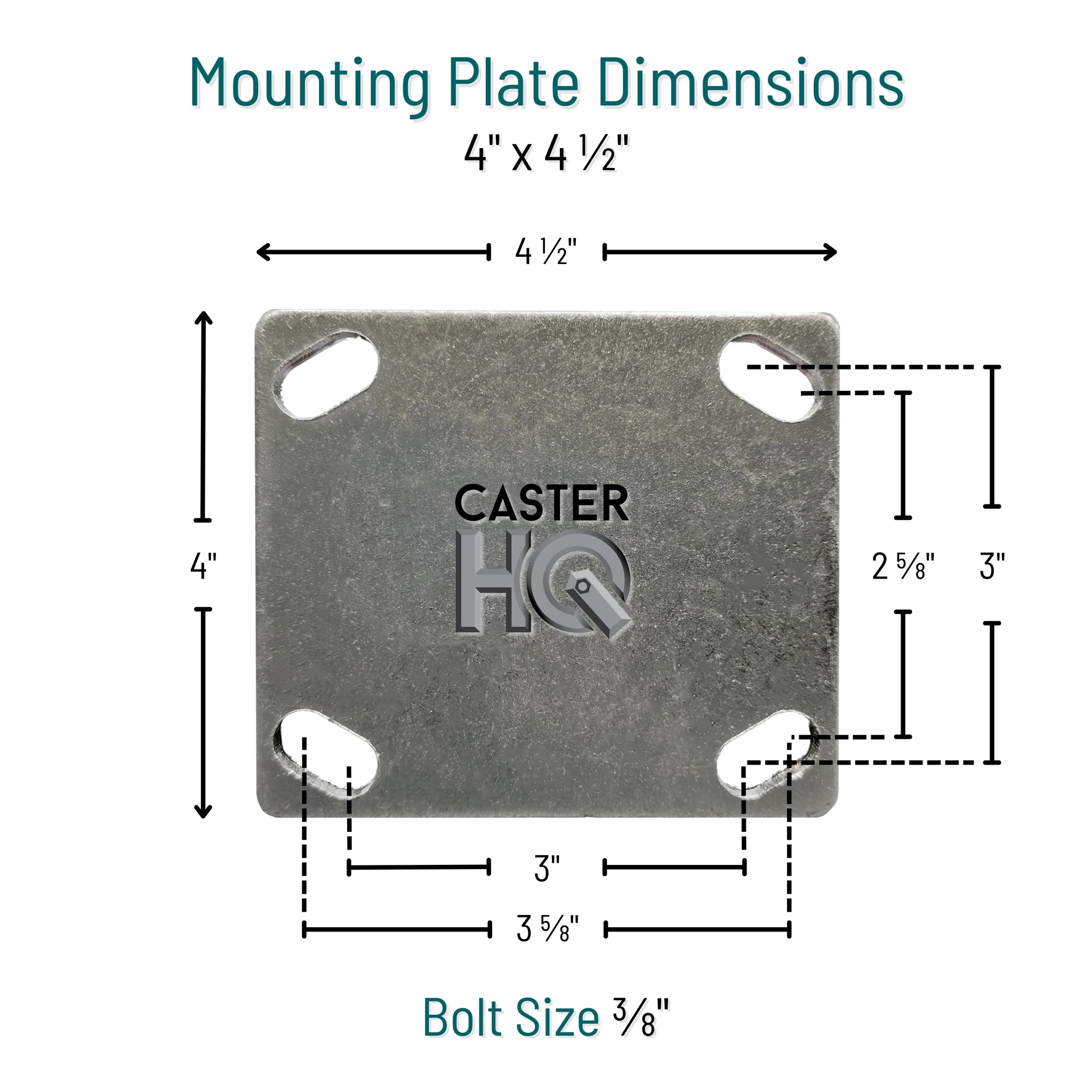

Mounting Plate Size: 4 inches x 4-1/2 inches
Bolt Hole Pattern: 2-5/8 inches x 3-5/8 inches, slotted to 3 inches x 3 inches
Bearing Type: 3/4 inch Roller Bearing with 1/2 inch ID Spanner Included (Option for Precision Bearings on the product page)
Raceway: Double Ball Raceway with 5/8 inch kingbolt (for Swivel Casters)
Wheel Material: Polyurethane tread chemically bonded to cast iron core
Wheel Durometer: Shore A 95 (±5)
Temperature Range: -40°F to 180°F
Wheel Color: Red Tread on Black Iron Core

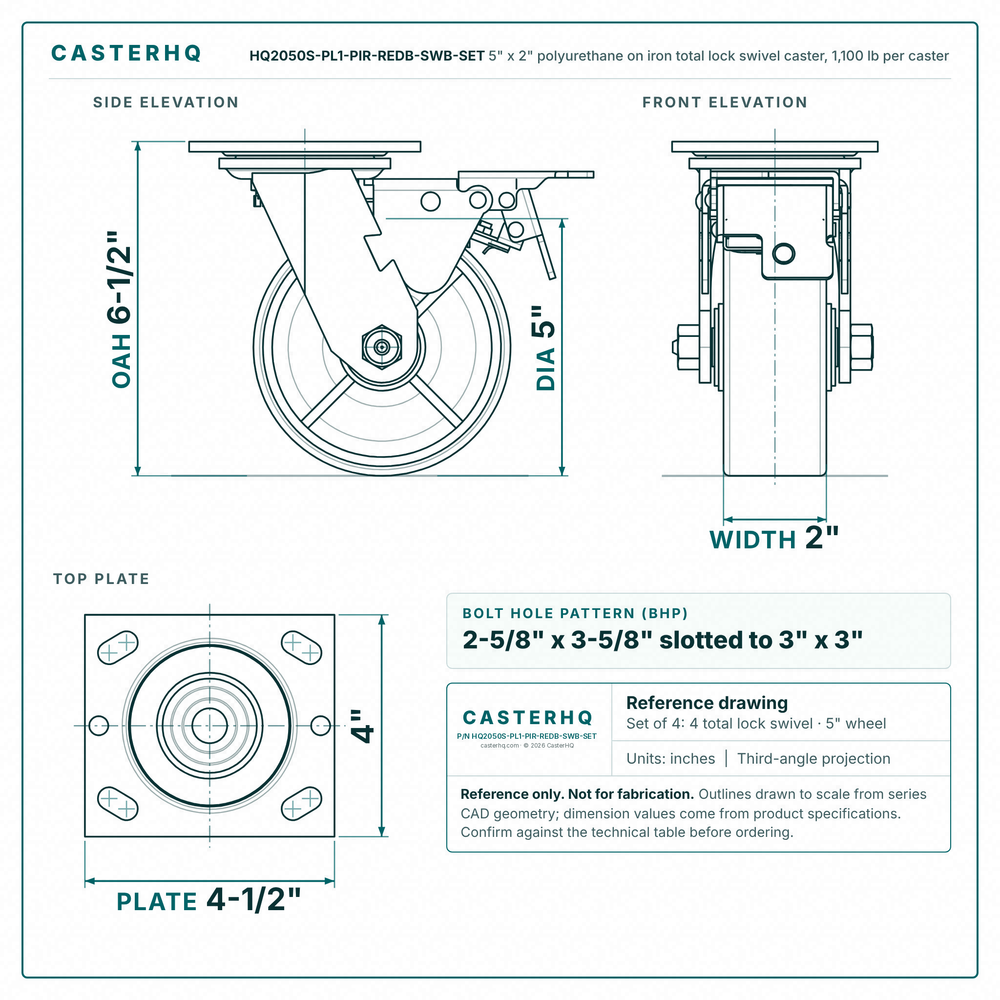

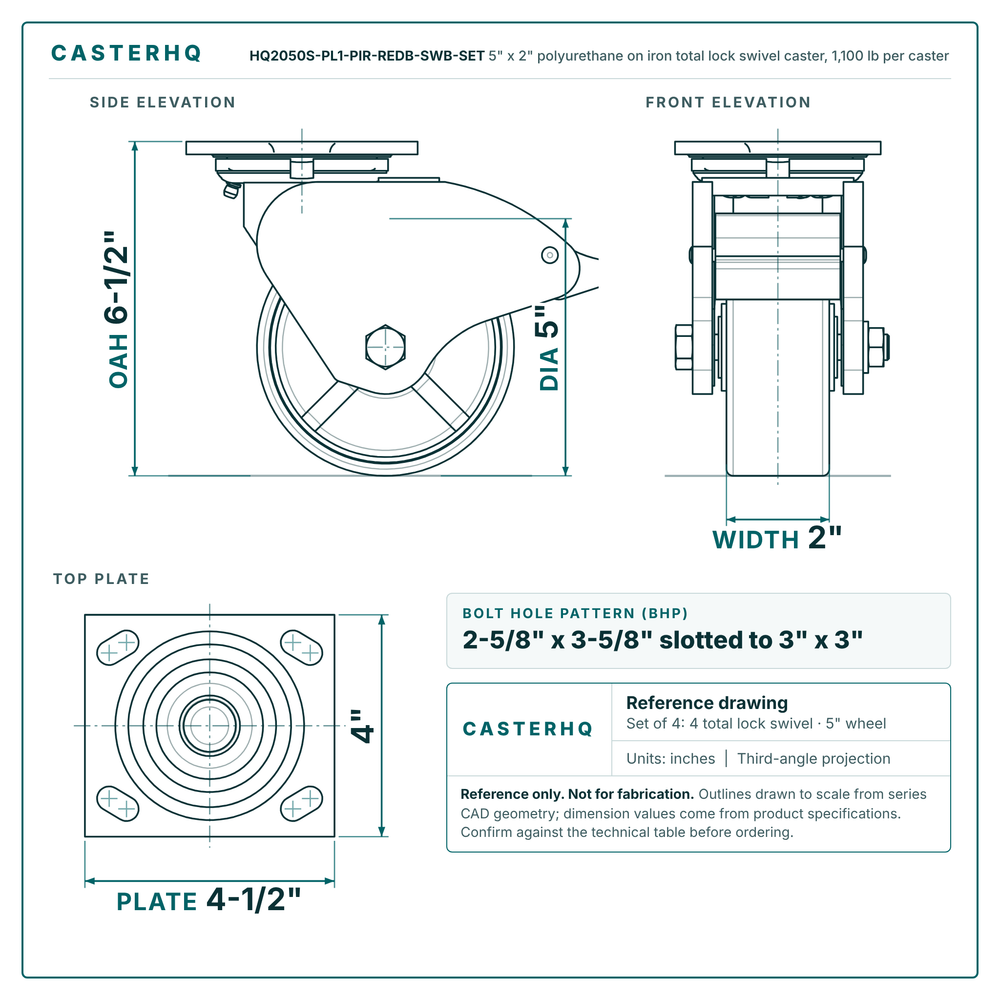

Technical Specs

Wheel Diameter: 5 inches
Tread Width: 2 inches
Overall Caster Height: 6-1/2 inches
Swivel Radius for Swivel Casters: 6-1/4 inches

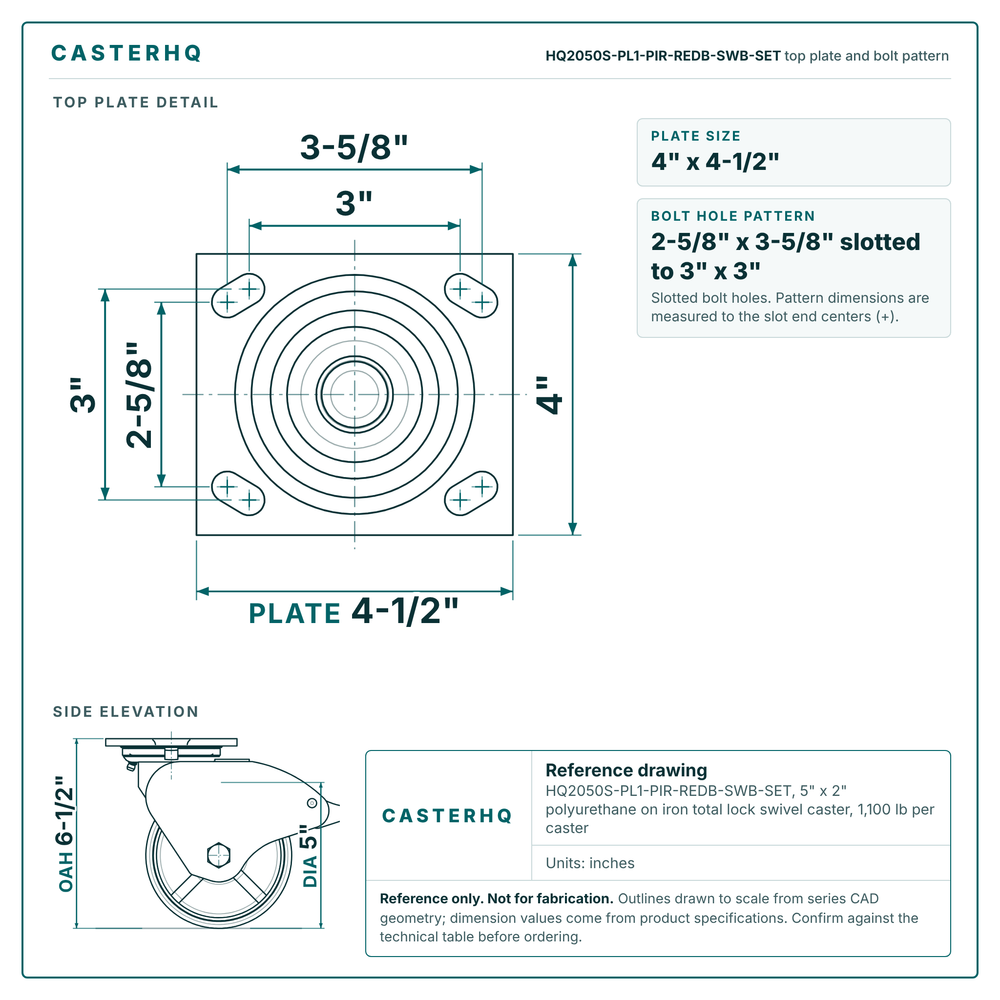

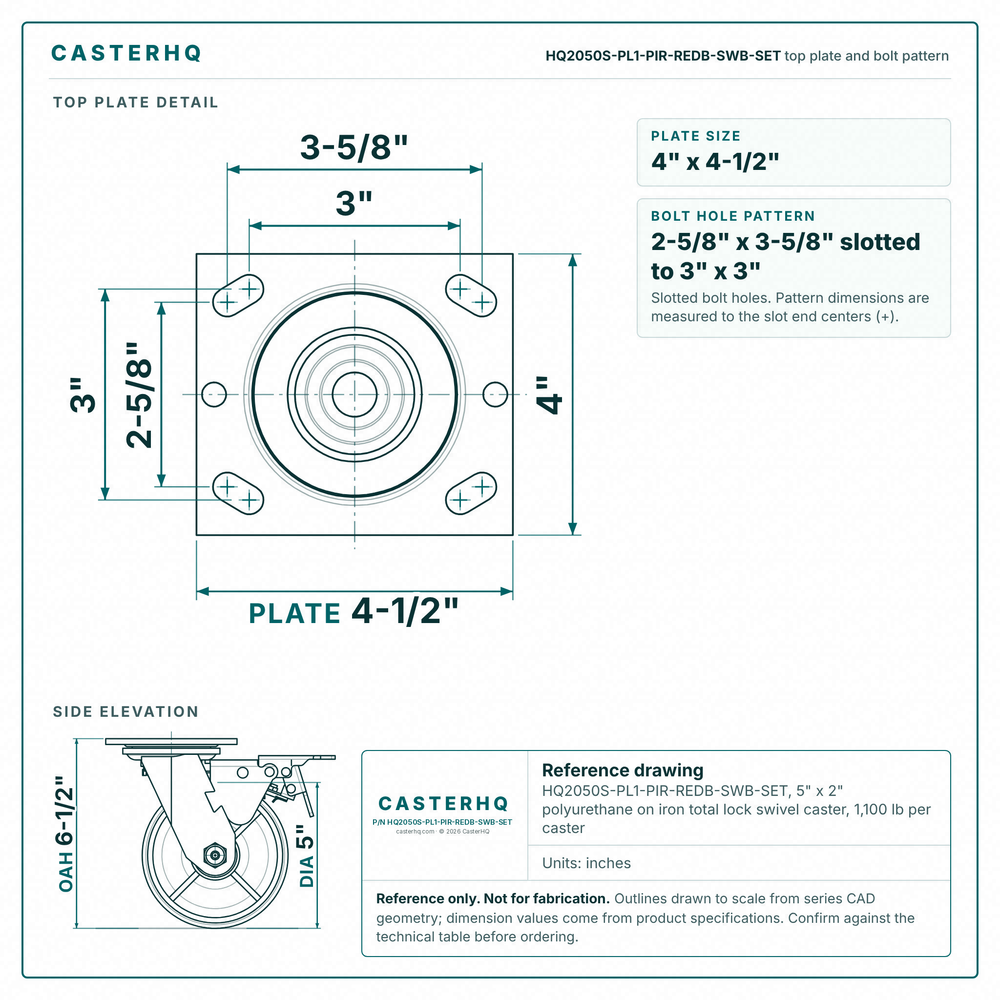

Mounting Plate: 4" x 4-1/2"
Bolt Hole Pattern: 2-5/8" x 3-5/8", slotted to 3"x3"
Bearing Type: 3/4" Roller Bearing with 1/2" ID Spanner
Raceway: Double Ball for Swivel Casters
Wheel Durometer: Shore A 95 (±5)
Temperature Tolerance: -40°F to 180°F
Wheel Color: Red Tread on Black Core
Weight Capacity: 4,400 lbs per set of 4

Key Features

Four Total Locking Swivel Casters: Secure and stationary when needed
High Load Capacity: Each caster supports 1100 lbs (4400 LBS PER SET)
Durable Wheel Material: Polyurethane on iron for longevity
Non-Marking Wheels: Protects floors from damage

Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

Flat-rate shipping by order size. Final shipping cost shown before payment.
No post-checkout shipping adjustments or re-billing.
Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Additional Information

Our 5" x 2" Total Locking Caster is ICWM approved, NSF Listed, and RoHs Compliant, ensuring it meets the highest safety standards. Its double ball raceway and roller bearing design offer smooth maneuverability, making it perfect for various industrial applications.
