The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

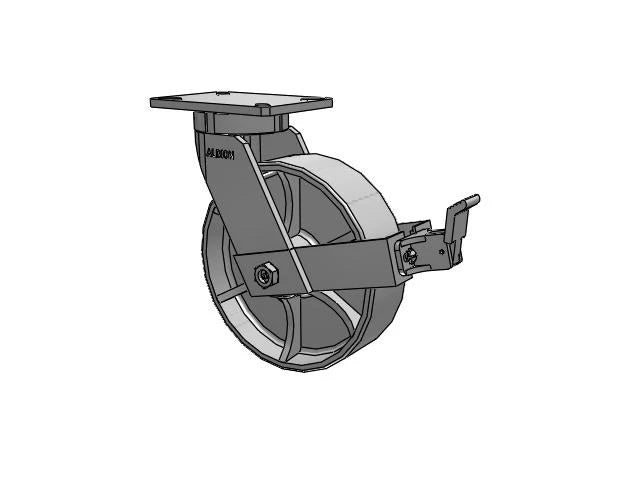

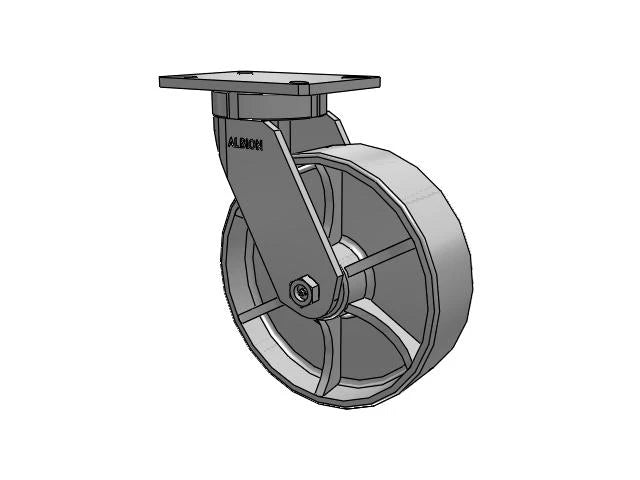

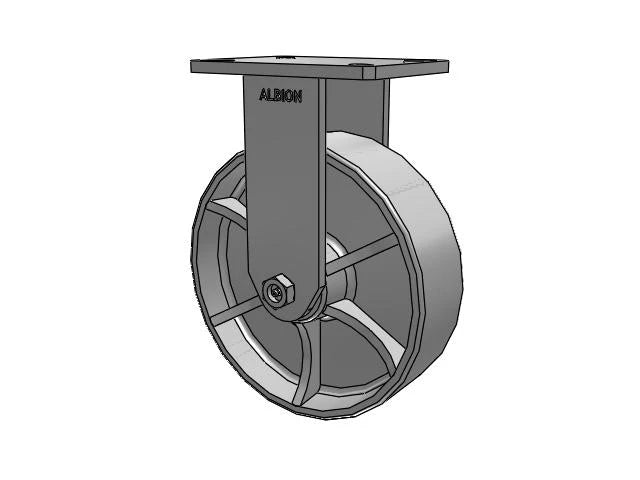

10" x 3" Cast Iron Casters

Plate sizes: 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 10 inTread: 3 inCapacity: up to 2,800 lb

Casters on the 5-1/4 x 7-1/4 plate pattern suit heavy warehouse carts, die carts, and plant fixtures. Typical builds show wheel diameters 10 in, cast iron treads, and capacities 2,800 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Larger plates spread bolt stress on thick frames under continuous tow abuse. Replace worn corners in matched sets when possible so the cart tracks straight under load.

Product Features

Wheel Diameter: 10 inches

Wheel Material: Durable Metal

Series: 470 Series

Mounting Type: Plate mount

Height: Standard for the 470 Series

Discover exceptional durability and performance with the Industrial Value Line Albion Casters - 470 Series. Featuring robust 10" Metal wheels, these casters are designed to handle heavy loads with ease, offering a maximum load capacity of up to 600 pounds per caster. The precision ball bearing swivel ensures smooth and effortless maneuverability, while the plate mount design allows for easy installation on various types of equipment. Ideal for industrial applications, these casters provide reliability and efficiency in demanding environments.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
