All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Safe & Applicance Dollies

Safe & Applicance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

14 in Wheel Casters

Plate sizes: 5 x 7-1/4, 5-1/4 x 7-1/4Bolt holes: 3-3/8 x 5-1/4 slotted to 4-1/8 x 6-1/8Diameter: 7-1/4 to 14 inCapacity: up to 785 lb
Casters on the 5 x 7-1/4 plate pattern suit outdoor yards and rough pavement. Catalog chips cover wheel diameters 7-1/4 to 14 in, pneumatic treads, and capacities 785 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Air or foam-filled tires cushion gravel and cracked pavement better than hard treads. These medium-duty options cover everyday outdoor yards and rough pavement without jumping to extreme forged series.
785 lbs
TieredPricing
HD Raceway 14" Black Pneumatic Ball Bearing Swivel Caster with 7.25"x5.25" Plate, Swivel Lock, & 785 lb Load Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 14" Pneumatic Swivel Caster 7.25"x5.25" Plate – 785 lb
Part # 90SF14827SL
$585.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 7-1/4"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
HD Raceway 14" Black Pneumatic Swivel Caster Heavy Duty | 785 lb Capacity Upgrade...
Shop Product
785 lbs
TieredPricing
Heavy-Duty 14" Pneumatic Caster with Top Lock - 785 lb Load Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 90SF14827SF 14" x 5-5" Black Pneumatic Caster — 785 lb
Part # 90SF14827SF
$687.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 14"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17-3/4"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Rig Type Swivel with Face Contact Brake
Brake Face Contact Brake
Frame Zinc Plated Steel
The Albion 90SF14827SF is a 14" x 5-5" black pneumatic plate caster rated 785...
Shop Product
785 lbs
TieredPricing
Heavy-Duty 785 lb Capacity Black Pneumatic Ball Bearing Caster with 7.25"x5.25" Plate & 14"x5.3" Tire Albion-Casters
Ships in 1-3 Business Days
Albion 14" x 5.3" Pneumatic Caster – 785 lb
Part # 90SF14827S
$500.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 7-1/4"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Heavy-Duty Pneumatic Caster - Enhance Equipment Mobility 785 lb Capacity | 14-Inch Tire Upgrade...
Shop Product
785 lbs
TieredPricing
HD Raceway 14" Black Pneumatic Rigid Caster with Top Lock - 785 lb Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 14" Pneumatic Rigid Caster with Brake – 785 lb
Part # 90SF14827RF
$576.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 14"
Capacity 785 lbs
Mount Plate
Plate Size 5" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid with Brake
Brake Side Lock Brake
Frame Zinc Plated Steel
HD Raceway 14" Pneumatic Caster - Boost Equipment MobilityHeavy-Duty Performance | 785 lb CapacityUpgrade...
Shop Product
785 lbs
TieredPricing

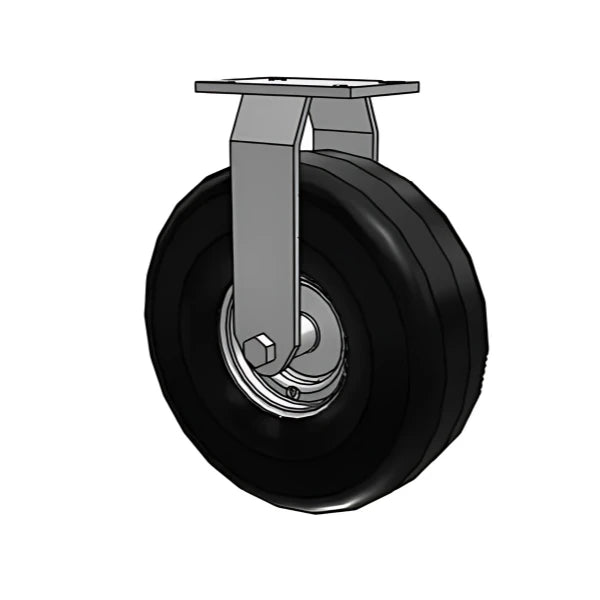

Heavy-Duty 785 lb Capacity Black Pneumatic Ball Bearing Rigid Caster with 7.25"x5" Plate & 14"x5.3" Tire Albion-Casters
Ships in 1-3 Business Days
Albion 14" x 5.3" Pneumatic Rigid Caster 7.25"x5" Plate – 785 lb
Part # 90SF14827R
$376.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 7-1/4"
Capacity 785 lbs
Mount Plate
Plate Size 5" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Heavy-Duty Pneumatic Rigid Caster - Enhance Equipment Mobility 785 lb Capacity | 14-Inch Tire...
Shop Product
785 lbs
TieredPricing

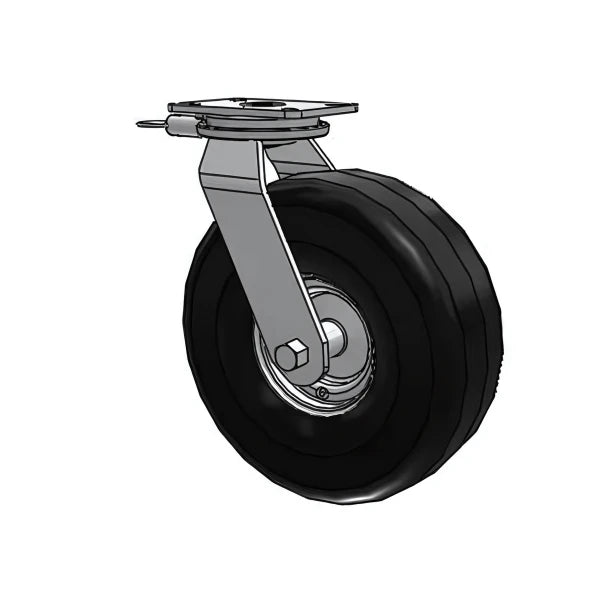

HD Raceway 14"x5.3" Black Pneumatic Caster with Swivel Lock & 785 lb Load Capacity Albion-Casters
Ships in 1-3 Business Days
Albion 14"x5.3" Pneumatic Swivel Caster 7-1/4"x5-1/4" Plate – 785 lb
Part # 90SF14801SL
$590.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 14"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
HD Raceway 14" Pneumatic Caster - Built for Heavy-Duty Performance 785 lb Load Capacity...
Shop Product
785 lbs
TieredPricing

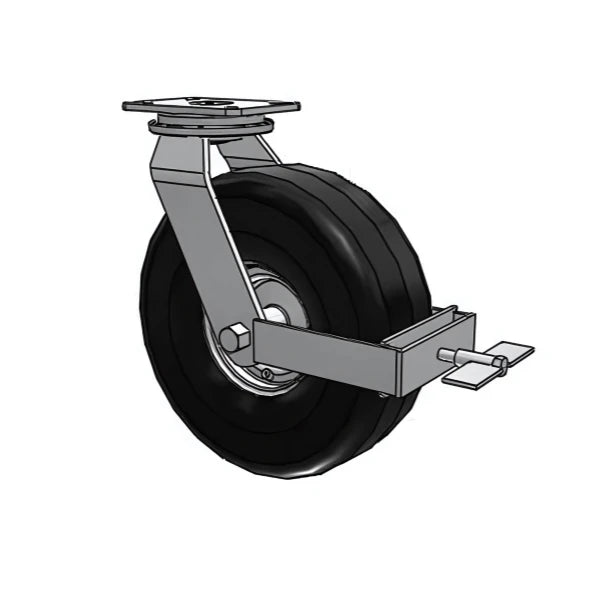

Heavy-Duty 785 lb Capacity Black Swivel Caster with Top Lock - 14"x5.3" Pneumatic Roller Bearing Albion-Casters
Ships in 1-3 Business Days
Albion 90SF14801SF 14" x 5-5" Caster — 785 lb
Part # 90SF14801SF
$712.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 14"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17-3/4"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Temp Range -20°F to 180°F
Rig Type Swivel with Face Contact Brake
Brake Face Contact Brake
Frame Zinc Plated Steel
The Albion 90SF14801SF is a 14" x 5-5" plate caster rated 785 lbs per...
Shop Product
785 lbs
TieredPricing
Ships in 1-3 Business Days
Albion 14" Pneumatic Swivel Caster – 785 lb
Part # 90SF14801S
$435.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 7-1/4"
Capacity 785 lbs
Mount Plate
Plate Size 5-1/4" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
HD Raceway 14" Black Pneumatic Swivel CasterHeavy Duty | 785 lb CapacityUpgrade Your Equipment's...
Shop Product
785 lbs
TieredPricing

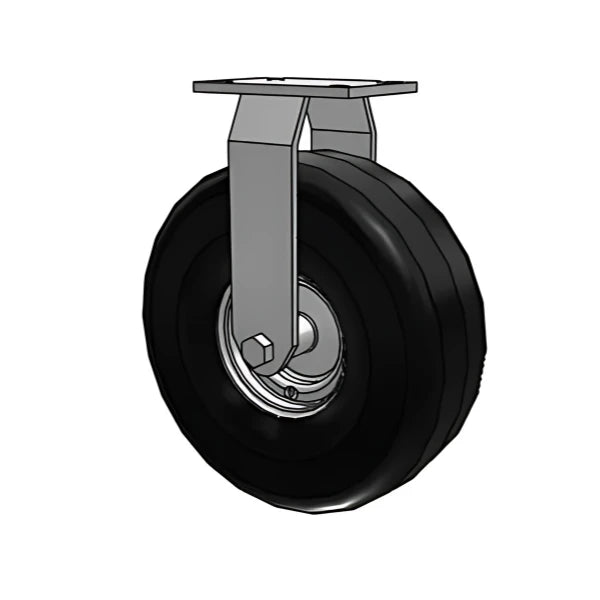

Heavy-Duty 14" Pneumatic Rigid Caster with 785 lb Load Capacity - 7-1/4" x 5" Plate Albion-Casters
Ships in 1-3 Business Days
Albion 14" Pneumatic Rigid Caster – 785 lb
Part # 90SF14801R
$344.00
Volume pricing available
Plate
Load rating
785 lbs
Diameter 7-1/4"
Capacity 785 lbs
Mount Plate
Plate Size 5" x 7-1/4"
More Details Less Details
Width 5-5/16"
Height 17.75"
Bolt Pattern 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
HD Raceway 14" Black Pneumatic Rigid CasterHeavy Duty | 785 lb CapacityUpgrade Your Equipment's...
Shop Product
