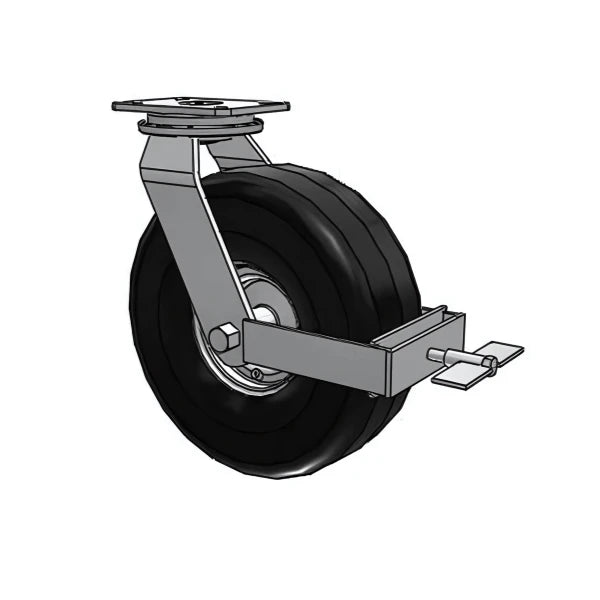

The Albion 90SF14827SF is a 14" x 5-5" black pneumatic plate caster rated 785 lbs per caster, mounted on a 5-1/4" x 7-1/4" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 14" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 90SF14827SF earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 14" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 90SF14827SF is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
785 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 14" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Our caster is designed to handle heavy loads, up to 785 lbs, making it ideal for industrial applications.
The pneumatic tires provide a smooth ride and excellent shock absorption, protecting your equipment from damage.
The ball bearing swivel ensures smooth and effortless maneuverability, even in tight spaces.
The top lock prevents unintentional movement of your equipment, providing added safety and security.
Built to last, our caster features a corrosion-resistant design that can withstand harsh environments.
The caster is designed for quick and easy installation, saving you time and effort.
Our caster is suitable for a variety of applications, including manufacturing, warehousing, and industrial equipment.
Constructed with high-quality materials, our caster is built to withstand the demands of heavy-duty use.
The caster requires minimal maintenance, reducing downtime and costs.
Our caster offers exceptional value, providing reliable performance at a competitive price.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
Our caster is constructed with high-quality materials, including a durable steel frame and heavy-duty pneumatic tires. The swivel mechanism features ball bearings for smooth and quiet operation. The top plate is made of sturdy steel and is designed for easy mounting.
Our heavy-duty caster is suitable for a wide range of applications, including:
This Albion 90SF14827SF 14" x 5-5" Black Pneumatic Caster — 785 lb is rated to 785 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 5-1/4" x 7-1/4" plate and a 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Face Contact Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
The overall height (floor to top of plate or stem) is 17-3/4". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$687.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 14" |
| Wheel Tread Width | 5-5/16" |
| Overall Height | 17-3/4" |
| Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Rig Type | Swivel with Face Contact Brake |
| Load & Performance | |
| Wheel Capacity | 785 lbs |
| Brake Type | Face Contact Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
