The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Under 350 lbs. each
351–675 lbs. each
676–1,250 lbs. each
1,251–2,000 lbs. each
2,001–4,000 lbs. each
4,001–7,500 lbs. each
7,501–10,000 lbs. each
10,001–15,000 lbs. each
15,001–20,000 lbs. each
20,001–30,000 lbs. each
30,000+ lbs. each

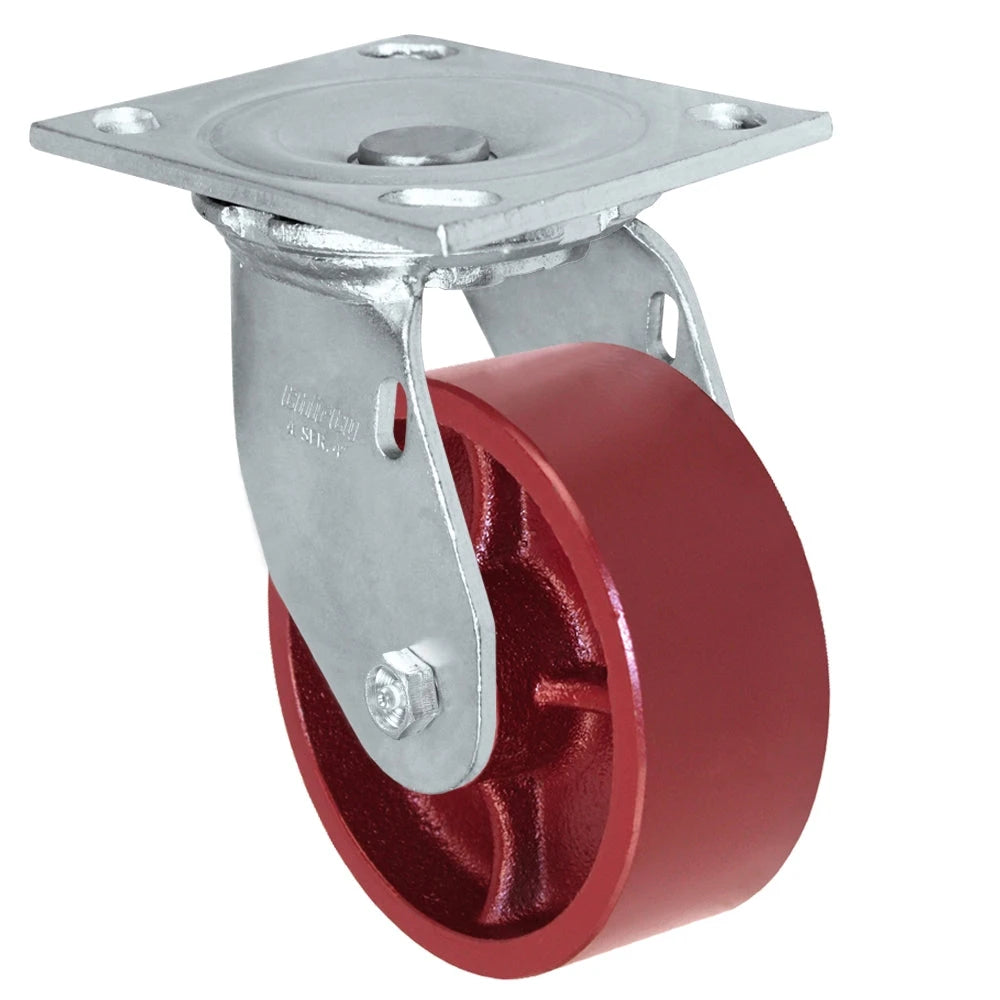

4" x 2" Ductile Steel Casters · 1,250-1,500 lb

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 4 inTread: 2 inCapacity: up to 1,500 lb

Match a 4 x 4-1/2 top plate when bolting casters under warehouse carts, racks, and everyday plant fixtures. Catalog chips cover wheel diameters 4 in, steel treads, and capacities 1,250 to 1,500 lb. Pair swivel and rigid casters for tracking, or use total locks where the cart must park on a grade. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
