The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

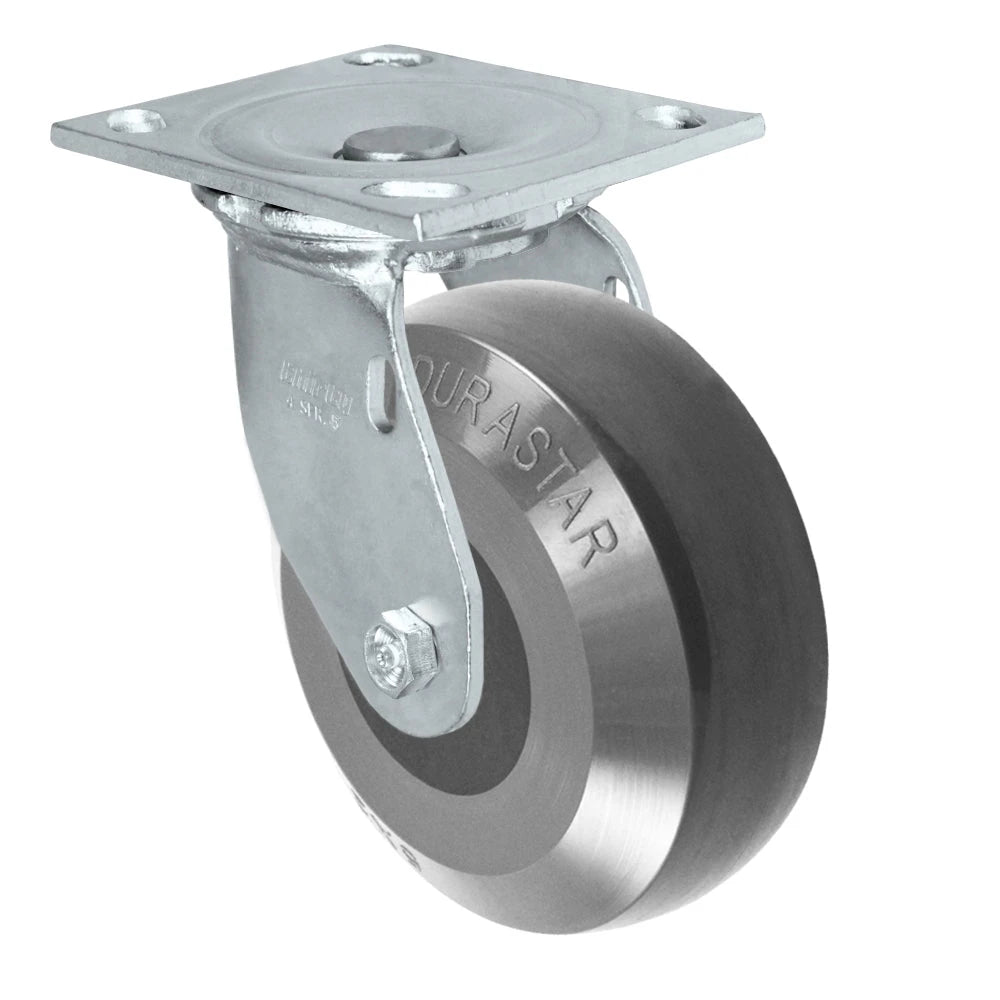

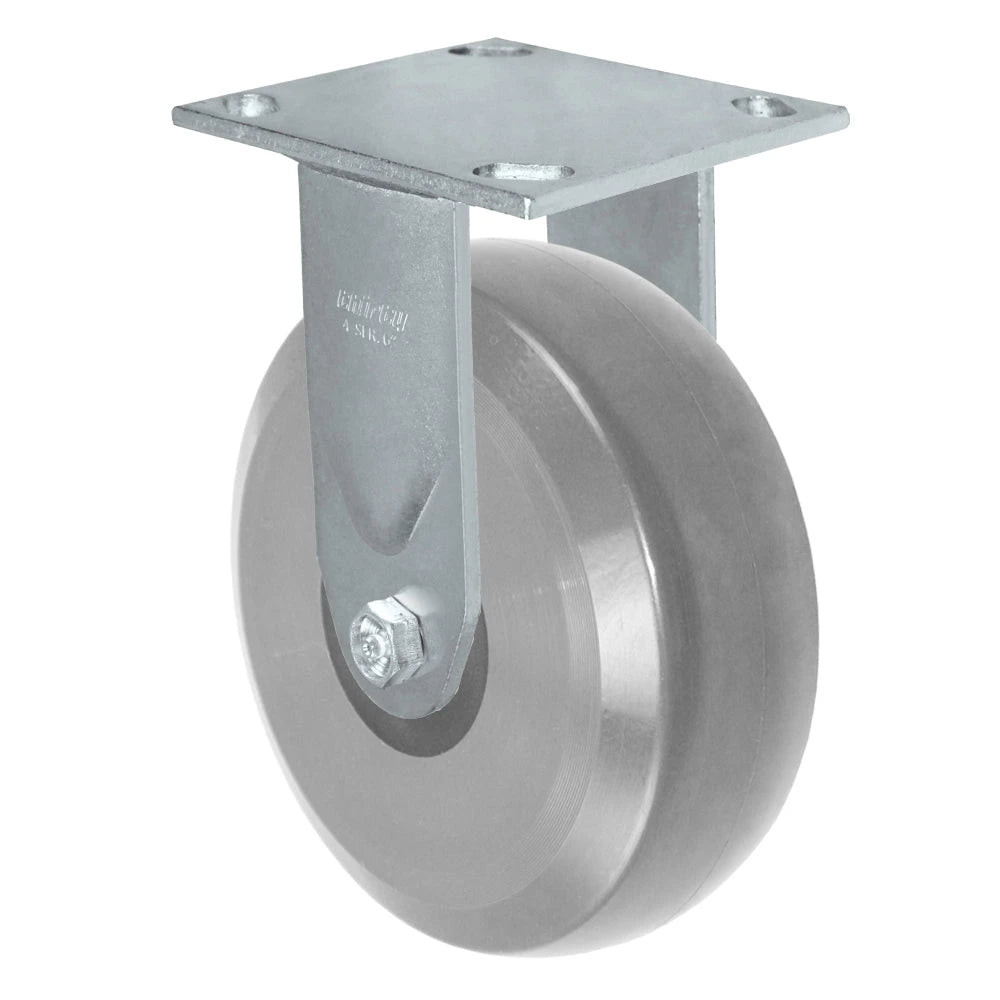

5" x 2" Polyurethane Casters

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 5 inTread: 2 inCapacity: up to 1,250 lb

Casters on the 4 x 4-1/2 plate pattern suit chemical, food-contact, and washdown carts. Catalog chips cover wheel diameters 5 in, polyurethane, nylon, and stainless treads, and capacities 1,250 lb. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. These medium-duty options cover everyday chemical, food-contact, and washdown carts without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
