The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

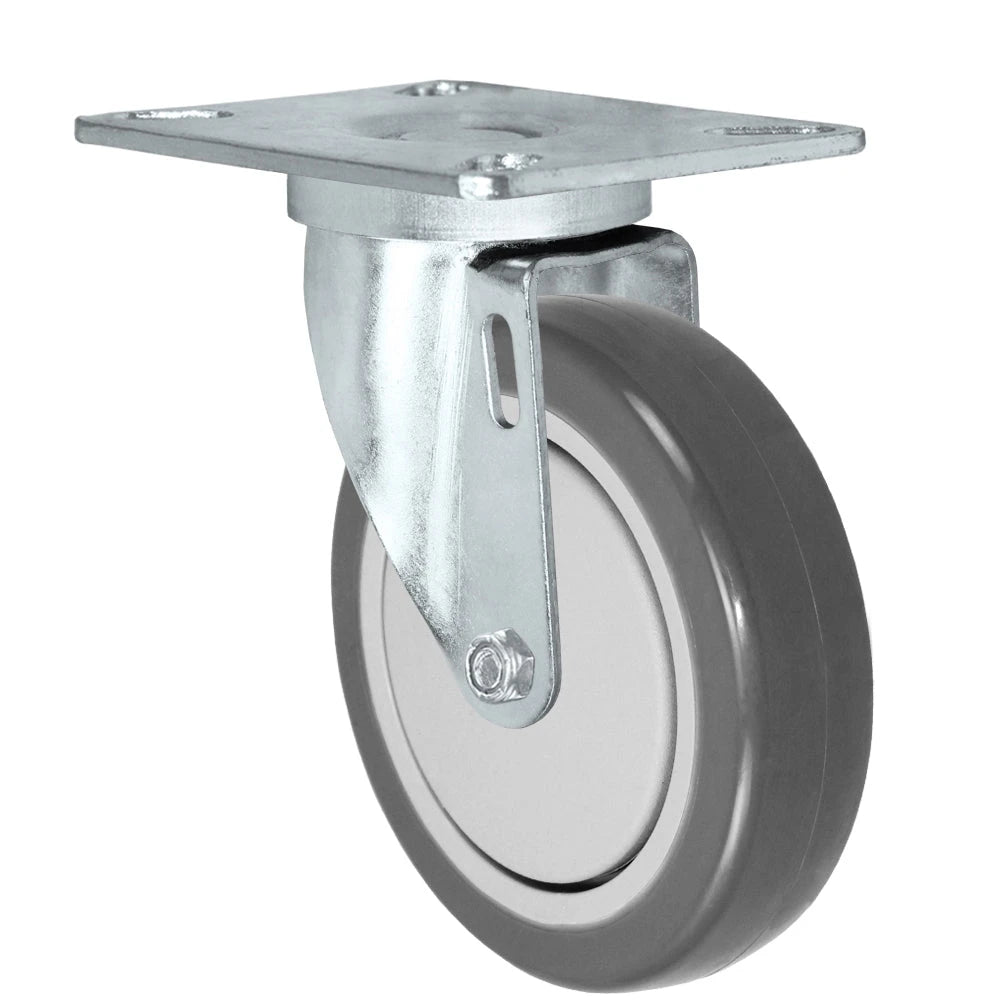

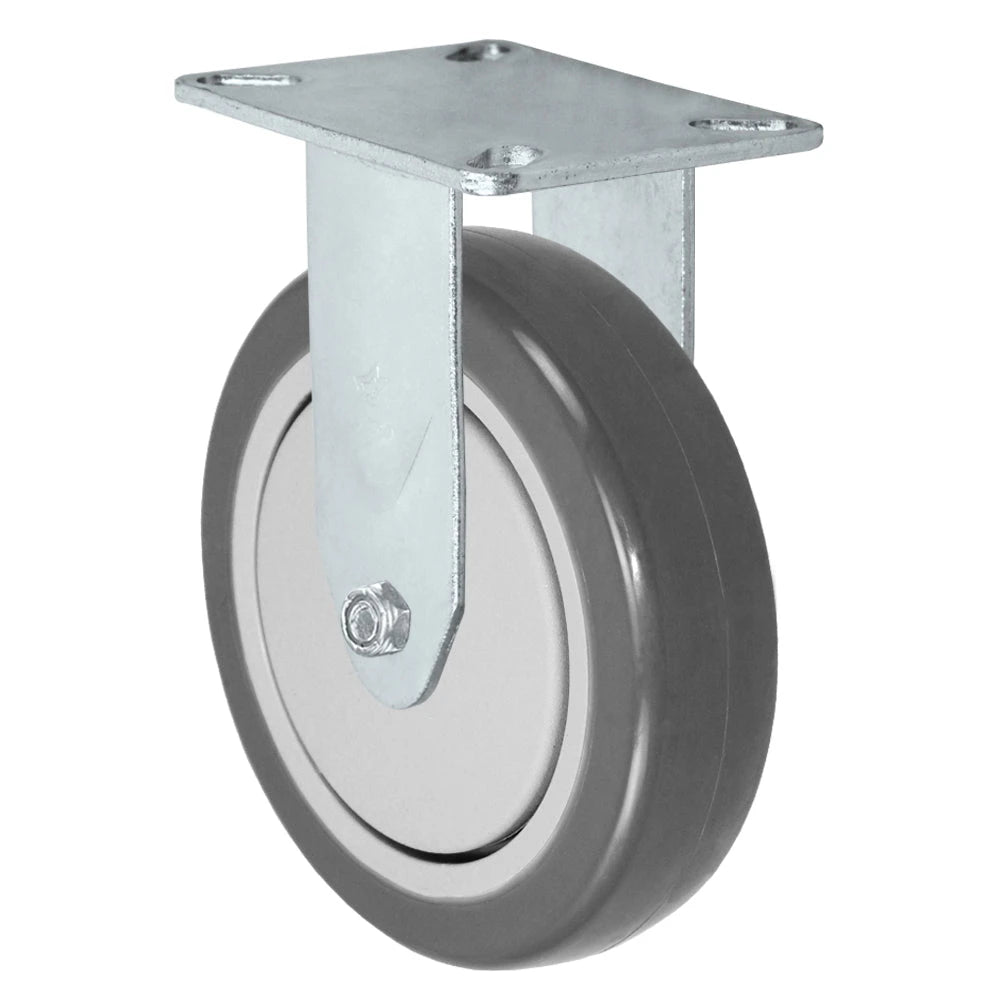

5" x 1-1/4" Polyurethane Casters

Diameter: 5 inTread: 1-1/4 inCapacity: up to 325 lb

5" x 1-1/4" Polyurethane Casters for warehouse carts on epoxy and smooth concrete. Typical builds show wheel diameters 5 in, polyurethane and polyolefin treads, and plate-mount frames. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Replace worn corners in matched sets when possible so the cart tracks straight under load. These light-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
