The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

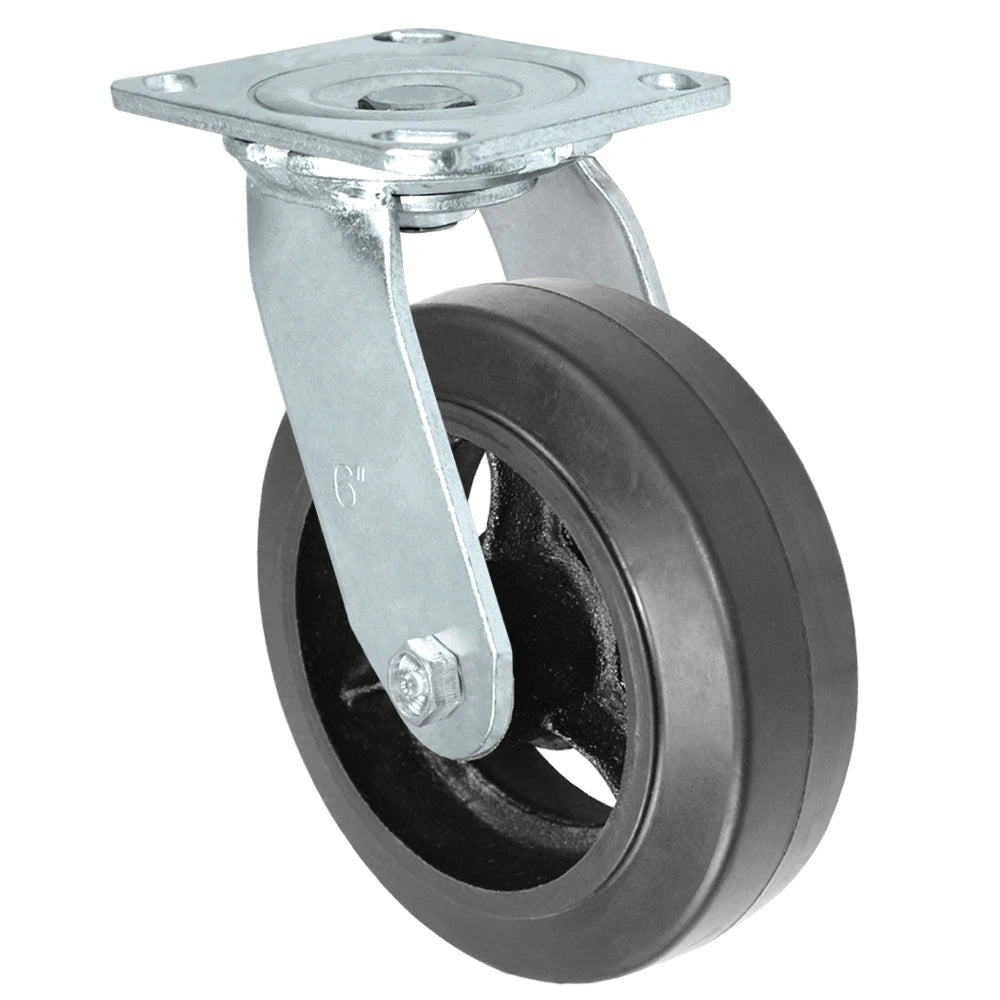

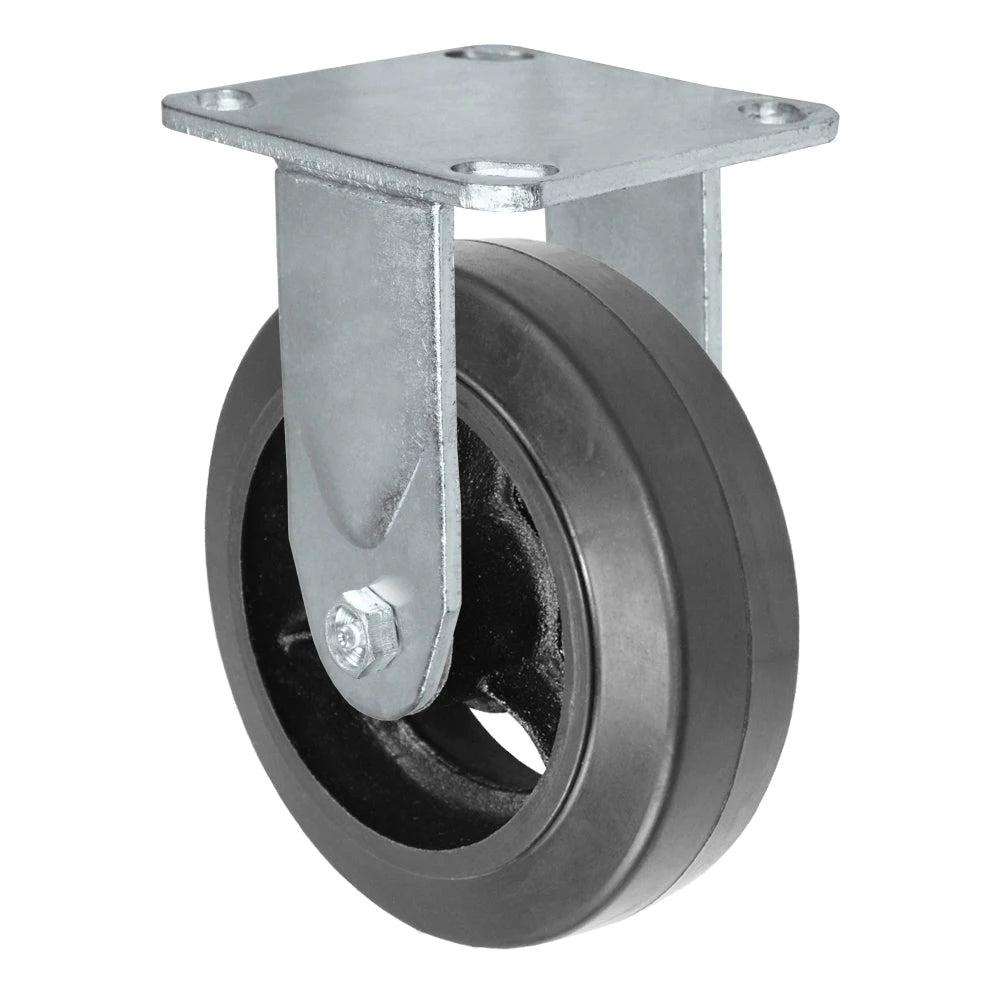

6" x 2" Rubber Casters · 550 lb · 4" x 4-1/2" Plate · Top

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-5/8Diameter: 6 inTread: 2 inCapacity: up to 550 lb

4 x 4-1/2 inch top-plate casters for finished floors and quiet institutional carts. Catalog chips cover wheel diameters 6 in, rubber and steel treads, and capacities 550 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. These light-duty options cover everyday finished floors and quiet institutional carts without jumping to extreme forged series.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
