The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

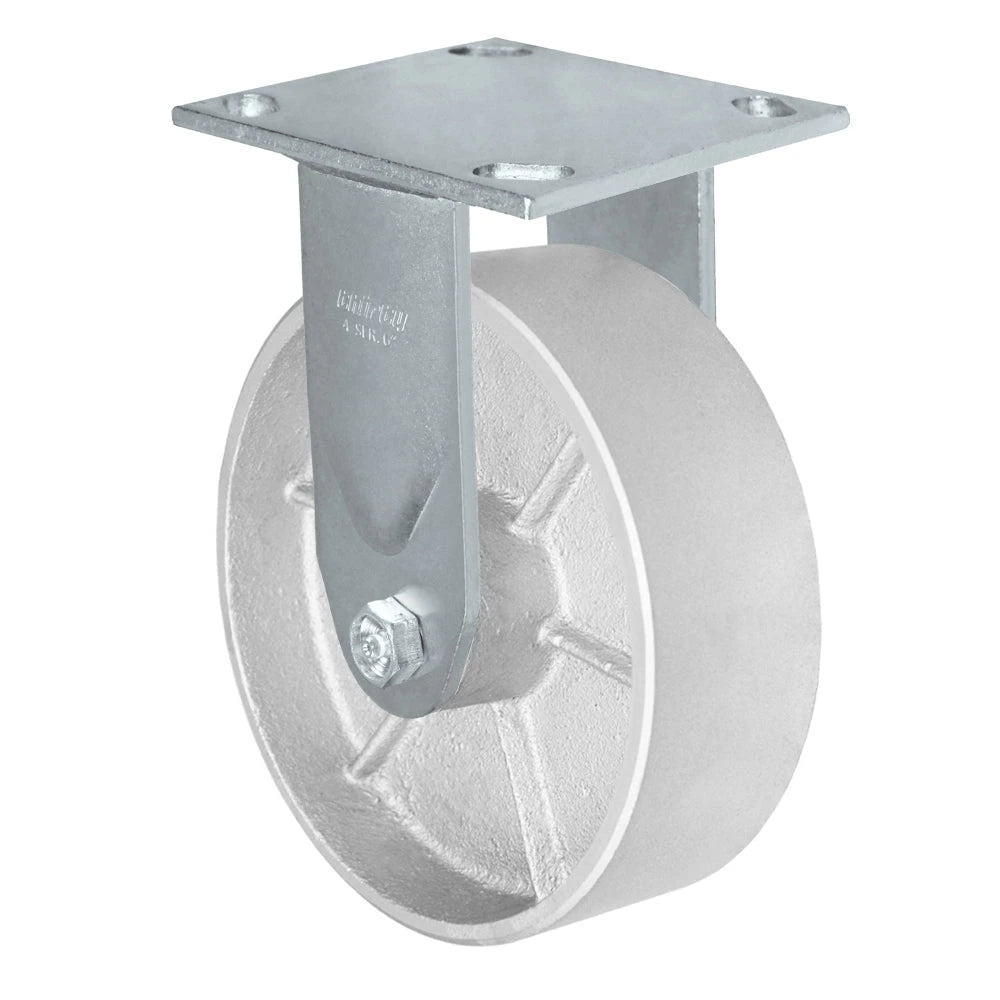

6" x 2" Semi-Steel Casters · 1,200 lb · 4" x 4-1/2" Plate

Plate sizes: 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 6 inTread: 2 inCapacity: up to 1,200 lb

Casters on the 4 x 4-1/2 plate pattern suit warehouse carts, racks, and everyday plant fixtures. Catalog chips cover wheel diameters 6 in, cast iron and steel treads, and capacities 1,200 lb. Size capacity from the heaviest corner load with shock margin, and keep overall height consistent across the set. Softer treads quiet finished floors; harder compounds last longer on chips, heat, and rough concrete.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes

Plate Casters

Stem Casters

Stainless Casters

Ergonomic Casters

Leveling Casters

6" x 2" Semi-Steel Casters · 1,200 lb · 4" x 4-1/2" Plate
