All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.


































| Tread | Core | Wheel sizes | Rated per caster | Listed temperature | Where it fits |
|---|---|---|---|---|---|
| Cast iron | 8 in | 2,500 to 2,800 lb | Up to 800°F | heat, chips and heavy loads on rough floors | |
| Steel | 8 in | 4,100 to 5,400 lb | Up to 800°F | heavy loads and track | |

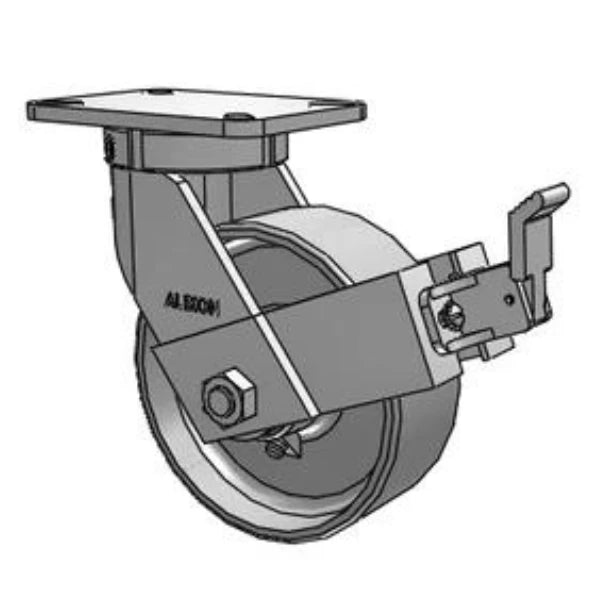

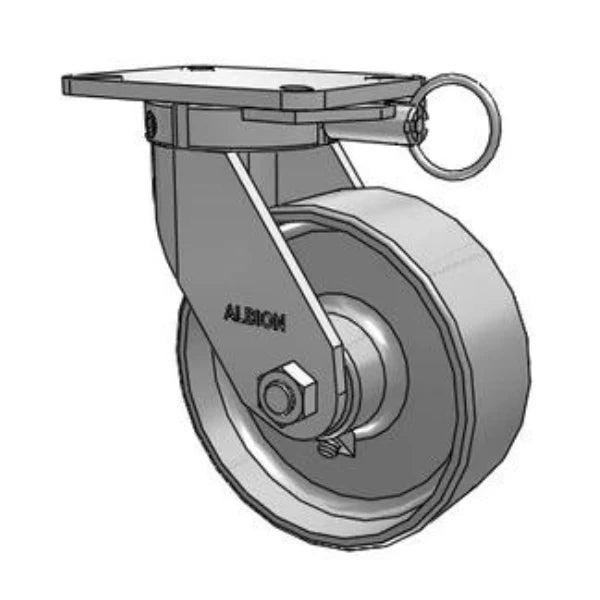

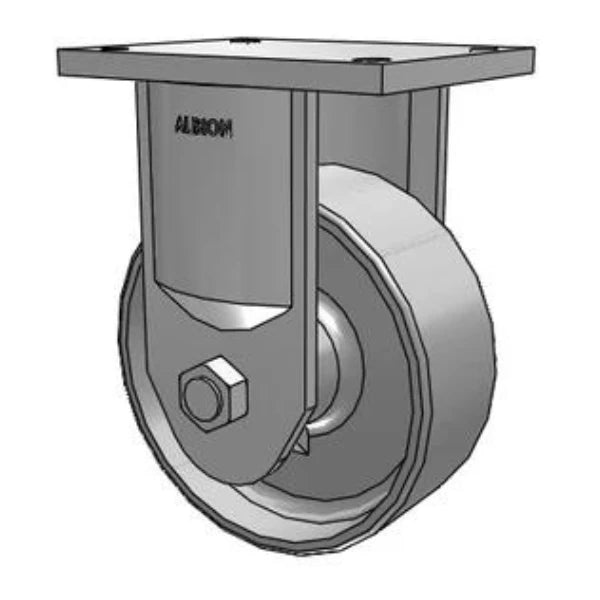

| Forged steel | 8 in | 5,400 to 20,000 lb | Up to 800°F | very high loads and impact |
Ratings are for single casters of Albion casters with 8 in metal wheels, from product fields [S1].
| Wheel | Treads | Rated |
|---|---|---|
| 8 x 3 in | cast iron, steel and forged steel | 2,500 to 5,500 lb |
| 8 x 4 in | forged steel | 10,000 to 20,000 lb |
Single Albion casters with 8 in metal wheels are rated 2,500 to 20,000 lb; most fall between 2,800 and 5,500 lb.
Most Albion casters with 8 in metal wheels use 5-1/4 x 7-1/4 in. Others listed: 4-1/2 x 6-1/4 in and 8-1/2 x 8-1/2 in.
Cast iron leads on Albion casters with 8 in metal wheels, rated 2,500 to 2,800 lb per caster. Steel is next at 4,100 to 5,400 lb.
