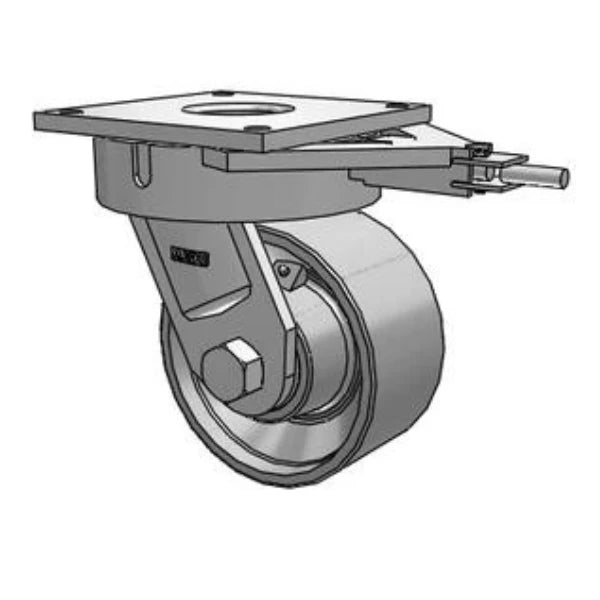

Introducing the Ultimate Kingpinless 8"x4" Large Bore Forged Steel Wheel Caster with Swivel Lock (SKU: 700FH08709SL). This industrial-grade caster is engineered for maximum performance and durability in demanding applications.
Have questions about caster selection for your project? Our caster specialists are here to help weekdays from 8 am to 5 pm. Get the expert guidance you need to ensure you choose the right caster for the job.
Unmatched Performance:
Our heavy-duty casters are ideal for a wide range of industrial applications, including:
Built to Withstand Tough Conditions:
These casters are rigorously tested to meet the demands of industrial environments. They are:
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion 700FH08709SL swivel caster is built to conquer your toughest jobs. This industrial-grade caster features an extra-large 8" wheel diameter and a wide 4" width for superior stability when handling heavy loads.
But that's not all! The Albion 700FH08709SL boasts an impressive 8.5" x 8.5" top plate, ensuring exceptional stability and load distribution. And with a staggering load capacity of 20,000 lbs per caster, you can be confident that this product can handle even the most demanding applications.
Got questions about the Albion 700FH08709SL swivel caster? Our Caster Experts are here weekdays 8 am - 5 pm to help. Get expert advice to ensure you choose the right caster for your project needs.
This Albion 700FH08709SL 8"x4" Forged Steel Swivel Kingpinless Caster – 20,000 lb is rated to 20000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 8-1/2" x 8-1/2" plate and a 7" x 7" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 11". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,699.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 4" |
| Overall Height | 11" |
| Plate Size | 8-1/2" x 8-1/2" |
| Bolt Hole Pattern | 7" x 7" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 20000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
Albion 700FH08709SF 8" x 4" Caster — 20000 lb | CasterHQ
8" x 4" · 20000 lbs · Direct fit
$1,850
Albion 8"x4" Forged Steel Kingpinless Caster 8.5"x8.5" Plate – 20,000 lb | CasterHQ
8" x 4" · 20000 lbs · Direct fit
$1,585
Albion 8"x4" Forged Steel Rigid Kingpinless Caster – 20,000 lb | CasterHQ
8" x 4" · 20000 lbs · Direct fit
$1,077
View all 8′ x 4′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 18000 lbsLighter duty | 8" × 4" | Rigid | 10-1/2" | $1,427.00 | View → | |
| 18000 lbsLighter duty | 8" × 4" | Swivel | 10-1/2" | $1,433.00 | View → | |
| 20000 lbs | 8" × 4" | Swivel | 11" | $1,699.00 | Viewing | |
| 20000 lbsSame capacity | 8" × 4" | — | 11" | $1,850.00 | View → | |
| 20000 lbsSame capacity | 8" × 4" | — | 11" | $1,585.00 | View → |
