All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

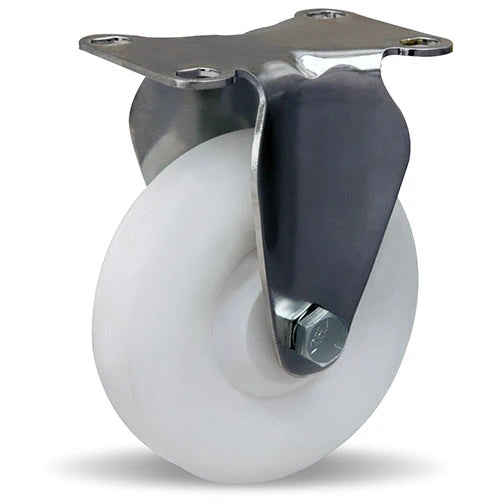

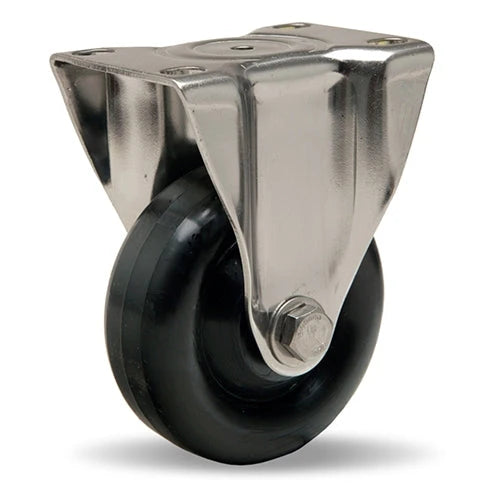

Hamilton Aqualite Wheels redefine the industry standard for "polyolefin" or "polypropylene" wheels. The Aqualite® series stands out with heavy-sectioned hubs and rims, meticulously designed for rigorous industrial use.
Each Aqualite wheel is expertly injection molded using specialized polymers, resulting in:
Aqualite® material outperforms conventional hard rubber wheels by being:
Aqualite® wheels offer cost-effectiveness along with non-marking and non-staining properties, making them an unmatched choice for various applications.
Experience the Hamilton Aqualite difference today!
