8" x 3" Polyurethane Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 12 inTread: 3 inCapacity: 2,860 to 4,000 lb per casterPlate sizes: 5-1/4 x 7-1/4

The six polyurethane casters here come from Hamilton with 6 to 12 in wheels, rated 2,860 to 4,000 lb each. The common top plate is 5-1/4 x 7-1/4 in, and you can pick swivel or rigid and without brakes. Two examples are a Hamilton 6 x 3 in Duralast XC rigid caster rated 2,860 lb and a Hamilton CH-12DB70 12 x 3 in Duralast XC swivel caster rated 4,000 lb.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

3250 lbs

TieredPricing

Hamilton Champion Swivel Caster with 8" x 3" Duralast XC® Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-CH-83DB70 8" x 3" Duralast XC Swivel Sealed Caster – 3250 lb

Part # S-CH-83DB70

from $486.00

Volume pricing available

Polyurethane

Load rating

3250 lbs

Size8" x 3"

Capacity3250 lbs

WheelPolyurethane

Mount—

Type—

More Details Less Details

Width 3"

Height 10-1/2"

Core Cast Iron

Hamilton Champion Swivel Caster with 8" x 3" Duralast XC Polyurethane (70D) on Cast...

Shop Product

2860 lbs

TieredPricing

Hamilton Champion Swivel Caster with 6" x 3" Duralast XC® Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Duralast XC Swivel Caster – 2,860 lb

Part # S-CH-63DB70

from $389.00

Volume pricing available

Polyurethane

Load rating

2860 lbs

Size6" x 3"

Capacity2860 lbs

WheelPolyurethane

Mount—

TypeSwivel

More Details Less Details

Width 3"

Height 8"

Core Cast Iron

Rig Type Swivel

Hamilton Champion Swivel Caster with 6" x 3" Duralast XC® Polyurethane (70D) on Cast...

Shop Product

4000 lbs

TieredPricing

Hamilton Champion Swivel Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton CH-12DB70 12" x 3" Duralast XC Swivel Caster – 4000 lb

Part # S-CH-12DB70

from $691.00

Volume pricing available

PolyurethanePlate

Load rating

4000 lbs

Size12" x 3"

Capacity4000 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 15-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast...

Shop Product

3250 lbs

TieredPricing

Hamilton Champion Rigid Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-CH-83GB95 8" x 3" DuraGlide Rigid Caster – 3250 lb · Model R-CH-83DB70

Part # R-CH-83DB70

$418.00

Volume pricing available

PolyurethanePlate

Load rating

3250 lbs

Size8" x 3"

Capacity3250 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 8" x 3" DuraGlide 1" thick Polyurethane (95A) on...

Shop Product

2860 lbs

TieredPricing

Hamilton Champion Rigid Caster with 6" x 3" Duralast XC® Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Duralast XC Rigid Caster – 2,860 lb

Part # R-CH-63DB70

$261.00

Volume pricing available

Polyurethane

Load rating

2860 lbs

Size6" x 3"

Capacity2860 lbs

WheelPolyurethane

Mount—

TypeRigid

More Details Less Details

Width 3"

Height 8"

Core Cast Iron

Rig Type Rigid

Hamilton Champion Rigid Caster with 6" x 3" Duralast XC® Polyurethane (70D) on Cast...

Shop Product

4000 lbs

TieredPricing

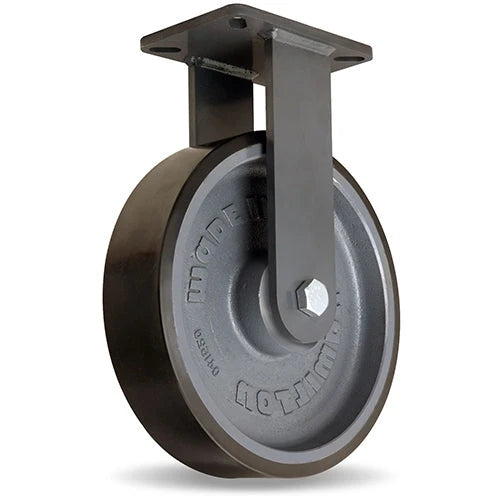

Hamilton Champion Rigid Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton CH-12DB70 12" x 3" Duralast XC Rigid Caster – 4000 lb

Part # R-CH-12DB70

$567.00

Volume pricing available

PolyurethanePlate

Load rating

4000 lbs

Size12" x 3"

Capacity4000 lbs

WheelPolyurethane

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 15-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -5°F to 160°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast...

Shop Product

Champion Caster Series with Duralast XC Polyurethane Wheels

Are you looking for improved rollability and extra capacity in a resilient tread wheel? If so, Hamilton's 70 durometer polyurethane (Shore D) wheels will deliver. Because the polyurethane is harder than standard 95A poly, these wheels roll more easily and carry up to 30% more capacity - thus the suffix XC, as in eXtra Capacity! In addition, they effectively repel foreign objects and debris. Duralast XC's harder tread is best suited for smooth floors. For rough floors, we recommend our Ergo-Glide™ Wheels.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
