Hamilton Champion Swivel Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton Champion Swivel Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$691.00 USD - $804.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-CH-12DB70

Product Overview

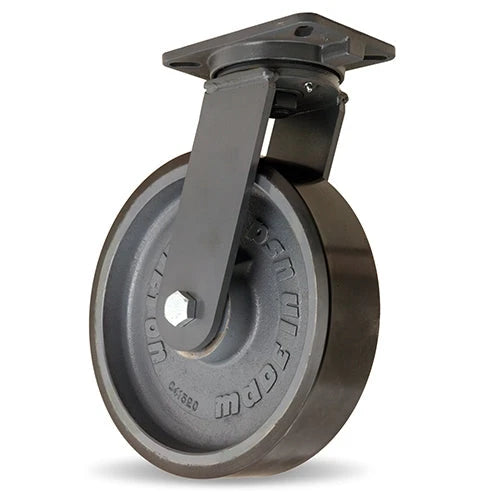

Hamilton Champion Swivel Caster with 12" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Introducing the Hamilton Caster CH-12DB70 Extra Heavy-Duty Champion Caster-Designed to deliver exceptional strength and durability, this caster is engineered to withstand the toughest industrial environments. Whether you need to move heavy machinery, transport bulky equipment, or handle demanding material handling tasks, the CH-12DB70 Champion Caster is the perfect choice.

Built to last-this extra heavy-duty caster boasts a robust construction that can effortlessly handle heavy loads. Its solid steel construction provides unmatched stability and support, ensuring safe and secure movement. The caster features a double-ball raceway design, allowing for smooth and quiet operation while minimizing swivel resistance.

The Hamilton Caster-CH-12DB70 comes equipped with a precision-machined top plate that enables easy installation and secure attachment to your equipment or machinery. With a load capacity of up to 4,000 lbs, you can confidently rely on this caster to handle even the most demanding tasks.

The Champion Caster is equipped with a high performance polyurethane wheel-designed to roll effortlessly across various surfaces. The wheel provides excellent shock absorption, reducing the impact on your equipment and ensuring a smooth ride. Its non-marking composition prevents floor damage, making it ideal for both indoor and outdoor use.

The CH-12DB70 Champion Caster features a swivel design that allows for 360-degree rotation-enabling easy maneuverability and precise positioning. The swivel section is equipped with a hardened, precision-machined raceway, ensuring smooth swiveling motion even under heavy loads. The caster also includes a dependable brake mechanism that securely locks the wheel in place when needed.

Invest in the Hamilton Caster CH-12DB70 Extra Heavy Duty Champion Caster-and experience unparalleled performance, durability, and reliability. Designed for the toughest applications, this caster is built to handle heavy loads with ease, providing you with the confidence and peace of mind you need for your demanding material handling tasks.

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

4000

Wheel Diameter (in.)

Wheel Face (in.)

Overall Height (in.)

12.5

Swivel Offset (in.)

2.5

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

Duralast XC
Wheel Color/Finish

Black Tread on Alum Center

Replacement Wheel

W-1230-DB70-3/4

Wheel Material @ Tread

Polyurethane

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Note

The four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra-heavy-duty design for demanding industrial environments

Solid-steel construction for superior strength and stability

Precision-machined top plate for easy installation

High-load capacity of up to 4,000 lbs

High-performance polyurethane wheel for effortless rolling and shock absorption

Non-marking-wheel composition to prevent floor damage

360-degree-swivel for easy maneuverability and precise positioning

Hardened-precision-machined raceway for smooth swiveling motion

Reliable-brake mechanism for secure locking when needed
