Polyurethane Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6, 8, 10, 12 inTread: 3 inCapacity: up to 5,000 lb

Polyurethane casters here serve warehouse carts on epoxy and smooth concrete. Typical builds show wheel diameters 6, 8, 10, 12 in, polyurethane treads, and plate-mount frames. Use kingpinless or heavy plate series when shock loads keep shearing kingpin races. When floors see chemicals or washdowns, prefer sealed bearings and non-absorbent wheel compounds. These heavy-duty options cover everyday warehouse carts on epoxy and smooth concrete without jumping to extreme forged series.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

2700 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-83EGB 8" x 3" Polyurethane Swivel Caster – 2700 lb

Part # S-EHD-83EGB

from $600.00

Volume pricing available

PolyurethanePlate

Load rating

2700 lbs

Size8" x 3"

Capacity2700 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 8" x 3" Ergo-Glide XT 1" Thick...

Shop Product

2400 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-63EGB 6" x 3" Polyurethane Swivel Caster – 2400 lb

Part # S-EHD-63EGB

from $522.00

Volume pricing available

PolyurethanePlate

Load rating

2400 lbs

Size6" x 3"

Capacity2400 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 6" x 3" Ergo-Glide XT 1" Thick...

Shop Product

3200 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-13EGB 10" x 3" Polyurethane Swivel Caster – 3200 lb

Part # S-EHD-13EGB

from $659.00

Volume pricing available

PolyurethanePlate

Load rating

3200 lbs

Size10" x 3"

Capacity3200 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 10" x 3" Ergo-Glide XT 1" Thick...

Shop Product

3800 lbs

TieredPricing

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-EHD-12EGB 12" x 3" Polyurethane Swivel Caster – 3800 lb

Part # S-EHD-12EGB

from $762.00

Volume pricing available

PolyurethanePlate

Load rating

3800 lbs

Size12" x 3"

Capacity3800 lbs

WheelPolyurethane

MountPlate 6-1/8" x 7-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 14-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Ergo-Glide XT 1" Thick...

Shop Product

2700 lbs

TieredPricing

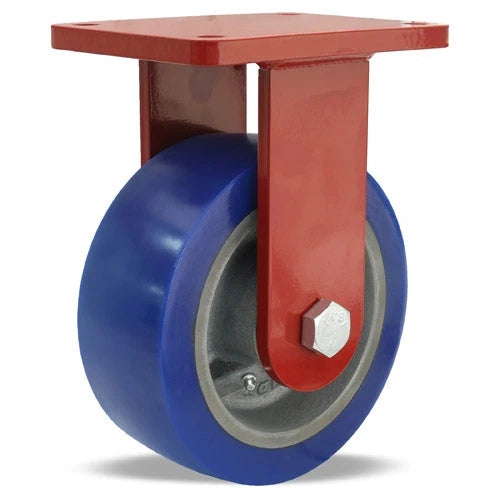

Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-83EGB 8" x 3" Polyurethane Rigid Caster – 2700 lb

Part # R-EHD-83EGB

$427.00

Volume pricing available

PolyurethanePlate

Load rating

2700 lbs

Size8" x 3"

Capacity2700 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 8" x 3" Ergo-Glide XT 1" Thick...

Shop Product

2400 lbs

TieredPricing

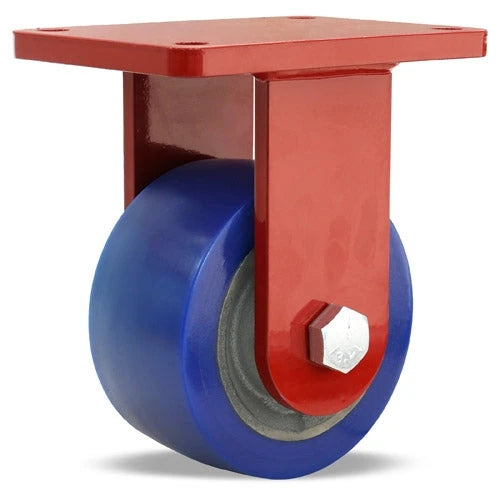

Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-63EGB 6" x 3" Polyurethane Rigid Caster – 2400 lb

Part # R-EHD-63EGB

$324.00

Volume pricing available

PolyurethanePlate

Load rating

2400 lbs

Size6" x 3"

Capacity2400 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 8-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 6" x 3" Ergo-Glide XT 1" Thick...

Shop Product

3200 lbs

TieredPricing

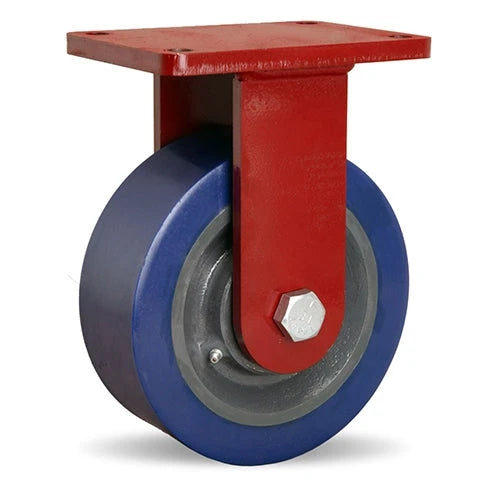

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-13EGB 10" x 3" Polyurethane Rigid Caster – 3200 lb

Part # R-EHD-13EGB

$519.00

Volume pricing available

PolyurethanePlate

Load rating

3200 lbs

Size10" x 3"

Capacity3200 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 10" x 3" Ergo-Glide XT 1" Thick...

Shop Product

3800 lbs

TieredPricing

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-EHD-12EGB 12" x 3" Polyurethane Rigid Caster – 3800 lb

Part # R-EHD-12EGB

$636.00

Volume pricing available

PolyurethanePlate

Load rating

3800 lbs

Size12" x 3"

Capacity3800 lbs

WheelPolyurethane

MountPlate 5-1/2" x 7-1/2"

TypeRigid

More Details Less Details

Width 3"

Height 14-1/2"

Bolt Pattern 4-1/8" x 6-1/8"

Core Cast Iron

Temp Range -50°F to 200°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton Extra Heavy Duty Rigid Caster with 12" x 3" Ergo-Glide XT 1" Thick...

Shop Product

Extra Heavy Duty Caster Series with Ergo-Glide XT Wheels

The new Ergo-Glide XT is your best choice among polyurethane wheels for extra heavy loads in environments where cushioning, quiet operation, and/or debris rejection are top priorities. The Ergo-Glide XT is essentially the “big brother” of our popular Ergo-Glide wheels and both are the top poly performers in repelling foreign objects and debris. Factory personnel will also benefit from this wheel’s quiet ride to reduce noise.

The ‘XT’ stands for “Extra Thick” or 1” thick of our quietest rolling polyurethane. The 1” thick tread boasts a higher load capacity than the majority of our polyurethane wheel offerings. The slightly softer 82A urethane combined with the 1” thick tread also allow the wheel to roll over obstacles more easily as the tread will tend to conform to the obstacle rather than roll up and over it.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
