Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$762.00 USD - $875.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-EHD-12EGB

Product Overview

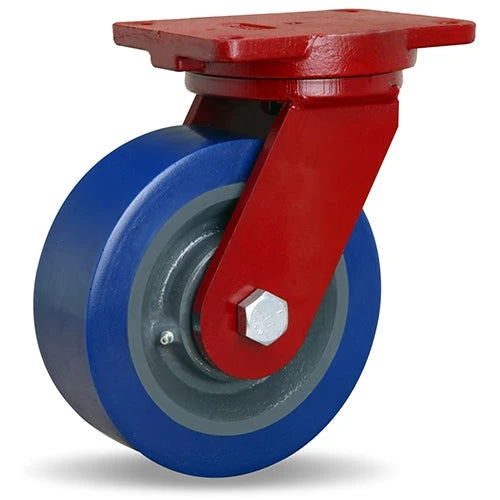

Hamilton Extra Heavy Duty Swivel Caster with 12" x 3" Ergo-Glide XT 1" Thick Polyurethane (85A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Enhance the performance and mobility of your equipment with the Hamilton Caster Part#: S-EHD-12EGB. Designed with superior quality and durability in mind, this caster is a reliable choice for a wide range of industrial applications. Whether you need to move heavy machinery, transport bulky items, or maneuver in tight spaces, this caster is up to the task.

Crafted with precision engineering, the Hamilton Caster Part#: S-EHD-12EGB combines strength and flexibility to provide optimal performance. Its robust construction ensures long-lasting use, even in demanding environments. The caster features a 12-inch wheel diameter, offering excellent load-bearing capacity and stability. With its enhanced ergonomic design, it provides smooth and effortless movement, allowing you to navigate obstacles with ease.

The S-EHD-12EGB caster is equipped with a strong and reliable braking mechanism, ensuring secure and controlled stops when needed. Its ergonomic swivel design enables 360-degree rotation, providing maximum maneuverability and flexibility in any direction. This makes it an ideal choice for applications that require precise positioning or frequent changes in direction.

Upgrade your equipment with the Hamilton Caster Part#: S-EHD-12EGB and experience enhanced mobility and performance. Trust in its exceptional durability and reliable functionality to meet your industrial needs.

Technical Specs

Swivel or Rigid caster Swivel
Load Capacity (lbs.) @ 3 mph 3800 lbs
Wheel Diameter (in.) 12
Wheel Face (in.) 3
Overall Height (in.) 14.5
Swivel Offset (in.) 2.5
Mounting Plate (in.) 6 1/8 x 7 1/2
Bolt Hole 1 (in.) 4 1/8 x 6 1/8
Mounting Bolt (in.) 0.5
Caster Color/Finish Crimson Powder
Wheel Type Ergo-Glide XT
Wheel Color/Finish Blue Poly on Gray Center
Bearing Type Precision Sealed Ball
Replacement Wheel W-1231-EGB-3/4
Wheel Material @ Tread Polyurethane
Shipping Weight (lbs.) 62
Caster Rig Type Integral Forged Kingpin
Wheel Core Material Cast Iron

Key Features

High-quality construction for durability and reliability.
12-inch wheel diameter for superior load-bearing capacity and stability.
Ergonomic swivel design for effortless maneuverability.
Strong braking mechanism for secure and controlled stops.
360-degree rotation for maximum flexibility and precise positioning.
Suitable for a wide range of industrial applications.
Built to withstand demanding environments.
Easy to install and compatible with various equipment.
