Forged Steel Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 10 inTread: 2-1/2 to 3 inCapacity: 3,500 to 4,000 lb per casterPlate sizes: 5-1/4 x 7-1/4

You get eight steel casters here from Hamilton with 6 to 10 in wheels, rated 3,500 to 4,000 lb each. All mount on a 5-1/4 x 7-1/4 in plate, and you can pick swivel or rigid, with no brake options. You will find a Hamilton 6 x 3 in forged steel rigid caster rated 4,000 lb and a Hamilton S-CH-83FSB 8 x 3 in forged steel swivel caster rated 4,000 lb here. Temperature ratings sit at -40°F to 320°F for most of the page.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

4000 lbs

TieredPricing

Hamilton Champion Swivel Caster with 6" x 3" Forged Steel Wheel with 3/4" Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Forged Steel Swivel Caster – 4000 lb

Part # S-CH-63FSB

from $647.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size6" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range Up to 800°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 6" x 3" Forged Steel Wheel with 3/4" Precision...

Shop Product

3500 lbs

TieredPricing

Hamilton Champion Rigid Caster with 6" x 2 1/2" Forged Steel Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 2 1/2" Forged Steel Rigid Caster – 3500 lb

Part # R-CH-6FSH

$305.00

Volume pricing available

SteelPlate

Load rating

3500 lbs

Size6" x 2-1/2"

Capacity3500 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range Up to 800°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 6" x 2 1/2" Forged Steel Wheel with 1"...

Shop Product

4000 lbs

TieredPricing

Hamilton Champion Rigid Caster with 6" x 3" Forged Steel Wheel with 3/4" Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 3" Forged Steel Rigid Caster – 4000 lb

Part # R-CH-63FSB

$372.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size6" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range Up to 800°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 6" x 3" Forged Steel Wheel with 3/4" Precision...

Shop Product

4000 lbs

TieredPricing

Hamilton Champion Swivel Caster with 8" x 3" Forged Steel Wheel with 3/4" Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-CH-83FSB 8" x 3" Forged Steel Swivel Caster – 4000 lb

Part # S-CH-83FSB

from $561.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size8" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 8" x 3" Forged Steel Wheel with 3/4" Precision...

Shop Product

3500 lbs

TieredPricing

Hamilton Champion Swivel Caster with 6" x 2 1/2" Forged Steel Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton 6" x 2-1/2" Forged Steel Swivel Caster – 3,500 lb

Part # S-CH-6FSH

from $465.00

Volume pricing available

SteelPlate

Load rating

3500 lbs

Size6" x 2-1/2"

Capacity3500 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 8"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range Up to 800°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 6" x 2 1/2" Forged Steel Wheel with 1"...

Shop Product

4000 lbs

TieredPricing

Hamilton Champion Swivel Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton CH-13FSB 10" x 3" Forged Steel Swivel Caster – 4000 lb

Part # S-CH-13FSB

from $649.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size10" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeSwivel

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Platinum Powder

Hamilton Champion Swivel Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed...

Shop Product

4000 lbs

TieredPricing

Hamilton R-CH-83FSB 8" x 3" Forged Steel Rigid Caster – 4000 lb | CasterHQ

Made to Order · 4-6 Wk

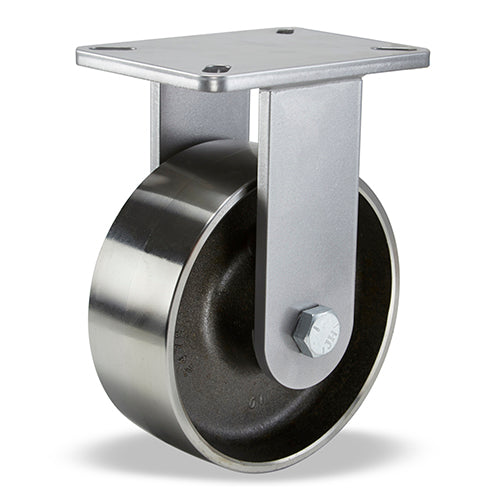

Hamilton R-CH-83FSB 8" x 3" Forged Steel Rigid Caster – 4000 lb

Part # R-CH-83FSB

$432.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size8" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 10-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 8" x 3" Forged Steel Wheel with 3/4" Precision...

Shop Product

4000 lbs

TieredPricing

Hamilton Champion Rigid Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton CH-13FSB 10" x 3" Forged Steel Rigid Caster – 4000 lb

Part # R-CH-13FSB

$528.00

Volume pricing available

SteelPlate

Load rating

4000 lbs

Size10" x 3"

Capacity4000 lbs

WheelSteel

MountPlate 5-1/4" x 7-1/4"

TypeRigid

More Details Less Details

Width 3"

Height 12-1/2"

Bolt Pattern 3-3/8" x 5-1/4" and 4-1/8" x 6-1/8"

Core Steel

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Platinum Powder

Hamilton Champion Rigid Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed...

Shop Product

Champion Caster Series with Forged Steel Wheels

Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity.

Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes
