The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

8" x 3" Forged Steel Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 10 inTread: 3 inCapacity: 4,000 to 6,000 lb per casterPlate sizes: 5-1/4 x 7-1/4

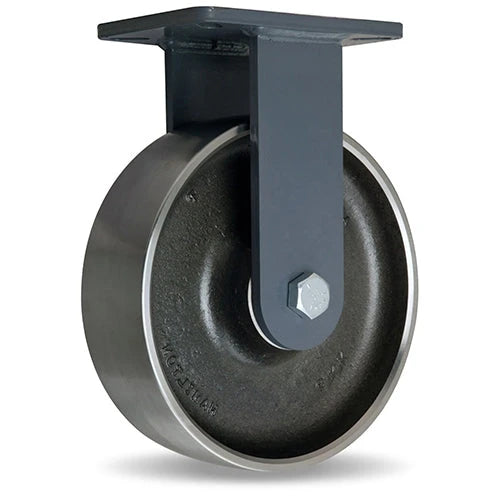

The six forged steel casters here come from Hamilton with 6 to 10 in wheels, rated 4,000 to 6,000 lb each. Most use a 5-1/4 x 7-1/4 in top plate, and you can pick swivel or rigid, with no brake options. Picks range from a Hamilton R-SEC-13FSB 10 x 3 in forged steel rigid caster rated 6,000 lb to a Hamilton S-SEC-83FSB 8 x 3 in forged steel swivel kingpinless caster rated 6,000 lb.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

Super Endurance Caster Series with Forged Steel Wheels

Forging technology produces the ultimate tensile strength in industrial wheels. Coupled with solid billet design, this makes Hamilton Forged Steel Wheels virtually indestructible. Consequently, load limits are governed by bearing capacity.

Wheel treads are machined smooth and concentric, with a slight crown that lessens energy requirements by aiding turnability under heavy loads.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"

View All • 21 Plate Sizes
