Cast Iron Casters

Custom made to order. All sales final.

Each Hamilton product is custom manufactured for your order (lead time is shown on each product page). Please confirm all specs before checkout, since made-to-order items aren't eligible for returns, exchanges or refunds. Need help? Call 844-439-4335 or email info@casterhq.com and we'll verify fit for you.

Diameter: 6 to 10 inTread: 2-1/2 to 3 inCapacity: 2,200 to 2,600 lb per casterPlate sizes: 4-1/2 x 6-1/2, 5 x 7

This page lists eight cast iron casters with 6 to 10 in wheels, rated 2,200 to 2,600 lb each, made by Hamilton. Most use a 4-1/2 x 6-1/2 in top plate, with 5 x 7 in also offered, in both swivel and rigid, and none has a brake. You will find a Hamilton R-FM-10MH 10 x 2 1/2 in metal rigid caster rated 2,200 lb and a Hamilton R-FM-13MB 10 x 3 in cast iron rigid caster rated 2,600 lb here. The usual temperature rating here is -40°F to 320°F.

Shop by type

3 types

Wheel = wheel diameter · capacity is per caster.

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 8" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-8MH 8" x 2 1/2" Metal Swivel Caster – 2200 lb

Part # S-FM-8MH

from $365.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size8" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 10-1/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 8" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 6" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-6MH 6" x 2 1/2" Metal Swivel Caster – 2200 lb

Part # S-FM-6MH

from $325.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size6" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 7-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 6" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 10" x 3" Cast Iron Metal Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-13MB 10" x 3" Cast Iron Swivel Caster – 2200 lb

Part # S-FM-13MB

from $345.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size10" x 3"

Capacity2200 lbs

WheelCast Iron

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 3"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range Up to 800°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 10" x 3" Cast Iron Metal Wheel with 3/4"...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton S-FM-10MH 10" x 2 1/2" Metal Swivel Caster – 2200 lb

Part # S-FM-10MH

from $409.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size10" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 4-1/2" x 6-1/2"

TypeSwivel

More Details Less Details

Width 2-1/2"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Swivel

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Swivel Caster with 10" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Rigid Caster with 8" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-8MH 8" x 2 1/2" Metal Rigid Caster – 2200 lb

Part # R-FM-8MH

$271.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size8" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 10-1/4"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 8" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

2200 lbs

TieredPricing

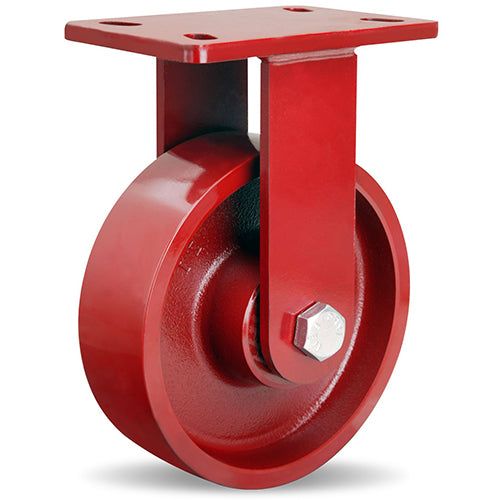

Hamilton R-FM-6MH 6" x 2 1/2" Metal Rigid Caster – 2200 lb | CasterHQ

Made to Order · 4-6 Wk

Hamilton R-FM-6MH 6" x 2 1/2" Metal Rigid Caster – 2200 lb

Part # R-FM-6MH

$226.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size6" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 4-1/2" x 6-1/2"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 7-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 6" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

2600 lbs

TieredPricing

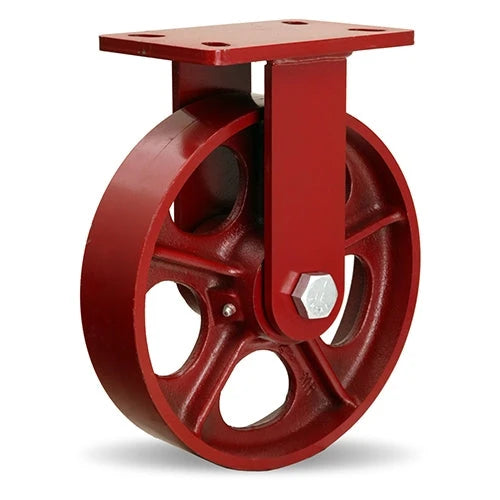

Hamilton ForgeMaster Rigid Caster with 10" x 3" Cast Iron Metal Wheel with 3/4" Sealed Precision Ball Bearings Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-13MB 10" x 3" Cast Iron Rigid Caster – 2600 lb

Part # R-FM-13MB

$245.00

Volume pricing available

Cast IronPlate

Load rating

2600 lbs

Size10" x 3"

Capacity2600 lbs

WheelCast Iron

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 3"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 10" x 3" Cast Iron Metal Wheel with 3/4"...

Shop Product

2200 lbs

TieredPricing

Hamilton ForgeMaster Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight Roller Bearing Hamilton

Made to Order · 4-6 Wk

Hamilton R-FM-10MH 10" x 2 1/2" Metal Rigid Caster – 2200 lb

Part # R-FM-10MH

$279.00

Volume pricing available

Cast IronPlate

Load rating

2200 lbs

Size10" x 2-1/2"

Capacity2200 lbs

WheelCast Iron

MountPlate 5" x 7"

TypeRigid

More Details Less Details

Width 2-1/2"

Height 11-1/2"

Bolt Pattern 2-7/16" x 4-15/16" and 3-3/8" x 5-1/4"

Core Cast Iron

Temp Range -40°F to 320°F

Rig Type Rigid

Brake No Brake

Frame Crimson Powder

Hamilton ForgeMaster Rigid Caster with 10" x 2 1/2" Metal Wheel with 1" Straight...

Shop Product

ForgeMaster Caster Series with Metal Wheels

With one of the industry's largest lines of metal wheels (most are cast iron, a few of the smaller sizes sintered iron), Hamilton has come to be known as the first place to go for new or replacement metal wheels. In the last three years, the most popular metal wheel sizes have been upgraded with larger hubs and less scrap metal content to represent the most durable and highest quality metal wheels in the industry.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″

BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″

BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)

BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"

(3″ Wide Casters), Industry-Standard

BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"

BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
