Phenolic Casters · 800–1,400 lb · 4-1/2" x 6-1/4" Plate

Diameter: 4 to 8 inTread: 2 inPlate: 4-1/2 x 6-1/4 inCapacity: 800 to 1,400 lb per caster
This page lists phenolic casters on a 4-1/2 x 6-1/4 in plate. Phenolic is the most common tread here, rated 800 to 1,400 lb per caster in 4, 5, 6 and 8 in.
1200 lbs
TieredPricing
6 Inch x 2 Inch Phenolic Swivel Caster - 1200 lbs Capacity | Heavy Duty Plate Mount CasterHQ
In Stock · Same/Next Day
6" x 2" Phenolic Swivel Caster – 1200 lb
Part # HQ2060S-PL3-PHR
from $33.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Size6" x 2"
Capacity1200 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
800 lbs
TieredPricing
4" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4" | Capacity: 800lbs CasterHQ
In Stock · Same/Next Day
4" x 2" Phenolic Swivel Caster 4-1/2" x 6-1/4" Plate – 800 lb
Part # HQ2040S-PL3-PHR
from $29.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
4" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
1400 lbs
TieredPricing
8" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4" | Capacity: 1,400 lbs CasterHQ
In Stock · Same/Next Day
8" x 2" Phenolic Swivel Caster – 1,400 lb
Part # HQ2080S-PL3-PHR
from $38.00
Volume pricing available
PhenolicPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
1000 lbs
TieredPricing
5" x 2" Phenolic Swivel Caster – 1,000 lb | Top Plate 4-1/2" x 6-1/4" | CasterHQ
In Stock · Same/Next Day
5" x 2" Phenolic Swivel Caster – 1,000 lb
Part # HQ2050S-PL3-PHR
from $31.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeSwivel
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Phenolic Wheel | Swivel Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
1200 lbs
TieredPricing

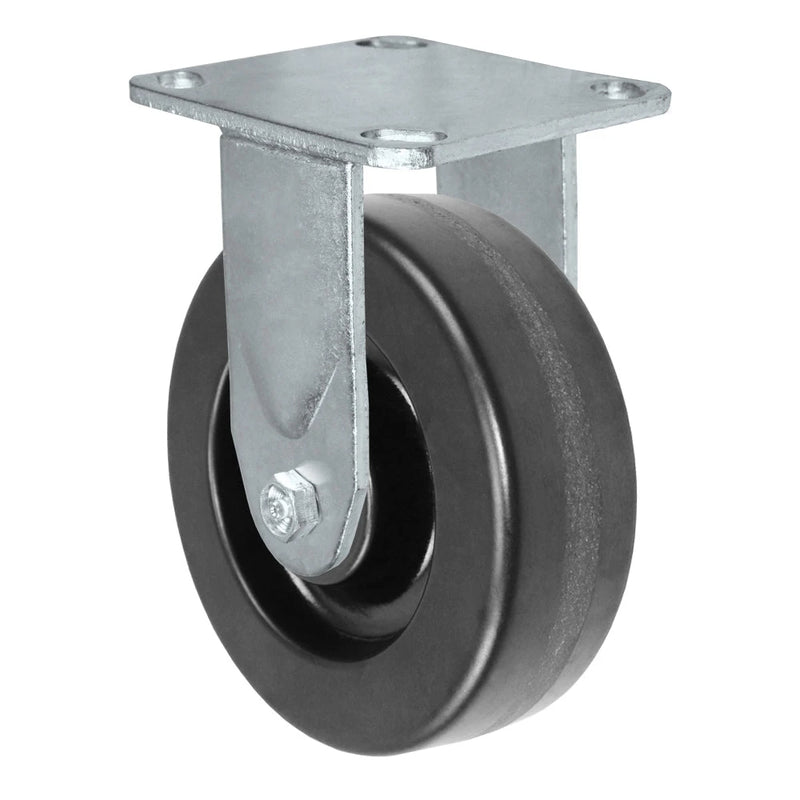

6" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4" | Capacity: 1,200 lbs CasterHQ
In Stock · Same/Next Day
6" x 2" Phenolic Rigid Caster – 1,200 lb
Part # HQ2060R-PL3-PHR
from $26.00
Volume pricing available
PhenolicPlate
Load rating
1200 lbs
Size6" x 2"
Capacity1200 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 7-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
6" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
1000 lbs
TieredPricing
5" x 2" Phenolic Rigid Caster – 1,000 lb | 4-1/2" x 6-1/4" Plate | CasterHQ
In Stock · Same/Next Day
5" x 2" Phenolic Rigid Caster – 1,000 lb
Part # HQ2050R-PL3-PHR
from $25.00
Volume pricing available
PhenolicPlate
Load rating
1000 lbs
Size5" x 2"
Capacity1000 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 6-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
5" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
800 lbs
TieredPricing

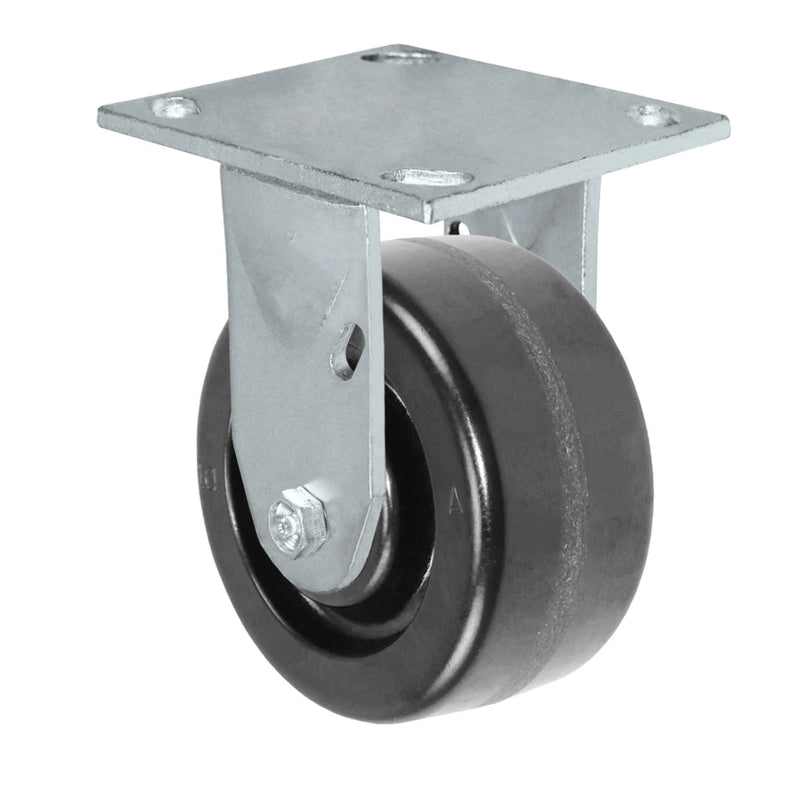

4" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4" | Capacity: 800lbs CasterHQ
In Stock · Same/Next Day
4" x 2" Phenolic Rigid Caster – 800 lb
Part # HQ2040R-PL3-PHR
from $23.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Size4" x 2"
Capacity800 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 5-5/8"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
4" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product
1400 lbs
TieredPricing

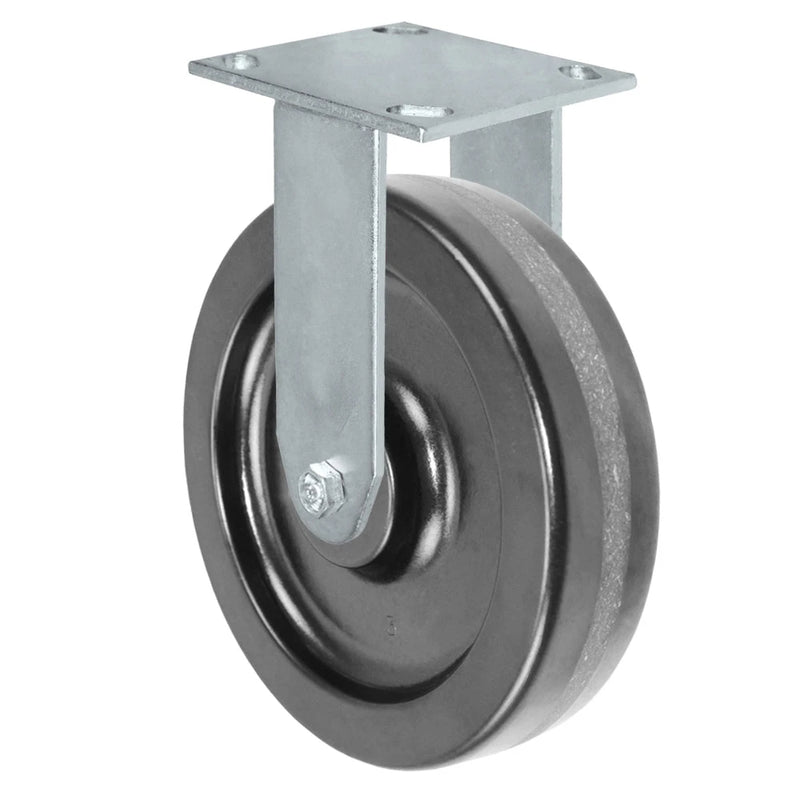

8" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4" | Capacity: 1,400 lbs CasterHQ
In Stock · Same/Next Day
8" x 2" Phenolic Rigid Caster – 1,400 lb
Part # HQ2080R-PL3-PHR
from $32.00
Volume pricing available
PhenolicPlate
Load rating
1400 lbs
Size8" x 2"
Capacity1400 lbs
WheelPhenolic
MountPlate 4-1/2" x 6-1/4"
TypeRigid
More Details Less Details
Width 2"
Height 9-1/2"
Bolt Pattern 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
Temp Range -50°F to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
8" x 2" Phenolic Wheel | Rigid Caster | Plate Size: 4-1/2 x 6-1/4"...
Shop Product

Phenolic casters on a 4-1/2 x 6-1/4 in plate by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Phenolic 4, 5, 6 and 8 in 800 to 1,400 lb -50°F to 250°F hard and easy rolling on smooth, dry floors

Ratings are for single casters of phenolic casters on a 4-1/2 x 6-1/4 in plate, from product fields [S1].

Wheel sizes

Wheel Treads Rated
4 x 2 in phenolic 800 lb
5 x 2 in phenolic 1,000 lb
6 x 2 in phenolic 1,200 lb
8 x 2 in phenolic 1,400 lb

Choosing phenolic casters on a 4-1/2 x 6-1/4 in plate

  1. Load: divide the loaded weight by three for a four-caster cart [S2]. A 1,400 lb caster from this page then suits about 4,200 lb, and the strongest at 1,400 lb about 4,200 lb.
  2. Mount: most phenolic casters on a 4-1/2 x 6-1/4 in plate use a 4-1/2 x 6-1/4 in top plate; measure bolt hole centers on the old plate and compare.
  3. Floor: on phenolic casters on a 4-1/2 x 6-1/4 in plate, phenolic suits smooth concrete and heavy loads, but is loud and hard on tile and wood.
  4. Rig: swivel and rigid phenolic casters on a 4-1/2 x 6-1/4 in plate are listed.

Phenolic casters on a 4-1/2 x 6-1/4 in plate questions

How much weight can phenolic casters on a 4-1/2 x 6-1/4 in plate carry?

Single phenolic casters on a 4-1/2 x 6-1/4 in plate are rated 800 to 1,400 lb; most fall between 1,000 and 1,400 lb.

What top plate do phenolic casters on a 4-1/2 x 6-1/4 in plate use?

Most phenolic casters on a 4-1/2 x 6-1/4 in plate use 4-1/2 x 6-1/4 in.

What wheel material is most common on phenolic casters on a 4-1/2 x 6-1/4 in plate?

Phenolic leads on phenolic casters on a 4-1/2 x 6-1/4 in plate, rated 800 to 1,400 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.

Search
