This 4" x 2" Phenolic Swivel Caster 4-1/2" x 6-1/4" Plate – 800 lb is rated to 800 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 2" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

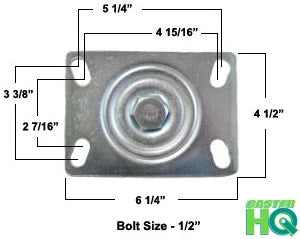

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -50°F to 250°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 5-5/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$29.00
| Dimensions & Mounting | |
| Wheel Diameter | 4" |
| Wheel Tread Width | 2" |
| Overall Height | 5-5/8" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 800 lbs |
| Temp Range | -50°F to 250°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
4" x 2" Phenolic Rigid Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs
$21
4" x 2" Phenolic Swivel Caster – 800 lb | 4" x 4-1/2" Top Plate | CasterHQ
4" x 2" · 800 lbs
$25
4" x 2" Green Polyurethane Swivel & Rigid Caster – 3200 lb | CasterHQ
4" x 2" · 800 lbs
$164
View all 4′ x 2′ casters & wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 700 lbsLighter duty | 4" × 2"Polyurethane | — | 5-5/8" | $63.00 | View → | |
| 700 lbsLighter duty | 4" × 2"Cast Iron | Rigid | 5-5/8" | $48.00 | View → | |
| 800 lbs | 4" × 2"Cast Iron | Swivel | 5-5/8" | $29.00 | Viewing | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Rigid | 5-5/8" | $21.00 | View → | |
| 800 lbsSame capacity | 4" × 2"Phenolic | Swivel | 5-5/8" | $25.00 | View → |
