Phenolic Casters — Dual Wheel Rigid Hamilton

Plate sizes: 4-1/2 x 6-1/2, 6-1/4 x 6-1/2Diameter: 3-1/4, 4, 5, 6 inTread: 2 inCapacity: up to 1,900 lb
Match a 4-1/2 x 6-1/2 top plate when bolting casters under bake carts, metalworking fixtures, and debris-heavy floors. Typical builds show wheel diameters 3-1/4, 4, 5, 6 in, phenolic treads, and capacities 1,100 to 1,900 lb. Replace worn corners in matched sets when possible so the cart tracks straight under load. Larger plates spread bolt stress on thick frames under continuous tow abuse.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

1400 lbs
TieredPricing
Hamilton Heavy Service Dual-Wheel Rigid Caster with 3 1/4" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 3-1/4" x 2" Plastex Phenolic Rigid Dual Wheel Caster – 1400 lb
Part # R-HS2-3P
from $202.00
Volume pricing available
PhenolicPlate
Load rating
1400 lbs
Diameter 3-1/4"
Capacity 1400 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Rigid Caster with 3-1/4" x 2" Plastex Phenolic Wheels with...
Shop Product
1900 lbs
TieredPricing
Hamilton Heavy Service Dual-Wheel Swivel Caster with 6" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings - 1,900 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2" Plastex Phenolic Swivel Dual Wheel Caster – 1,900 lb
Part # S-HS2-6P
from $356.00
Volume pricing available
PhenolicPlate
Load rating
1900 lbs
Diameter 6"
Capacity 1900 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Swivel Caster with 6" x 2" Plastex Phenolic Wheels with...
Shop Product
1600 lbs
TieredPricing
Hamilton Heavy Service Dual-Wheel Swivel Caster with 5" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings - 1,600 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 5" x 2" Plastex Phenolic Dual Wheel Swivel Caster – 1600 lb
Part # S-HS2-5P
from $311.00
Volume pricing available
PhenolicPlate
Load rating
1600 lbs
Diameter 5"
Capacity 1600 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Swivel Caster with 5" x 2" Plastex Phenolic Wheels with...
Shop Product
1600 lbs
TieredPricing
Hamilton Heavy Service Dual-Wheel Swivel Caster with 4" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 4" x 2" Phenolic Swivel Dual Wheel Caster – 1600 lb
Part # S-HS2-4P
from $345.00
Volume pricing available
PhenolicPlate
Load rating
1600 lbs
Diameter 4"
Capacity 1600 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Swivel Caster with 4" x 2" Plastex Phenolic Wheels with...
Shop Product
1100 lbs
TieredPricing
Hamilton Heavy Service Dual-Wheel Swivel Caster with 3 1/4" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 3 1/4" x 2" Plastex Phenolic Swivel Dual Wheel Caster – 1100 lb
Part # S-HS2-3P
from $348.00
Volume pricing available
PhenolicPlate
Load rating
1100 lbs
Diameter 3-1/4"
Capacity 1100 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Swivel Caster with 3 1/4" x 2" Plastex Phenolic Wheels...
Shop Product
1900 lbs
TieredPricing

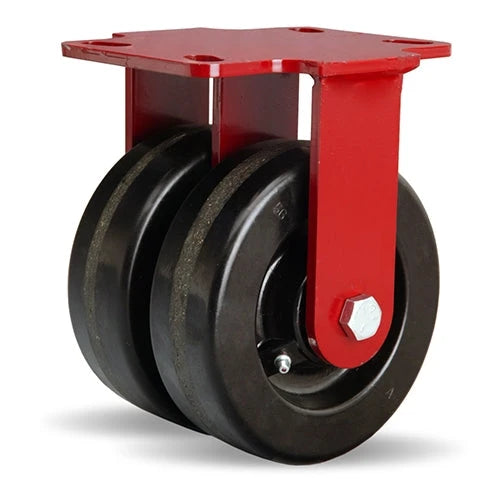

Hamilton Heavy Service Dual-Wheel Rigid Caster with 6" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings - 1,900 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 2" Plastex Phenolic Rigid Dual Wheel Caster – 1,900 lb
Part # R-HS2-6P
from $218.00
Volume pricing available
PhenolicPlate
Load rating
1900 lbs
Diameter 6"
Capacity 1900 lbs
Wheel Phenolic
Mount Plate
Plate Size 4-1/2" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Rigid Caster with 6" x 2" Plastex Phenolic Wheels with...
Shop Product
1600 lbs
TieredPricing

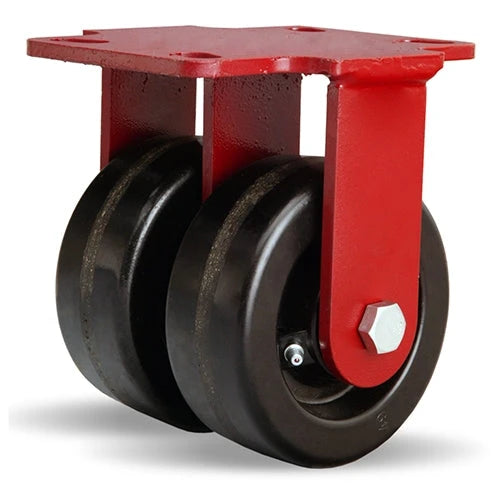

Hamilton Heavy Service Dual-Wheel Rigid Caster with 5" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings - 1,600 lbs Capacity Hamilton
Made to Order · 4-6 Wk
Hamilton 5" x 2" Plastex Phenolic Rigid Dual Wheel Caster – 1,600 lb
Part # R-HS2-5P
from $199.00
Volume pricing available
PhenolicPlate
Load rating
1600 lbs
Diameter 5"
Capacity 1600 lbs
Wheel Phenolic
Mount Plate
Plate Size 6-1/4" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Rigid Caster with 5" x 2" Plastex Phenolic Wheels with...
Shop Product
1600 lbs
TieredPricing

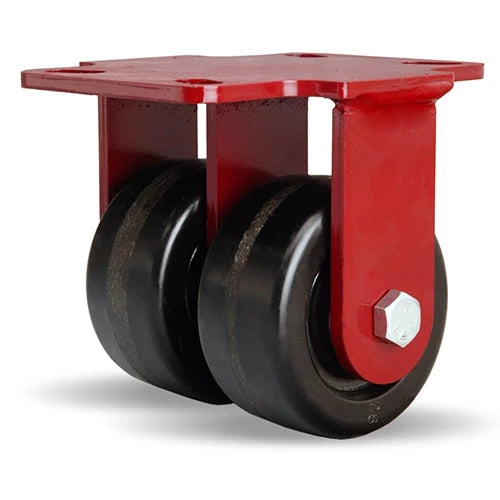

Hamilton Heavy Service Dual-Wheel Rigid Caster with 4" x 2" Plastex Phenolic Wheels with 3/4" Straight Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 4" x 2" Plastex Phenolic Rigid Dual Wheel Caster – 1600 lb
Part # R-HS2-4P
from $199.00
Volume pricing available
PhenolicPlate
Load rating
1600 lbs
Diameter 4"
Capacity 1600 lbs
Wheel Phenolic
Mount Plate
Plate Size 6-1/4" x 6-1/2"
More Details Less Details
Width 2"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Heavy Service Dual-Wheel Rigid Caster with 4" x 2" Plastex Phenolic Wheels with...
Shop Product
