Industrial Casters. Engineered for Spec.

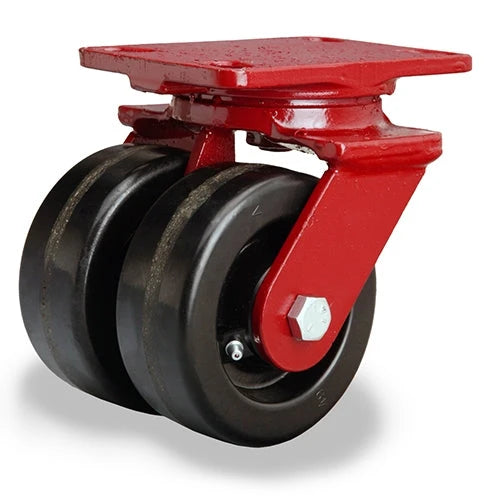

PRODUCT CODE: S-HS2-5P
| Load Capacity (lbs.) @ 3 mph | 1600 |
| Wheel Diameter (in.) | 5 |
| Wheel Face (in.) | 2 |
| Overall Height (in.) | 6.75 |
| Swivel Offset (in.) | 2 |
| Wheel Type | Plastex |
| Bearing Type | Roller |
| Replacement Wheel | W-520-P-3/4 |
| Mounting Plate (in.) | 4 1/2 x 6 1/2 |
| Mounting Bolt (in.) | 0.5 |
| Caster Rig Type | Forged Steel |
| Caster Color/Finish | Crimson Powder |
| Wheel Color/Finish | Black |
| Weight (lbs.) | 11.5000 |
| Note | Sealed Swivel Assembly (-SS) not available with swivel lock (-4SL). |
| Bolt Hole 1 (in.) | 3 3/8 x 5 1/4 |
| Bolt Hole 2 (in.) | 2 7/16 x 4 15/16 |
| Swivel or Rigid caster | Swivel |
| Mounting Plate Length (in.) | 6.5 |
| Mounting Plate Width (in.) | 4.5 |
| 3D view option | yes |
| Rollability: | |
| Durability: | |
| Floor Preservation: | |
| Quiet Operation: | |
| Type: | Plastex |
| Material: | Phenolic |
| Relative Capacity: | High |
| Cushioning (Resilience): | Low |
| Impact Resistance: | Medium |
| Moisture Resistance: | Low |
| Abrasion Resistance: | Medium |
| Relative Cost: | Low |
| Low Temp. Range (F): | -50 |
| High Temp. Range (F): | 300 |
| Chemical Resistance: | Poor |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
$311.00
| Wheel Diameter | 5" |
| Wheel Tread Width | 2" |
| Wheel Capacity | 1600 lbs |
| Temp Range | Up to 250°F |
| Wheel Material | Phenolic |
| Frame Material | Zinc Plated Steel |
| Mount Style | Plate |
| Plate Size | 4-1/2" x 6-1/2" |
| Rig Type | Swivel |
| Brake Type | No Brake |
