All measurements indicate the wheel diameter by the tread width.

The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.

W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.

Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-7/8″, slotted to 3″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 1-3/4″ × 2-15/16″ slotted to 2-3/8″ × 3-3/8″
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
BHP: 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4"
(3″ Wide Casters), Industry-Standard
(3″ Wide Casters), Industry-Standard
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
BHP: 4-1/8" x 6" slotted to 4-1/2" x 6-1/8"
View All • 21 Plate Sizes
View All • 21 Plate Sizes
Plate Casters
Plate Casters
Stem Casters
Stem Casters
Stainless Casters
Stainless Casters
Ergonomic Casters
Ergonomic Casters
Leveling Casters
Leveling Casters
Back to Wheels
Caster Wheel Materials & Selection Guide

Caster Wheel Materials & Selection Guide
Polyolefin Wheels

Polyolefin Wheels
High Temperature Wheels

High Temperature Wheels
Track Wheels (All Types)

Track Wheels (All Types)
Hand Truck Wheels

Hand Truck Wheels
Rubber Wheels (All Types)

Rubber Wheels (All Types)
Nylon Wheels

Nylon Wheels
Keyed Drive Wheels

Keyed Drive Wheels
Pneumatic Wheels

Pneumatic Wheels
Atx Off-road Wheels

Atx Off-road Wheels
Poly Wheels (All Types)

Poly Wheels (All Types)
Phenolic Wheels

Phenolic Wheels
Metal Wheels (All Types)

Metal Wheels (All Types)
Flat-free (Foam-filled)

Flat-free (Foam-filled)
Wheel Replacement Parts

Wheel Replacement Parts
Back to Parts
Caster Plate Mounting Hardware

Caster Plate Mounting Hardware
Quick Change Caster Pads

Quick Change Caster Pads
Caster Frames - Swivel & Rigid

Caster Frames - Swivel & Rigid
Sockets & T-nuts For Casters

Sockets & T-nuts For Casters
Washers

Washers
Expanding Rubber Adapter Kits

Expanding Rubber Adapter Kits
Bumpers

Bumpers
Axles & Nuts

Axles & Nuts
Spanner Bushings

Spanner Bushings
Caster Shims & Weld Plates

Caster Shims & Weld Plates
Furniture Glides

Furniture Glides
Floor Truck Locks

Floor Truck Locks
Swivel Locks

Swivel Locks
Wheel Bearings

Wheel Bearings
Back to Material Handling

Furniture & Equipment Movers
Furniture Dollies

Furniture Dollies
Hydraulic Lift Tables

Hydraulic Lift Tables
Utility Carts

Utility Carts
Pallet Dollies

Pallet Dollies
Safe & Applicance Dollies

Safe & Applicance Dollies
Carts & Platform Trucks

Carts & Platform Trucks
Hand Trucks & Accessories

Hand Trucks & Accessories
Ratchet Straps & Tie Downs

Ratchet Straps & Tie Downs
Three Wheel Dollies

Three Wheel Dollies
Wire Shelving

Wire Shelving
Pallet Jacks

Pallet Jacks
Stackers

Stackers
Heavy Duty Tilt Trucks

Heavy Duty Tilt Trucks
Ball Transfers

Ball Transfers
Moving Supplies

Moving Supplies
Back to menu
Shop by IndustryAll 20 industries ›
Healthcare & Medical Material Handling Food Service & Food Processing Aerospace & Aviation Automotive Manufacturing & Industrial Data Centers Furniture & Fixtures Hospitality Institutional & Education Laundry & Linen Marine Horticulture & Gardens Retail Environment Robotics & Automation Air Cargo Defense & Military Oil, Gas & Energy Sanitation & Washdown Towline & Tugger
Shop by ApplicationAll applications ›
Specialty Casters Specialty Casters Gate Casters Gate Casters BBQ Pit & Smoker Casters BBQ Pit & Smoker Casters Keyed Drive Wheels Keyed Drive Wheels Drywall Cart Casters Drywall Cart Casters Skid Wheels & Casters for RVs Skid Wheels & Casters for RVs Leveling Casters Leveling Casters Shopping Cart Wheels & Casters Shopping Cart Wheels & Casters Band Equipment Casters & Wheels Band Equipment Casters & Wheels Low Profile Casters Low Profile Casters Cart Wheels & Casters Cart Wheels & Casters Toolbox Caster Sets Toolbox Caster Sets Bakery Oven Rack Casters Bakery Oven Rack Casters Kitchen Prep Table Caster Sets Kitchen Prep Table Caster Sets Wire Shelving Casters Wire Shelving Casters Silent Glide Casters Silent Glide Casters
Back to Brands
ALBION CASTERS

ALBION CASTERS
BLICKLE CASTERS

BLICKLE CASTERS
HAMILTON CASTERS

HAMILTON CASTERS
P&H CASTERS

P&H CASTERS
SHEPHERD CASTERS

SHEPHERD CASTERS
B&P MANUFACTURING

B&P MANUFACTURING
SAFE 'N SECURE

SAFE 'N SECURE
HUDSON BEARINGS

HUDSON BEARINGS
QUANTUM STORAGE

QUANTUM STORAGE
AMERICAN MOVING SUPPLIES

AMERICAN MOVING SUPPLIES
COLSON CASTERS

COLSON CASTERS
DURASTAR CASTERS

DURASTAR CASTERS
CORPS DESIGN

CORPS DESIGN
FAULTLESS MEDICAL CASTERS

FAULTLESS MEDICAL CASTERS

Phenolic Casters - Swivel

Plate sizes: 4 x 4, 4 x 4-1/2Bolt holes: 2-5/8 x 3-3/8 slotted to 3 x 3Diameter: 3-1/4, 4, 5 inTread: 1-1/2 inCapacity: up to 800 lb
Match a 4 x 4-1/2 top plate when bolting casters under bake carts, metalworking fixtures, and debris-heavy floors. Typical builds show wheel diameters 3-1/4, 4, 5 in, phenolic treads, and capacities 550 to 800 lb. Confirm stem length and thread pitch on stem mounts so the shoulder seats flush in the boss. Phenolic shrugs off heat and oils that soften rubber or poly on bake and shop carts.

Shop by type

4 types

Wheel = wheel diameter · capacity is per caster.

800 lbs
TieredPricing
Hamilton Whirlaway 800 lbs Capacity Swivel Caster - 6 Inch Plastex Phenolic Wheel, 1.5" Width, 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 1.5" Plastex Phenolic Swivel Caster – 800 lb
Part # S-WW-6P
$82.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Diameter 6"
Capacity 800 lbs
Wheel Phenolic
Mount Plate
More Details Less Details
Width 1.5"
Height 7.5"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway Swivel Caster - 800 lbs Capacity Robust & Durable | Efficient Mobility...
Shop Product
600 lbs
TieredPricing
Hamilton Whirlaway 600 lbs Capacity Swivel Caster - 5 inch Plastex Phenolic Wheel, 1.5" Width, 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton S-WW-5P 5" x 1.5" Plastex Phenolic Swivel Caster – 600 lb
Part # S-WW-5P
$82.00
Volume pricing available
PhenolicPlate
Load rating
600 lbs
Diameter 5"
Capacity 600 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4"
More Details Less Details
Height 6.5"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway 600 lbs Capacity Swivel Caster - S-WW-5P Robust & Reliable | Optimal...
Shop Product
600 lbs
TieredPricing
Hamilton Whirlaway 600 lbs Capacity Swivel Caster - 4x1.5 Inch Plastex Phenolic Wheel, 3/4" Straight Roller Bearing - Heavy-Duty Casters for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton S-WW-4P 4" x 1.5" Plastex Phenolic Swivel Caster – 600 lb
Part # S-WW-4P
$82.00
Volume pricing available
PhenolicPlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Phenolic
Mount Plate
More Details Less Details
Width 1-1/2"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway 600 lbs Capacity Swivel Caster Robust & Reliable for Heavy-Duty Use |...
Shop Product
550 lbs
TieredPricing
Hamilton Whirlaway 550 lbs Capacity Swivel Caster - 3 1/4" x 1 1/2" Plastex Phenolic Wheel, 3/4" Straight Roller Bearing - Durable Industrial Caster Hamilton
Made to Order · 4-6 Wk
Hamilton 3 1/4" x 1 1/2" Plastex Phenolic Swivel Caster – 550 lb
Part # S-WW-3P
$82.00
Volume pricing available
PhenolicPlate
Load rating
550 lbs
Diameter 3-1/4"
Capacity 550 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 1-1/2"
Height 5.25"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway Swivel Caster - Superior Industrial Mobility 550 lbs Load Capacity | Robust...
Shop Product
800 lbs
TieredPricing
Hamilton Whirlaway 800 lbs Capacity Rigid Caster - 6 Inch Plastex Phenolic Wheel, 1.5" Width, 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton 6" x 1.5" Plastex Phenolic Rigid Caster – 800 lb
Part # R-WW-6P
$64.00
Volume pricing available
PhenolicPlate
Load rating
800 lbs
Diameter 6"
Capacity 800 lbs
Wheel Phenolic
Mount Plate
More Details Less Details
Width 1.5"
Height 7.5"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway Rigid Caster - 800 lbs Capacity Robust & Durable | Efficient Mobility...
Shop Product
600 lbs
TieredPricing
Hamilton Whirlaway 600 lbs Capacity Rigid Caster - 5 inch Plastex Phenolic Wheel, 1.5" Width, 3/4" Straight Roller Bearing Hamilton
Made to Order · 4-6 Wk
Hamilton R-WW-5P 5" x 1.5" Plastex Phenolic Rigid Caster – 600 lb
Part # R-WW-5P
$57.00
Volume pricing available
PhenolicPlate
Load rating
600 lbs
Diameter 5"
Capacity 600 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4"
More Details Less Details
Height 6.5"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway 600 lbs Capacity Rigid Caster - R-WW-5P Robust & Reliable | Optimal...
Shop Product
600 lbs
TieredPricing

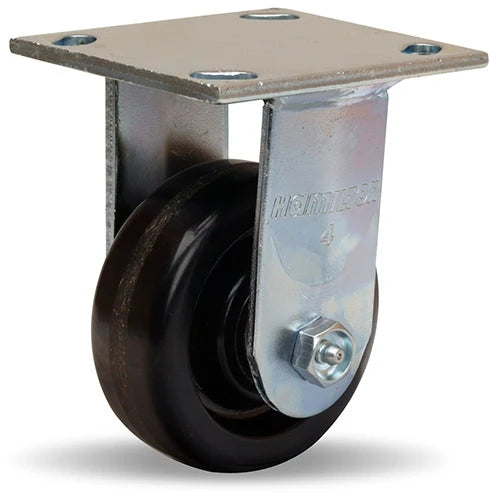

Hamilton Whirlaway 600 lbs Capacity Rigid Caster - 4x1.5 Inch Plastex Phenolic Wheel, 3/4" Straight Roller Bearing - Heavy-Duty Casters for Industrial Use Hamilton
Made to Order · 4-6 Wk
Hamilton R-WW-4P 4"x1.5" Plastex Phenolic Rigid Caster – 600 lb
Part # R-WW-4P
$52.00
Volume pricing available
PhenolicPlate
Load rating
600 lbs
Diameter 4"
Capacity 600 lbs
Wheel Phenolic
Mount Plate
More Details Less Details
Width 1-1/2"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway 600 lbs Capacity Rigid Caster Robust & Reliable for Heavy-Duty Use |...
Shop Product
550 lbs
TieredPricing
Hamilton Whirlaway 550 lbs Capacity Rigid Caster - 3 1/4" x 1 1/2" Plastex Phenolic Wheel, 3/4" Straight Roller Bearing - Durable Industrial Caster Hamilton
Made to Order · 4-6 Wk
Hamilton 3 1/4" x 1 1/2" Plastex Phenolic Rigid Caster – 550 lb
Part # R-WW-3P
$64.00
Volume pricing available
PhenolicPlate
Load rating
550 lbs
Diameter 3-1/4"
Capacity 550 lbs
Wheel Phenolic
Mount Plate
Plate Size 4" x 4-1/2"
More Details Less Details
Width 1-1/2"
Height 5.25"
Bolt Pattern 2-5/8" x 3-5/8" slotted to 3" x 3"
Temp Range Up to 250°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton Whirlaway Rigid Caster - Superior Industrial Mobility 550 lbs Load Capacity | Robust...
Shop Product
