4" x 1-3/8" Stainless Steel Casters

Plate sizes: 2-1/2 x 3Diameter: 4 inCapacity: up to 520 lb
2-1/2 x 3 inch top-plate casters for heavy warehouse carts, die carts, and plant fixtures. Catalog chips cover wheel diameters 4 in, steel and stainless treads, and capacities 260 to 520 lb. For dual-wheel or wide treads, check fork clearance and swivel radius in tight aisles. Larger plates spread bolt stress on thick frames under continuous tow abuse. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level.

Shop by type

1 type

Wheel = wheel diameter · capacity is per caster.

260 lbs
TieredPricing
Hamilton Ultratherm Wheel Swivel Caster - 4-inch High Heat Stainless Steel, 260 lbs Load Capacity, 572°F Rated with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 4" x 1 3/8" Ultratherm Swivel Stainless Caster – 260 lb
Part # S-HSTL-4HWRSB
$308.00
Volume pricing available
NylonPlate
Load rating
260 lbs
Diameter 4"
Capacity 260 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Height 5.125"
Temp Range Up to 572°F
Rig Type Swivel
Brake No Brake
Frame Stainless Steel
Hamilton 4-Inch High Heat Swivel Caster - Stainless Steel Industrial Strength & High-Temperature Resilience...
Shop Product
TieredPricing
Hamilton S-HL-4HWRSB High Heat Swivel Caster – 4" Ultratherm Wheel, 550° F Rated with Stainless Steel Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton S-HL-4HWRSB 4" x 1 3/8" Ultratherm Swivel Caster – 550° F
Part # S-HL-4HWRSB
$203.00
Volume pricing available
NylonPlate
Wheel Nylon
Mount Plate
More Details Less Details
Temp Range Up to 550°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
S-HL-4HWRSB Hamilton High Heat Hi-Lo Swivel Caster 4" x 1 3/8" Ultratherm Wheel Rated...
Shop Product
520 lbs
TieredPricing
Hamilton Dual Wheel Swivel Caster - 520 lbs Capacity, 4" Ultratherm Wheels, High Heat Stainless Steel, Kingpinless - HENS2-4HWRSB Hamilton
Made to Order · 4-6 Wk
Hamilton HENS2-4HWRSB 4" x 1-3/8" Ultratherm Swivel Dual Wheel Caster – 520 lb
Part # S-HENS2-4HWRSB
$582.00
Volume pricing available
NylonPlate
Load rating
520 lbs
Diameter 4"
Capacity 520 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Height 1.375"
Temp Range Up to 475°F
Rig Type Swivel
Brake No Brake
Frame Stainless Steel
Hamilton High Heat Dual Wheel Swivel Caster - 520 lbs Load Capacity Optimized for...
Shop Product
520 lbs
TieredPricing
Hamilton HENS2 Dual Wheel Swivel Caster - 520 lbs Load 4" Ultratherm Wheels High Heat Resistant up to 475°F with Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton HENS2 4" x 1-3/8" Ultratherm Swivel Dual Wheel Caster – 520 lb
Part # S-HEN2-4HWRSB
$559.00
Volume pricing available
NylonPlate
Load rating
520 lbs
Diameter 4"
Capacity 520 lbs
Wheel Nylon
Mount Plate
Plate Size 2-1/2" x 3"
More Details Less Details
Height 5.125"
Temp Range Up to 475°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
Hamilton High Heat Kingpinless Swivel Caster - 520 lb Capacity, 4" Wheels Extreme Heat...
Shop Product
260 lbs
TieredPricing
Hamilton Ultratherm Wheel Rigid Caster - 4-inch High Heat Stainless Steel, 260 lbs Load Capacity, 572°F Rated with Precision Ball Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton 4" x 1 3/8" Ultratherm Rigid Stainless Caster – 260 lb
Part # R-HSTL-4HWRSB
$337.00
Volume pricing available
NylonPlate
Load rating
260 lbs
Diameter 4"
Capacity 260 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Height 5.125"
Temp Range Up to 572°F
Rig Type Rigid
Brake No Brake
Frame Stainless Steel
Hamilton 4-Inch High Heat Rigid Caster - Stainless Steel Industrial Strength & High-Temperature Resilience...
Shop Product
TieredPricing
Hamilton R-HL-4HWRSB High Heat Rigid Caster – 4" Ultratherm Wheel, 550° F Rated with Stainless Steel Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton R-HL-4HWRSB 4" x 1 3/8" Ultratherm Rigid Caster – 550° F
Part # R-HL-4HWRSB
$196.00
Volume pricing available
NylonPlate
Wheel Nylon
Mount Plate
More Details Less Details
Temp Range Up to 550°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
R-HL-4HWRSB Hamilton High Heat Hi-Lo Rigid Caster 4" x 1 3/8" Ultratherm Wheel Rated...
Shop Product
520 lbs
TieredPricing
Hamilton Dual Wheel Rigid Caster - 520 lbs Capacity, 4" Ultratherm Wheels, High Heat Stainless Steel - R-HENS2-4HWRSB Hamilton
Made to Order · 4-6 Wk
Hamilton R-HENS2-4HWRSB 4" x 1-3/8" Ultratherm Dual Wheel Rigid Caster – 520 lb
Part # R-HENS2-4HWRSB
$625.00
Volume pricing available
NylonPlate
Load rating
520 lbs
Diameter 4"
Capacity 520 lbs
Wheel Nylon
Mount Plate
More Details Less Details
Height 1.375"
Temp Range Up to 475°F
Rig Type Rigid
Brake No Brake
Frame Stainless Steel
Hamilton High Heat Dual Wheel Rigid Caster - 520 lbs Load Capacity Optimized for...
Shop Product
520 lbs
TieredPricing

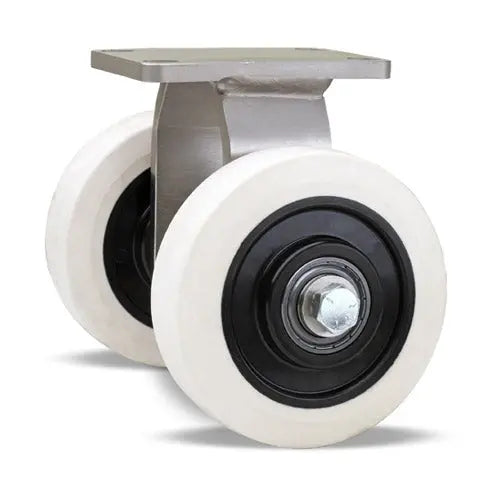

Hamilton HENS2 Dual Wheel Rigid Caster - 520 lbs Load 4" Ultratherm Wheels High Heat Resistant up to 475°F with Roller Bearings Hamilton
Made to Order · 4-6 Wk
Hamilton HENS2 4" x 1-3/8" Ultratherm Rigid Dual Wheel Caster – 520 lb
Part # R-HEN2-4HWRSB
$367.00
Volume pricing available
NylonPlate
Load rating
520 lbs
Diameter 4"
Capacity 520 lbs
Wheel Nylon
Mount Plate
Plate Size 2-1/2" x 3"
More Details Less Details
Height 5.125"
Temp Range Up to 475°F
Rig Type Rigid
Brake No Brake
Frame Zinc Plated Steel
Hamilton High Heat Rigid Caster - 520 lb Capacity, 4" Wheels Extreme Heat Resistance...
Shop Product
