Hudson Bearings BT-1-SS ball transfer unit

HUDSON BEARINGS

Hudson Bearing 1-1/2" Stainless Steel Ball Transfer Unit – Flange Mounted | CasterHQ

Wheel

1-1/2"

Capacity

250 lbs

Mount

Bolt-Flange

Full specs Spec sheet (PDF)

$26.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships in 1-3 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity250 lbs

Wheel1-1/2"

MountBolt-Flange

Boost Your Material Handling Efficiency

Heavy-Duty & Stainless Steel | Shop Now & Save

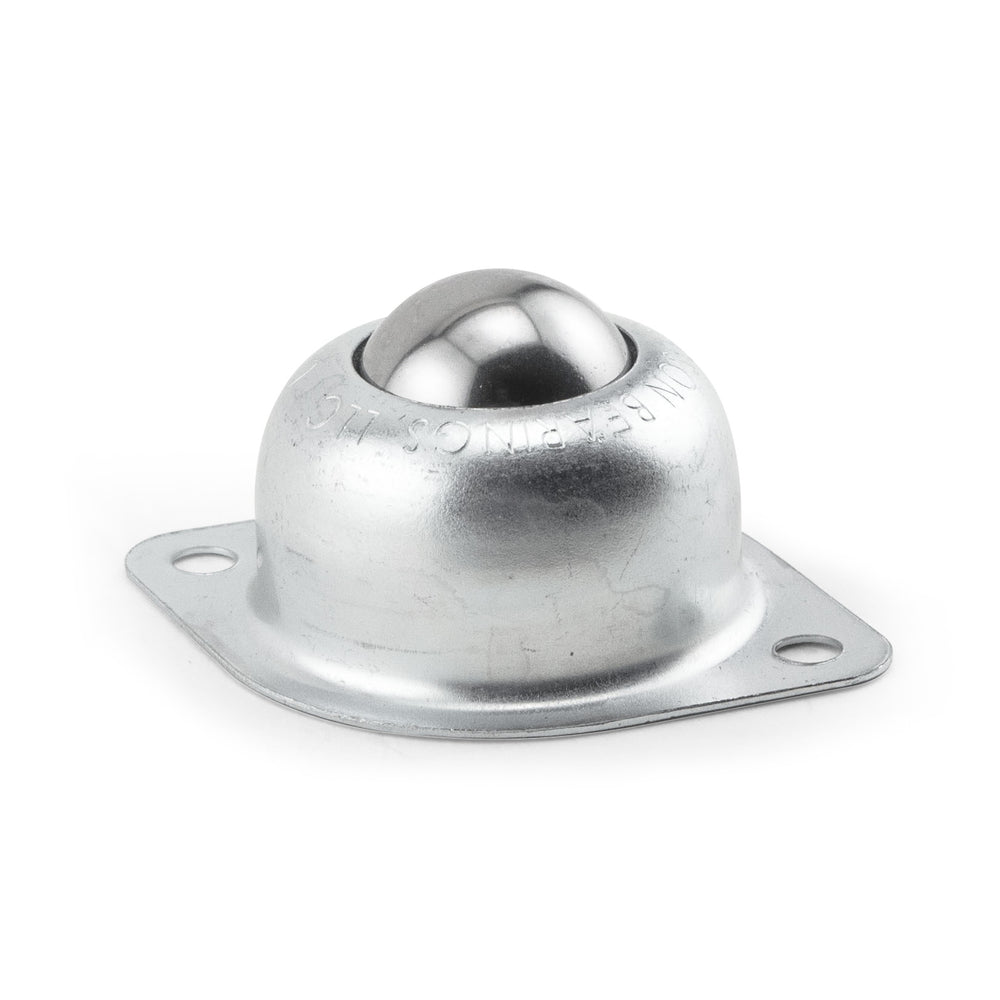

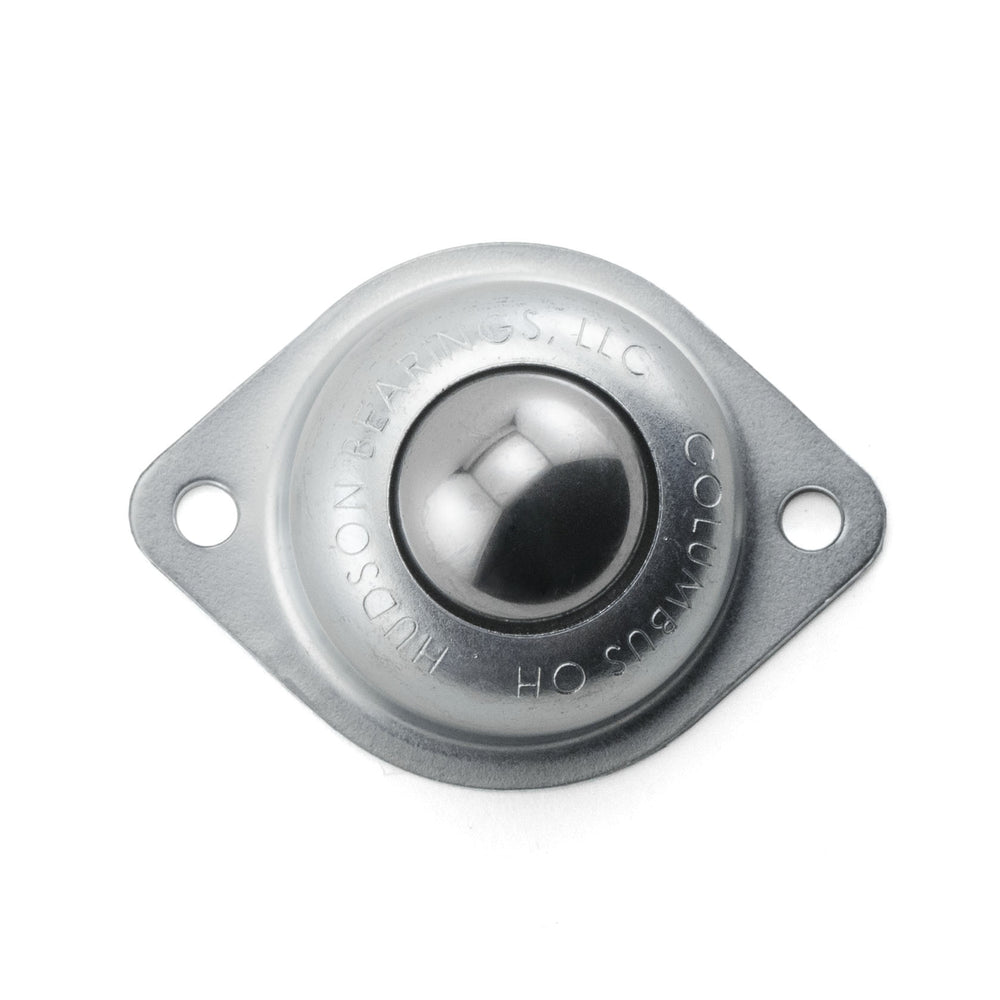

1-1/2" Stainless Steel Flange Mounted Ball Transfer Unit

Move materials with confidence using our premium 1-1/2" stainless steel flange mounted ball transfer units. Built to endure heavy-duty applications, these units provide exceptional corrosion resistance and long-lasting durability.

Key Features

BT 1-1/2 CS/SS Mounted Ball Transfer Unit

Key Features

Flange Mounted Design: The four-hole flange mounting system ensures secure and stable installation on various surfaces.
Carbon Steel Housing: The rugged carbon steel housing provides exceptional strength and protection for the internal components.
Hardened Ball Support Cup: The hardened and plated ball support cup ensures smooth ball rotation and extended service life.
Low Torque Protective Cover: The protective cover minimizes friction and torque, promoting effortless material movement and longevity.
1-1/2" Main Ball: The large 1-1/2" main ball rotates smoothly on 3/16" support balls, facilitating efficient material transfer.

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Additional Information

Ball Transfer Unit Applications

Find the Perfect Fit | Wide Range of Uses

Ball transfer units are a versatile and essential component for many industrial applications. Here are some of the common applications for ball transfer units:

Material handling systems: Ball transfers help move heavy or bulky materials with ease, improving workflow and productivity.
Conveyor lines: Integrated into conveyor systems, ball transfers ensure smooth and efficient product movement throughout production lines.
Assembly lines: Ball transfers enable effortless positioning of components on assembly lines, optimizing the assembly process.
Packaging and sorting operations: Ball transfers streamline the movement of packages and goods in packaging and sorting facilities.
Warehouse and distribution centers: Ball transfers create efficient workspaces for maneuvering pallets, boxes, and other items within warehouses and distribution centers.

Expert Support On Standby

Got questions about ball transfer units and their applications? Our product specialists are here weekdays 8 am - 5 pm to assist you. Let us help you choose the ideal ball transfer units for your specific needs!

Frequently Asked Questions

What is the load capacity of this caster?+

This Hudson Bearing 1-1/2" Stainless Steel Ball Transfer Unit – Flange Mounted is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

How does this caster mount to my equipment?+

This caster uses a Bolt-Flange mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

Hudson Bearing 1-1/2" Stainless Steel Ball Transfer Unit – Flange Mounted | CasterHQ

$26.00

Technical Specifications

Identification
Brand	Hudson Bearings
Dimensions & Mounting
Wheel Diameter	1-1/2"
Mount Style	Bolt-Flange
Load & Performance
Weight Capacity Per Caster (lbs)	250
Wheel Capacity	250 lbs
Materials & Finish
Frame Material	Zinc Plated Steel

Reference Dimensions

Wheel1-1/2"

Illustrative wheel profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

Hudson Bearings 1-1/2" Carbon Steel Ball Transfer Unit – 250 lb | CasterHQ 1-1/2" · 250 lbs $14

Hudson Bearing 1-1/2" Nylon Ball Transfer Unit – 250 lb | CasterHQ 1-1/2" · 250 lbs $16

Hudson Bearing NFSBT 1-1/2 CS 1-1/2" Nylon Ball Transfer Unit – 200 lb | CasterHQ 1-1/2" · 200 lbs $57 View all ball transfers & ball transfer bearings →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 250 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)

Compare Similar Casters

View all ball transfers & ball transfer bearings →

Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
Hudson Bearing NFSBT 1-1/2 CS 1-1/2" Nylon Ball Transfer Unit – 200 lb	200 lbsLighter duty	1-1/2"Nylon	—	—	$57.00	View →
This itemHudson Bearing 1-1/2" Stainless Steel Ball Transfer Unit – Flange Mounted	250 lbs	1-1/2"	—	—	$26.00	Viewing
Hudson Bearings 1-1/2" Carbon Steel Ball Transfer Unit – 250 lb	250 lbsSame capacity	1-1/2"	—	—	$14.00	View →
Hudson Bearing 1-1/2" Nylon Ball Transfer Unit – 250 lb	250 lbsSame capacity	1-1/2"Nylon	—	—	$16.00	View →
