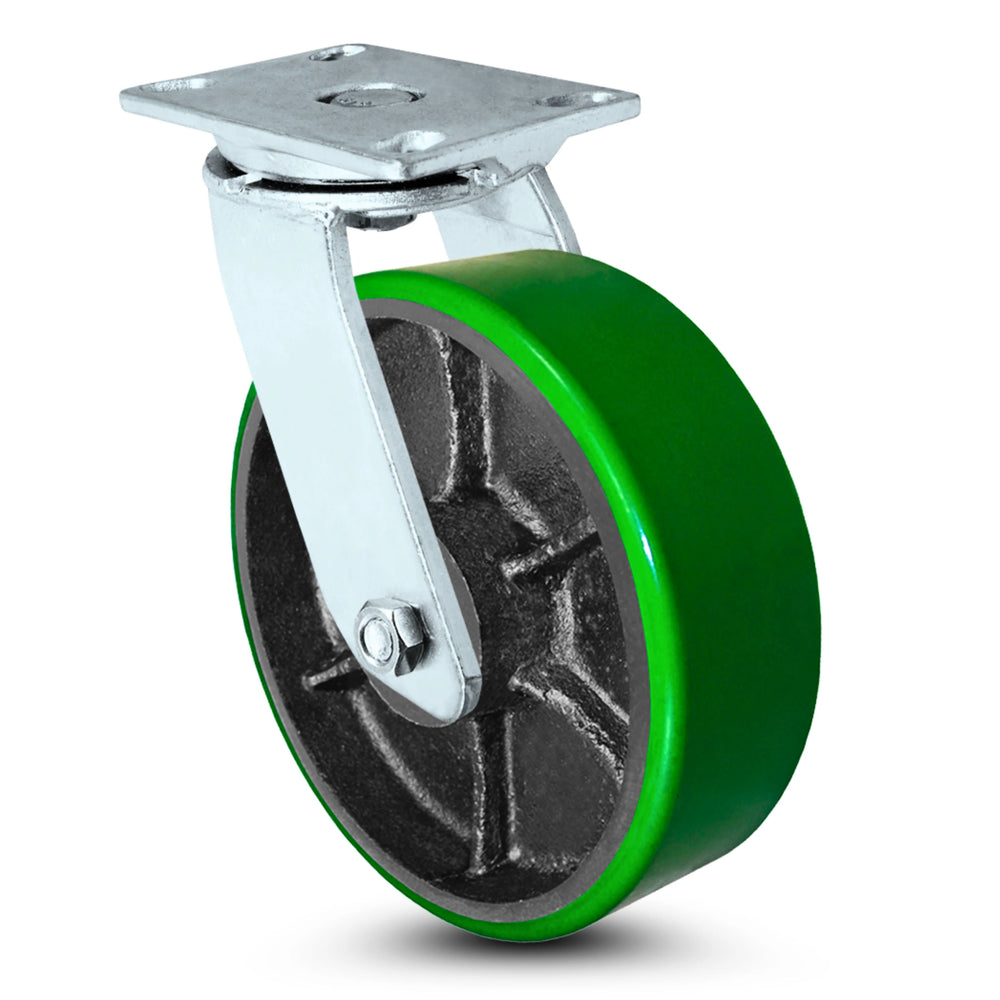

Upgrade your equipment with this high-performance **10" x 3" Heavy-Duty Swivel Caster**, designed for demanding industrial environments. Built with a **durable green polyurethane tread** bonded to a **solid steel core**, this caster provides smooth mobility, exceptional load-bearing capacity, and superior traction.
When reliability, durability, and performance matter, **CasterHQ’s 10" x 3" Heavy-Duty Swivel Caster** is the top choice for **industrial and commercial mobility solutions**. Engineered for **strength, smooth maneuverability, and long-term reliability**, this caster is built to outperform standard wheels.
**Order today and experience the difference in quality and performance with CasterHQ.**
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The **10" x 3" Heavy-Duty Swivel Caster with Green Polyurethane on Steel Wheel** is built for demanding environments that require durability, strength, and smooth mobility. Engineered with **industrial-grade materials**, this caster is ideal for applications where **high load capacity, shock absorption, and floor protection** are essential.
When it comes to **performance, durability, and reliability**, CasterHQ’s **10" x 3" Heavy-Duty Swivel Caster** is built to exceed expectations. Whether you need industrial-grade strength for **high-load applications** or a **long-lasting mobility solution**, this caster is engineered for maximum performance.
**Order now and experience the next level of heavy-duty mobility with CasterHQ!**
This 10" x 3" Green Polyurethane Swivel Caster – 2,500 lb is rated to 2500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Polyurethane wheel with a 3" tread width. Polyurethane protects finished floors, rolls quietly, and resists most chemicals while carrying heavy loads.

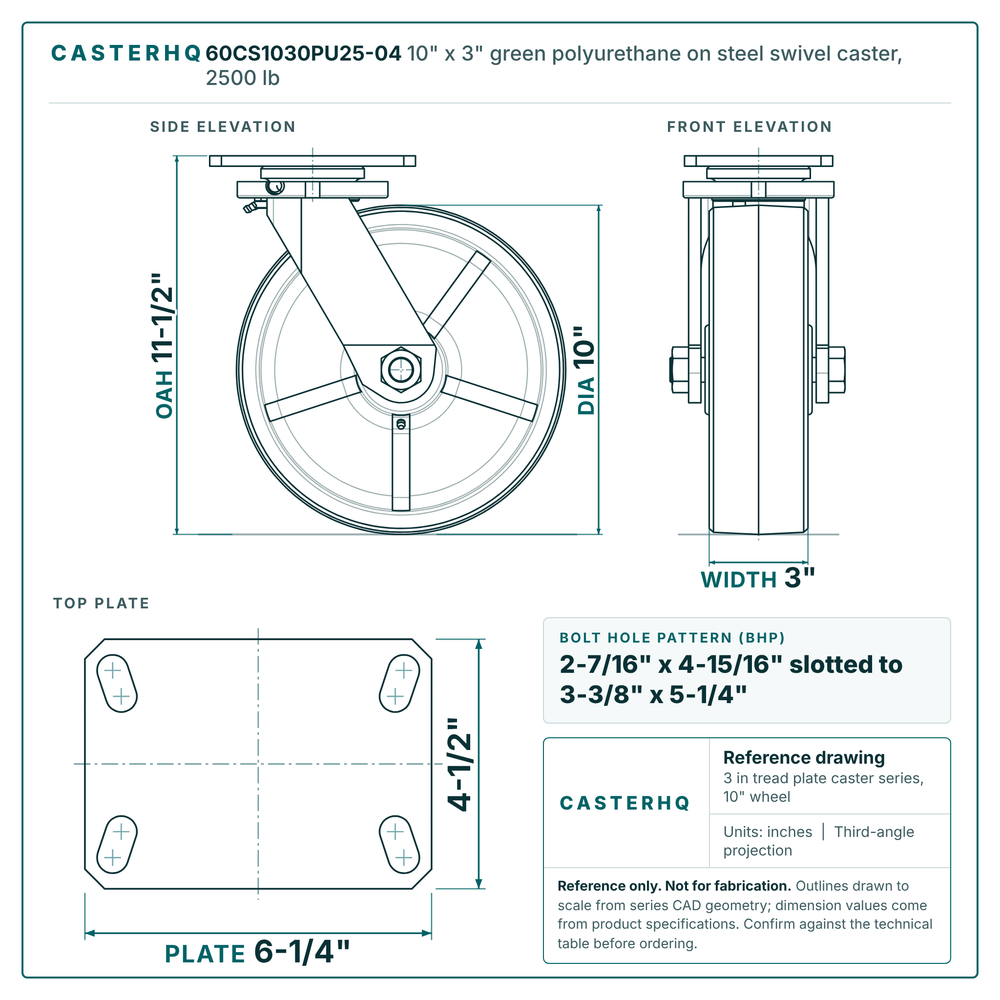

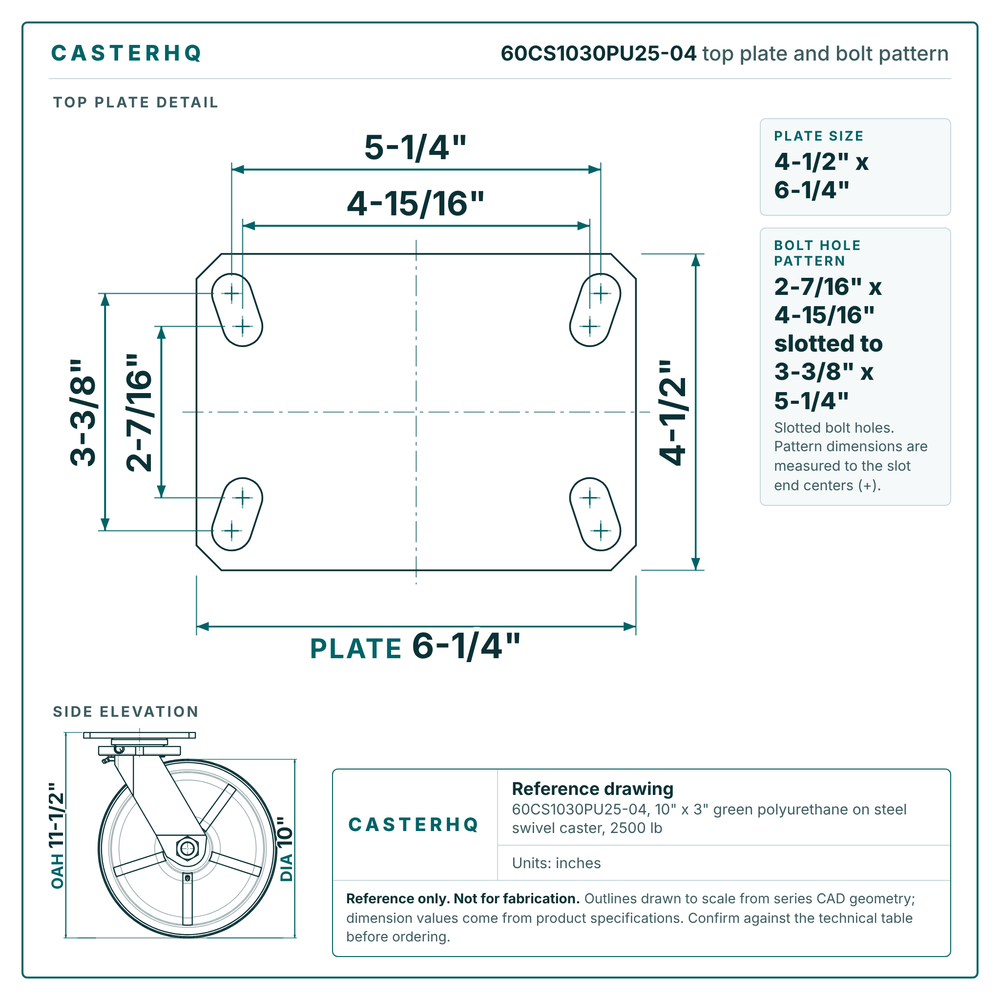

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Polyurethane wheel performs best on smooth to semi-smooth floors including sealed concrete, tile, and epoxy. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 11-1/2". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$244.00
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 11-1/2" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 2500 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Polyurethane |
| Wheel Core Material | Steel |
| Frame Material | Zinc Plated Steel |
