10" x 3" Heavy Duty Swivel Caster | Phenolic Wheel | 2,500 lbs per Caster

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 620CS1030PH25-04

Product Overview

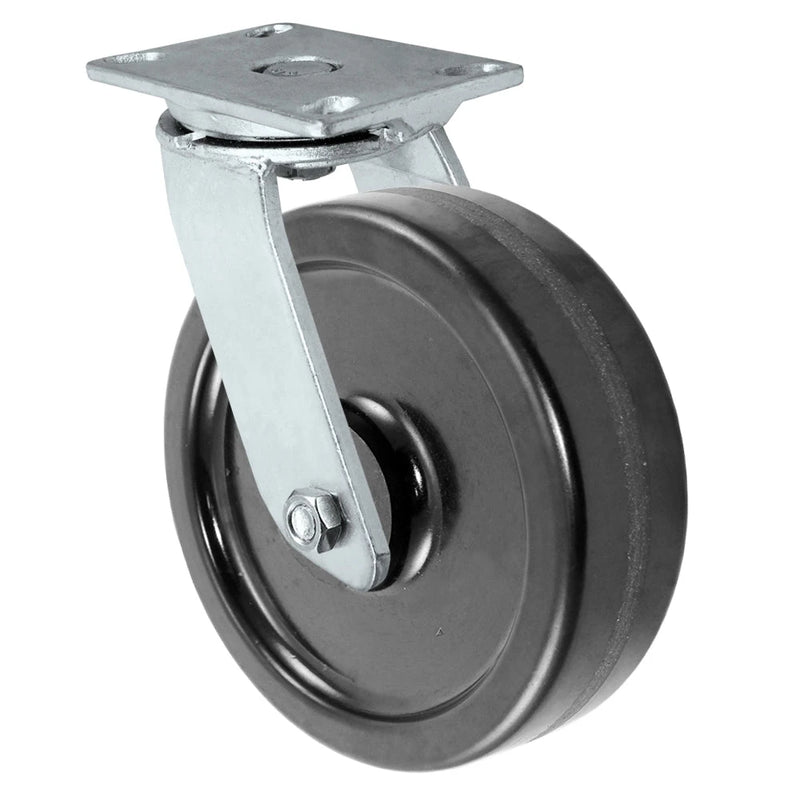

10" x 3" Heavy Duty Swivel Caster | Phenolic Wheel | 2,500 lbs per Caster


This product listing is for an 10" diameter by 3" tread width Swivel Caster with a Phenolic Wheel. Great for smooth concrete floors. Phenolic Wheels will not damage your floors and they hold the same capacity as steel wheels. Easy to roll, heavy-duty, and affordable.

Phenolic resin wheels are mixed with phenolic resin with macerated canvas and other compressed materials; These wheels are molded under high pressure and temperature. Phenolic caster wheels are recommended for smooth concrete floors and can be used for storage loads without permanent compression set to the wheel. These phenolic wheels are highly resistant to oil, grease, gasoline, and mild acids. Phenolic caster wheels will carry loads as great as the same size
Gray Iron Wheel Casters
. The wheel tread may show wear from repeated travel over rough floor surfaces. Phenolic Wheel Casters are one of the most commonly used casters due to the inexpensive costs and high weight capacities and durability these types of wheels offer. If your looking for a true heavy-duty caster that won't break the budget buy phenolic wheel casters from CasterHQ. Phenolic Casters can be used in many industries and applications due to their durability and strength. These wheels can hold large amounts of weight, will not tear up concrete floors, and will not flat spot. Phenolic wheels perform best on smooth surfaces due to the wheel's hardness. Phenolic wheels do not perform well on un-even floors with chipped concrete or obstacles in the path of the wheels. Phenolic Wheels should NOT be exposed to water. The material of phenolic wheels will eventually swell and the wheel could fall apart over time if exposed to water. These should be used in clean, dry environments such as warehouses, garages, buildings, retail stores, and anywhere that has clean, dry floors. I would not recommend Phenolic floors on custom wood floors as these could leave slight indentions if the weight of the cart is too heavy since real hardwood is a naturally softer and expensive floor type. If you need replacement phenolic wheels only please
Click Here.

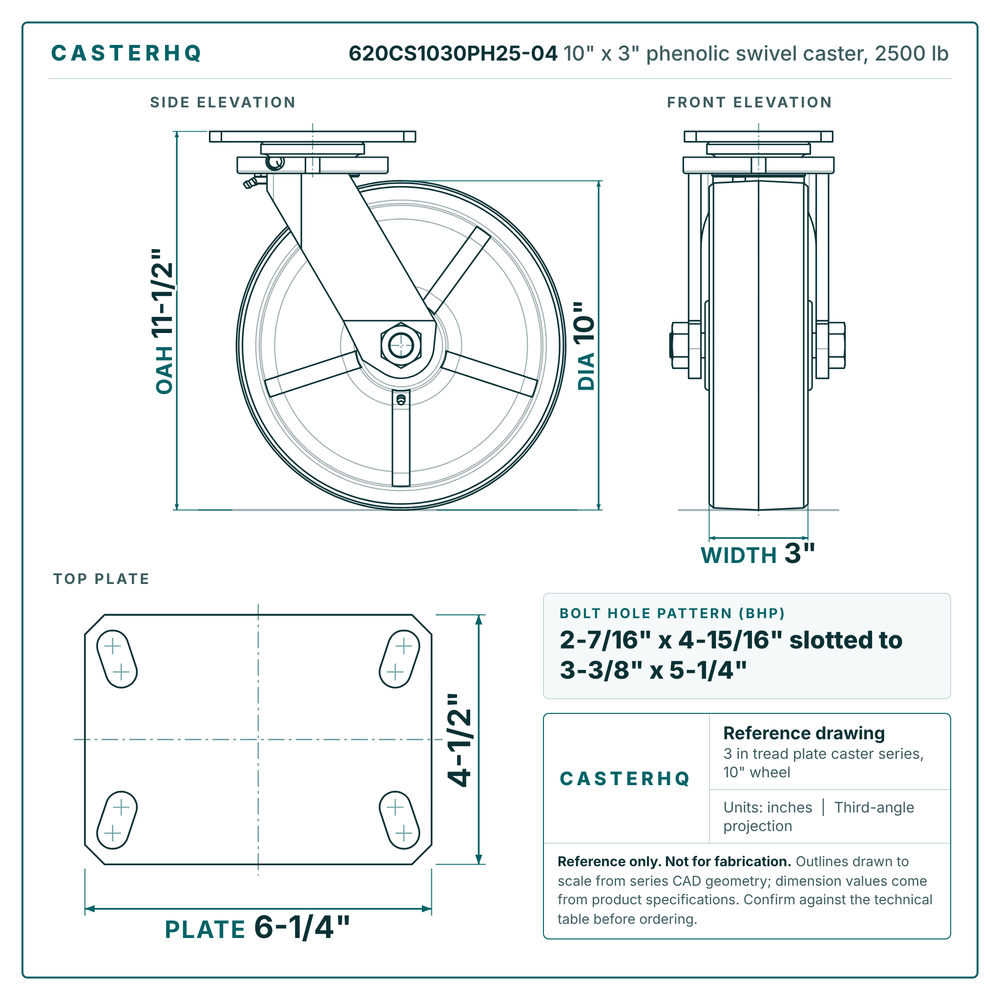

TECHNICAL SPECIFICATIONS:
WHEEL DIAMETER: 10 INCHES
TREAD WIDTH: 3 INCH
WHEEL TYPE: PHENOLIC
LOAD CAPACITY: 2,500 LBS
OVERALL HEIGHT: 11-1/2"
SWIVEL RADIUS: 7-1/2" (w/ no brake)
BEARING: ROLLER BEARING

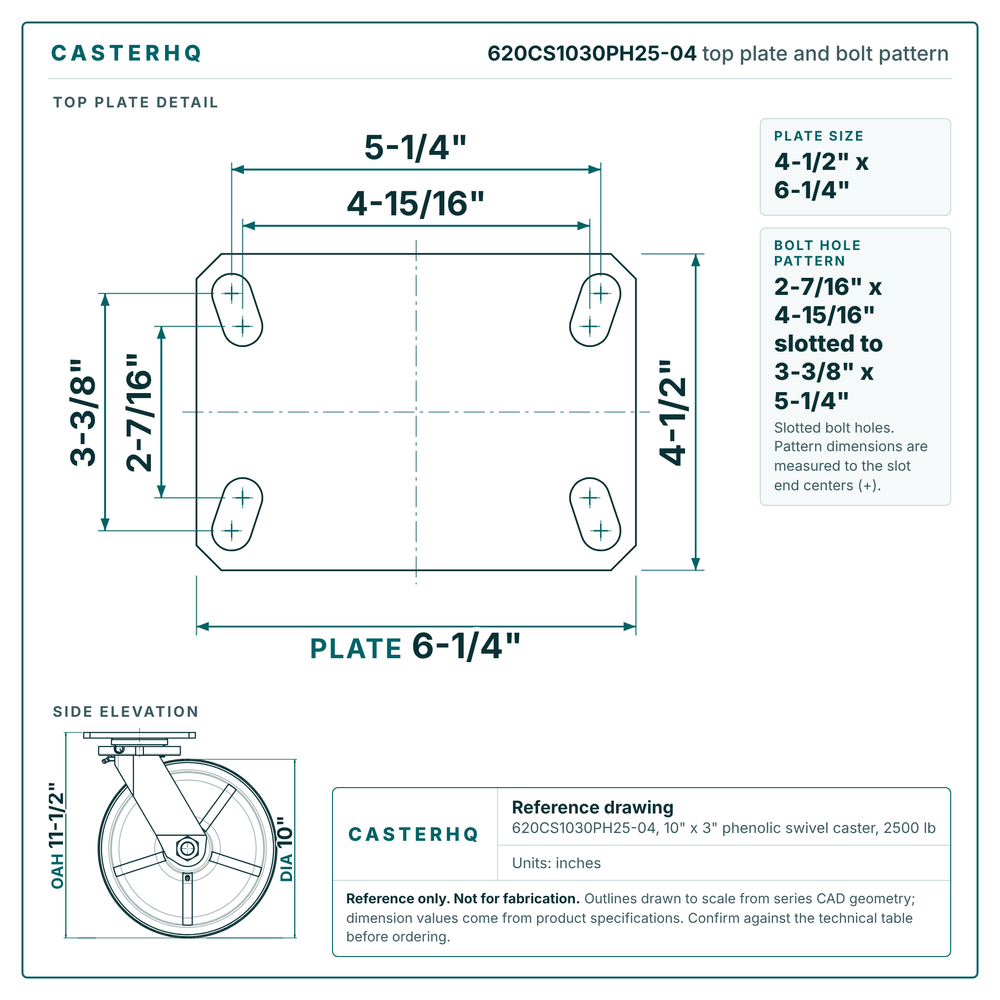

MOUNTING PLATE SIZE: 4-1/2" X 6-1/4"
BOLT HOLE PATTERN: 2-7/16" X 4-15/16" slotted to 3-3/8" X 5-1/4"
ATTACHING BOLT: 1/2"
CASTER TYPE: SWIVEL
Bearing Selection Information:
  • Roller Bearings: Contain a split-sleeve design, hardened steel spring steel outer race combined with a hardened roller and cage assembly for higher load capacities and smoother rolling under heavy conditions. Roller bearings allow more weight to sit on the wheel and strengthen the core of the wheel since it is a heavy steel one-piece design.
  • Precision Ball Bearings: Contain a sealed, hardened inner and outer raceway, and hardened steel balls, press-fitted into the hub for high-load and higher speed capabilities. Maintenance-free, and does not require lubrication of any type of maintenance.
Technical Specs
WHEEL DIAMETER: 10 INCHES
TREAD WIDTH: 3 INCH
WHEEL TYPE: PHENOLIC
LOAD CAPACITY: 2,500 LBS
OVERALL HEIGHT: 11-1/2"
SWIVEL RADIUS: 7-1/2" (w/ no brake)
BEARING: ROLLER BEARING
MOUNTING PLATE SIZE: 4-1/2" X 6-1/4"
BOLT HOLE PATTERN: 2-7/16" X 4-15/16" slotted to 3-3/8" X 5-1/4"
ATTACHING BOLT: 1/2"
CASTER TYPE: SWIVEL
Key Features
• Phenolic resin mixed with macerated canvas; creates a high capacity, high impact resistant wheel that has many years of proven reliability in the industry.
• Hard tread rolls easily, provides good concrete floor protection, and is quieter than steel wheels.
• Resistant to oil, grease & solvents, non-metallic & non-sparking.
• Economically priced wheel.
• Zerk fitting are not standard, but available upon request.
• Durometer: 90 Shore D (+/-5).
• Temperature range: -50° F to 250° F.
