PRODUCT CODE: 60CS1030DS25-04

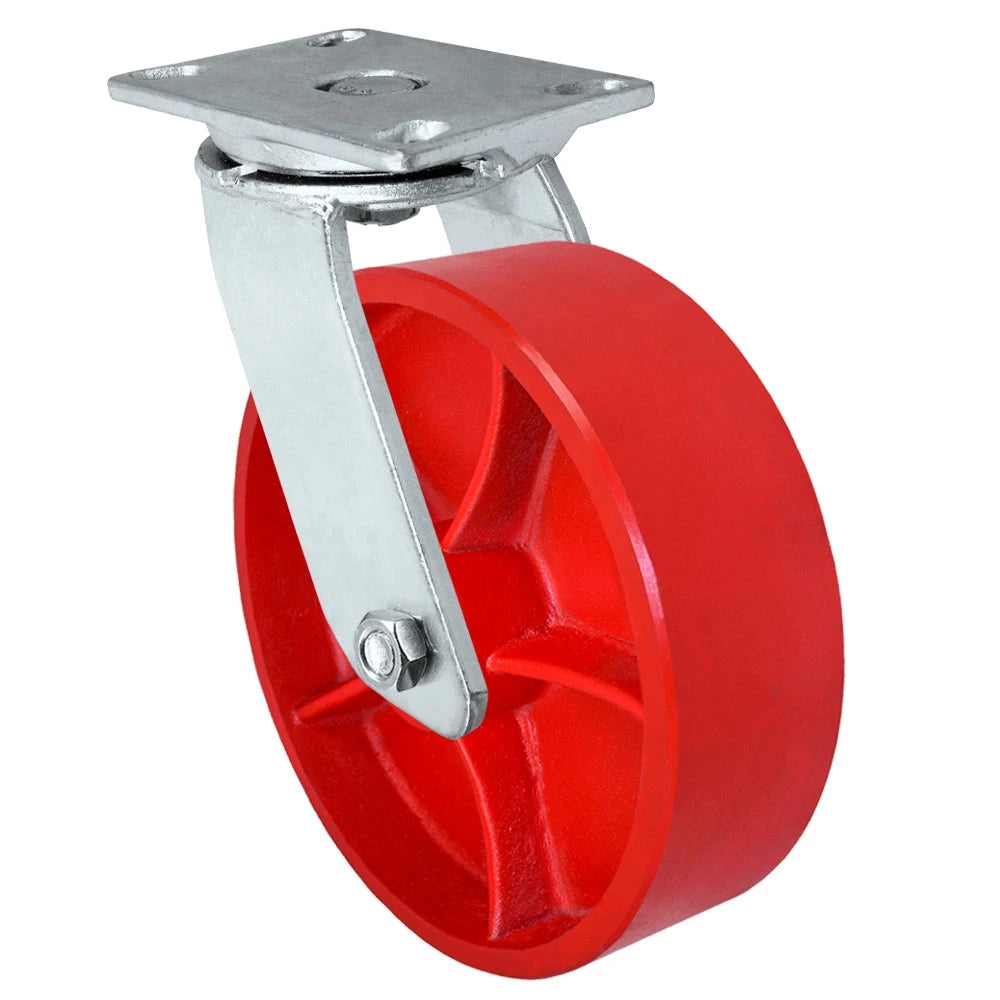

This listing is for a 10-inch diameter by 3-inch tread width Swivel Caster combined with Red Duclite Steel Wheels. These Casters are a Heavy Duty Series of Casters with a weight capacity of 2,500 lbs per caster. For more information please check out our features and technical specifications.
Wheel Diameter: 10"
Tread Width: 3"
Wheel Type: Red Ductile Steel Wheel
Bearing Type: 1" Roller Bearing w/ 3/4" Spanner Bushing (Precision Bearings Available)
Load Capacity: 2,500 lbs

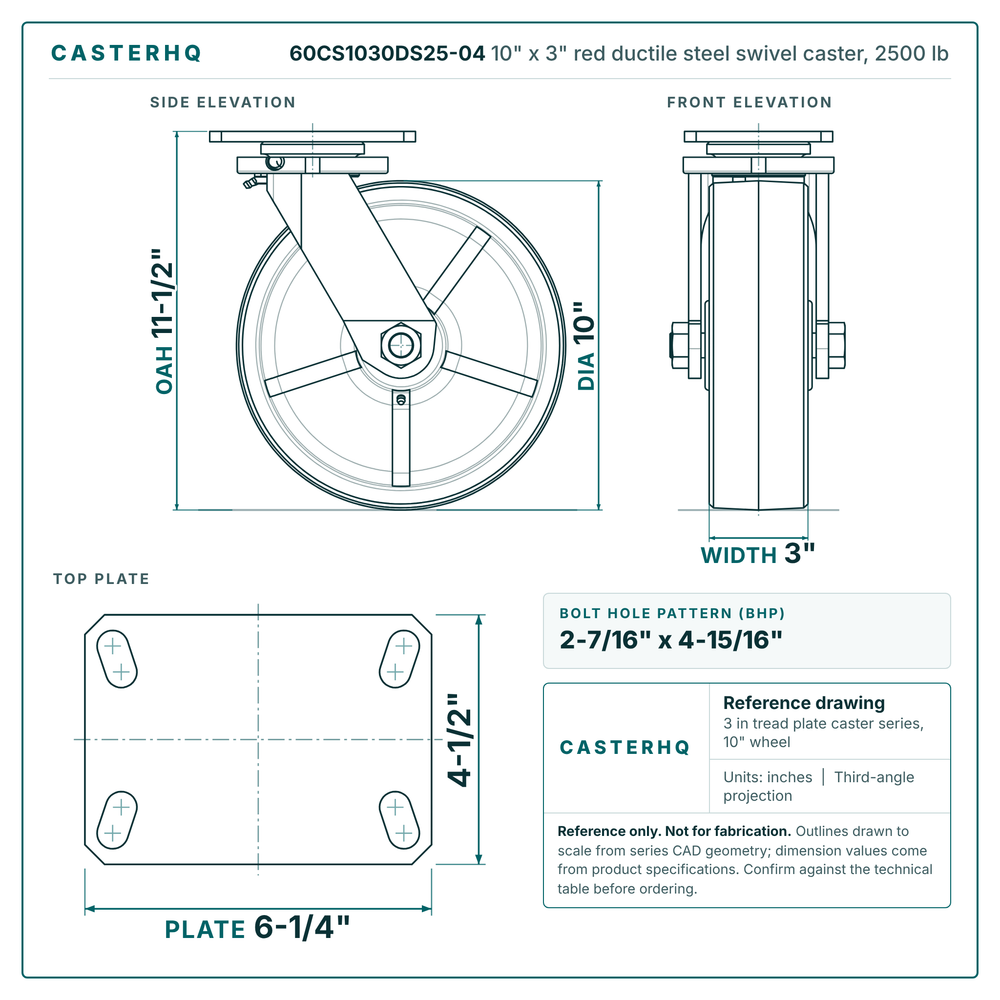

Overall Height: 11-1/2"
Swivel Radius: 7-1/2"

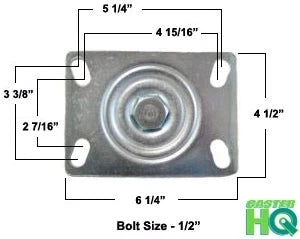

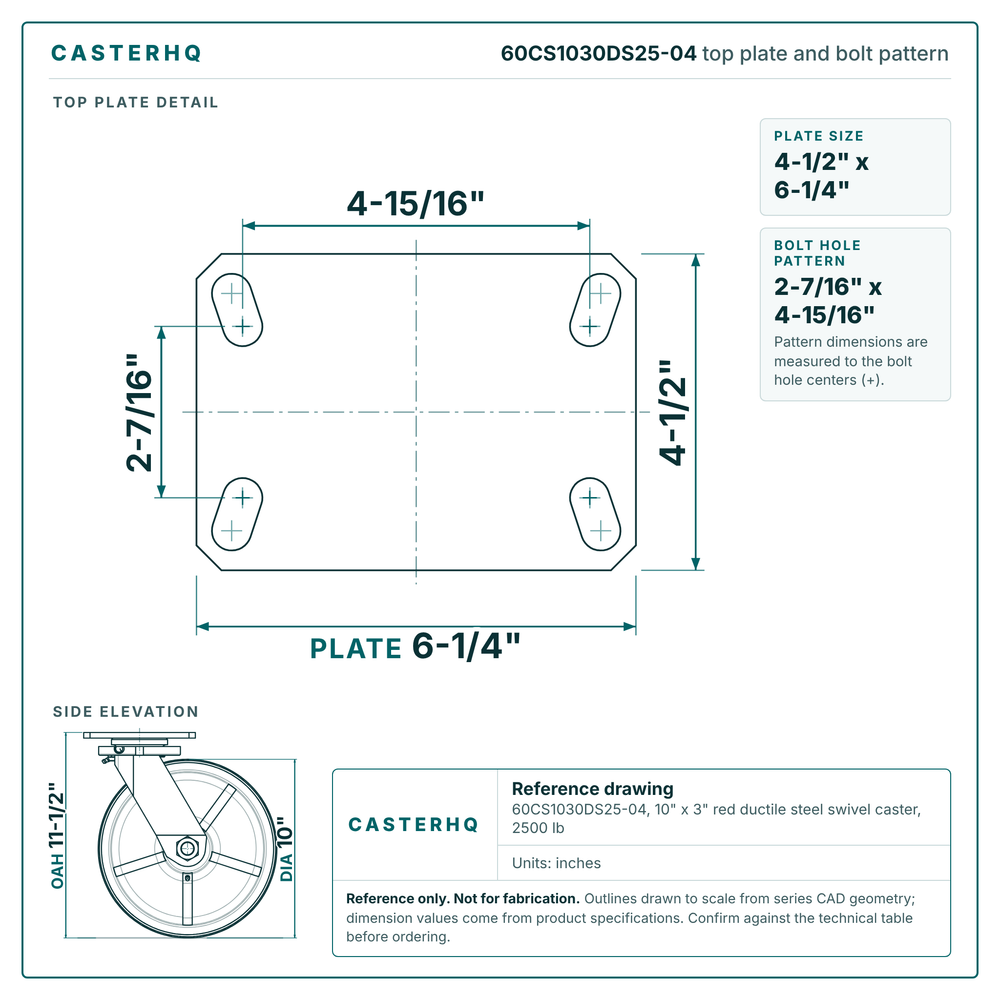

Mounting Plate Size: 4-1/2" x 6-1/4"
Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attaching Mounting Bolt Hole Size: 1/2"
Wheel Diameter: 10"
Tread Width: 3"
Wheel Type: Red Ductile Steel Wheel
Bearing Type: 1" Roller Bearing w/ 3/4" Spanner Bushing (Precision Bearings Available)
Load Capacity: 2,500 lbs
Overall Height: 11-1/2"
Swivel Radius: 7-1/2"
Mounting Plate Size: 4-1/2" x 6-1/4"
Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attaching Mounting Bolt Hole Size: 1/2"
