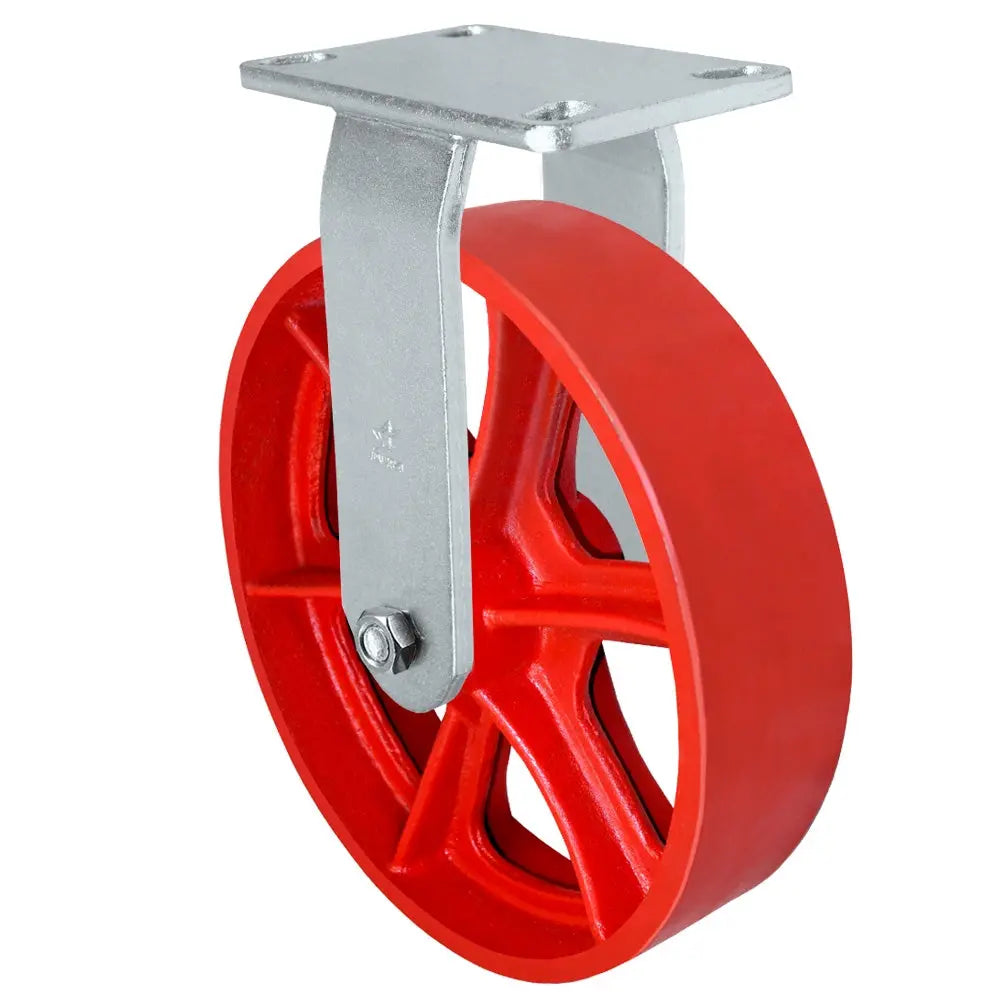

12" x 3" Kingpinless Heavy Duty Rigid Caster - Red Ductile Iron Wheel - 6,000 Lb Cap

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$299.00 USD - $344.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: CB-10RCDS123

Product Overview

Caster Barn's Kingpinless Casters are designed for unsurpassed durability and use in abusive and demanding shock-load applications that may cause traditional kingpin casters to fail. Th e top plate and inner raceway is a unique one piece construction (stronger than machined and & welded designs); the inner and outer raceways are made from hot forged (ASTM 1045) steel, are precision machined and hardened and are held together by 1/2” hardened (HRC45) steel ball bearings. The legs are made from 3/8” steel and are uniformly double welded to the outer raceway, for optimum mobility, strength & stability. These casters will exceed your expectations; not only are they durable and nearly indestructible, they provide a smooth ergonomic swiveling action! Th ere are over a dozen wheels, bearings, brakes and options to choose from.

Popular applications may include; various carts, trucks, dollies, racks & equipment, for almost every industry including industrial, warehousing, hospitality, institutional, food service, food processing, retail display, and countless other medium duty applications.

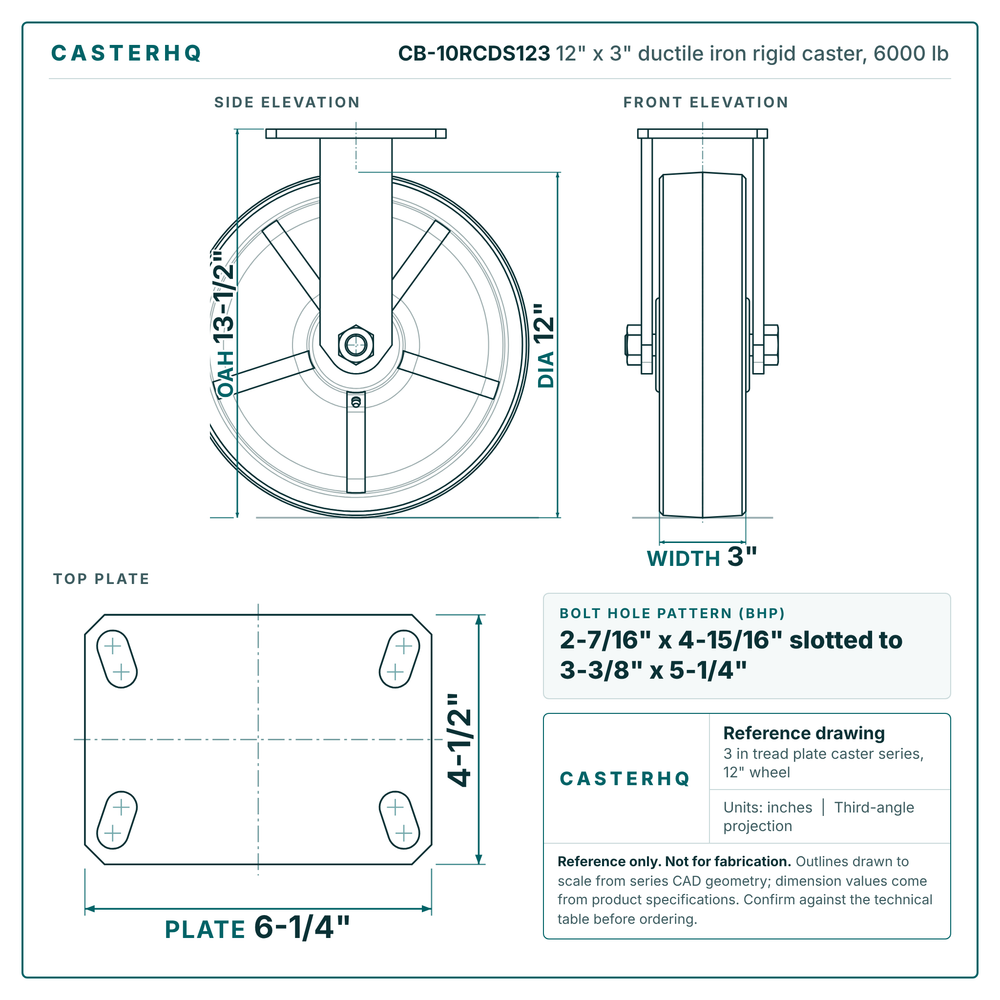

Technical Specs

WHEEL MATERIAL: DUCTILE IRON
WHEEL DIAMETER: 12”
WHEEL TREAD WIDTH: 3”
LOAD CAPACITY: 6,000 LBS /EA

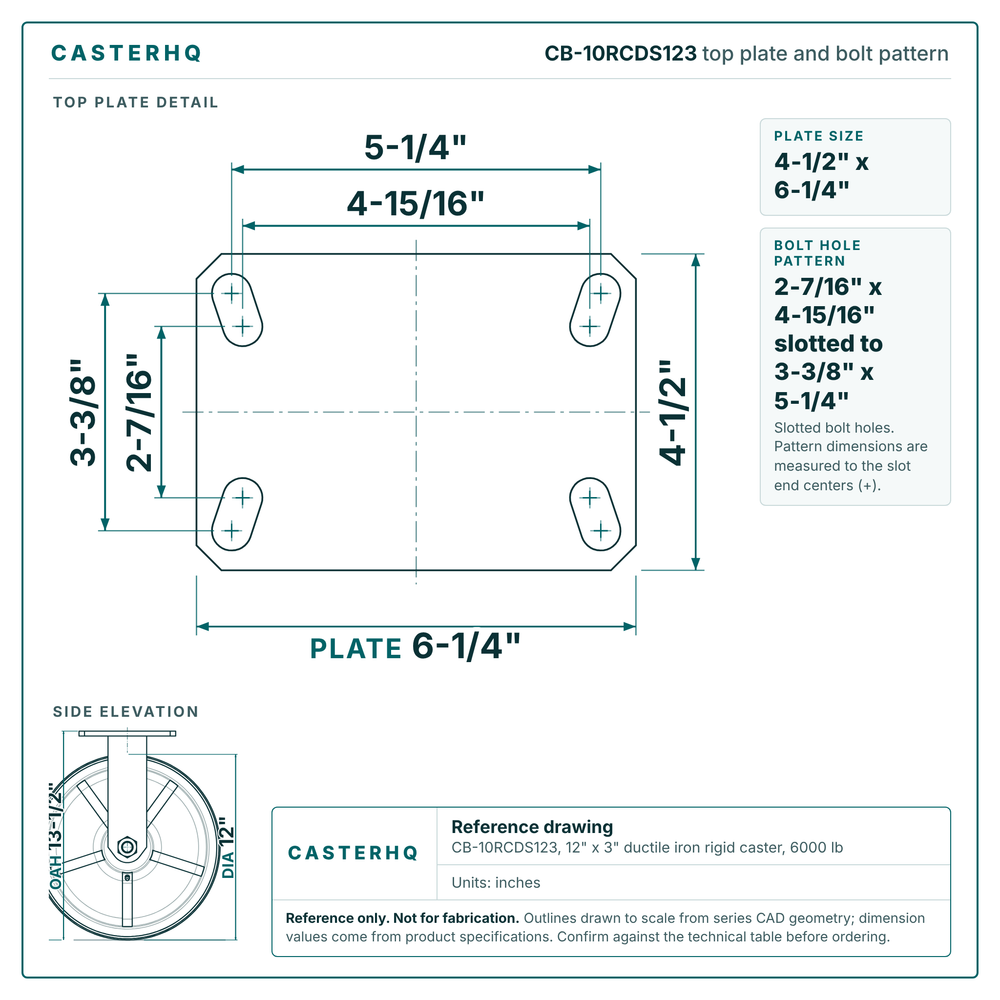

TOP PLATE SIZE: 4-1/2” X 6-1/4”
BOLT HOLE SPACING: 2-7/16 x 4-15/16 slotted to 3-3/8 x 5-1/4
WHEEL DUROMETER: 90 SHORE D (+/-5)
MOUNTING BOLT SIZE: 3/8”
OVERALL HEIGHT: 13-1/2”
BEARING TYPE: CHOOSE YOUR PRECISION BEARING IN THE OPTIONS SECTION
WHEEL COLOR: YELLOW POLY ON BLACK IRON
TEMPERATURE RANGE: -40F – 180F
CASTER BRACKET MATERIAL: ZINC PLATED STEEL
GREASE ZERK: YES
AXLE: ZERK AXLE

Key Features

Ductile steel is a combination of special alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel; also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load.
Extra thick walled, heavy-duty core, hub & tread face.
Precision & tapered bearings maximize mobility and performance in towing and severe use environments.
Tensile strength of 45,000 PSI.
Temperature range: -45° F to 800° F.
