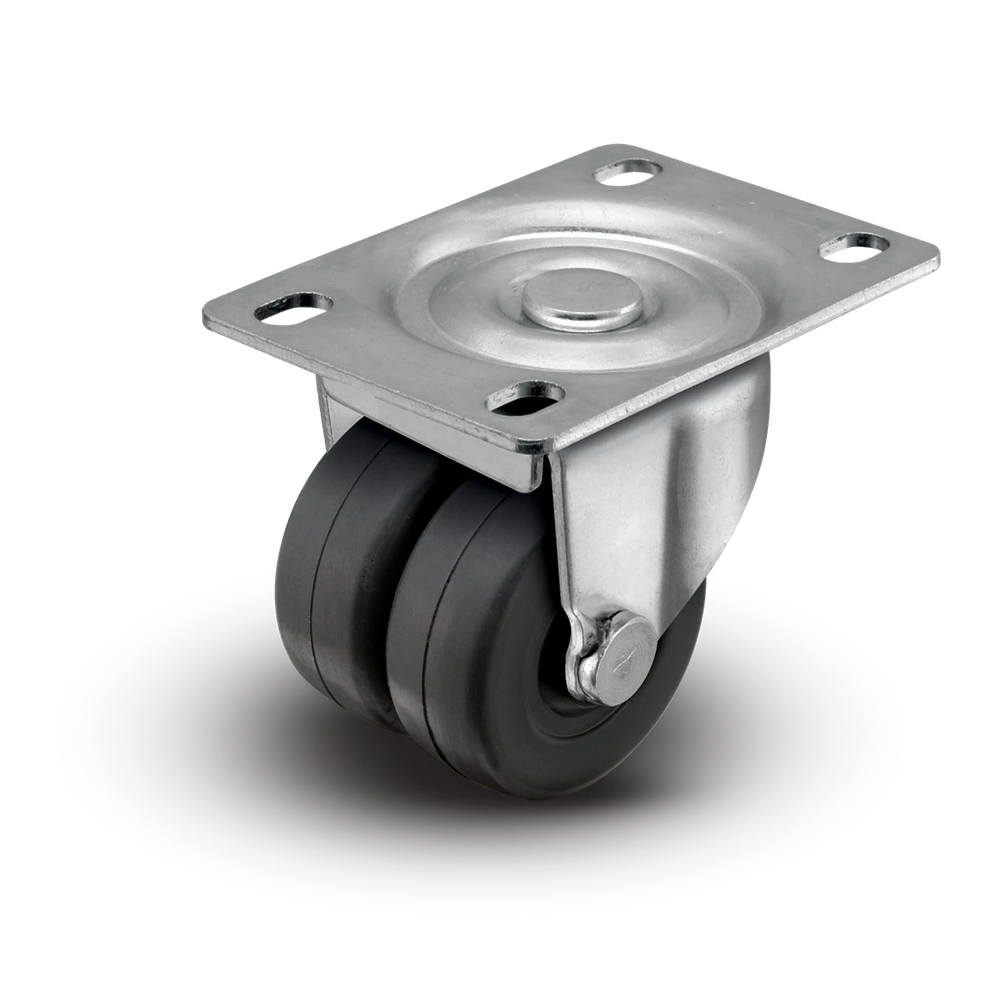

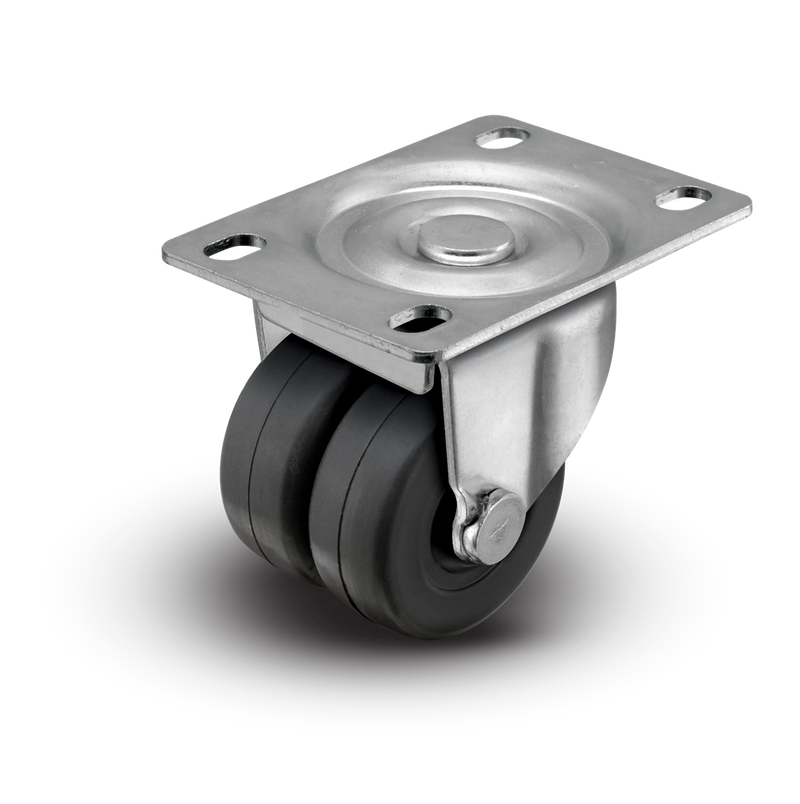

This Shepherd C0020120ZN-SFR01(GG) 2" Soft Rubber Swivel Dual Wheel Caster – 180 lb is rated to 180 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 13/16" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 2-5/8" x 3-3/4" plate and a 1-3/4" x 2-3/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 2-13/16". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$14.00
| Identification | |
| Brand | Shepherd |
| Dimensions & Mounting | |
| Wheel Diameter | 2" |
| Wheel Tread Width | 13/16" |
| Overall Height | 2-13/16" |
| Plate Size | 2-5/8" x 3-3/4" |
| Bolt Hole Pattern | 1-3/4" x 2-3/4" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 180 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |

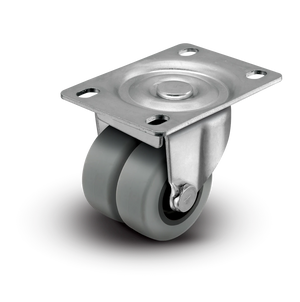

Shepherd C0020120ZN-TPR01(GG) 2" TPR Dual Wheel Swivel Caster – 180 lb | CasterHQ
2" x 13/16" · 180 lbs · Direct fit
$11

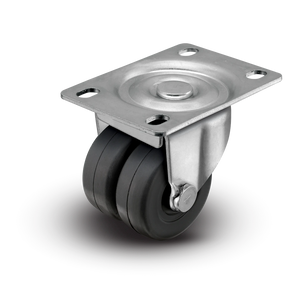

Shepherd C0020120ZN-SFR01(GG)B 2" Soft Rubber Dual Wheel Swivel Caster – 180 lb | CasterHQ
2" x 13/16" · 180 lbs · Direct fit
$15
Shepherd C0020120ZN-TPR01(GG) 2" TPR Dual Wheel Swivel Caster – 180 lb | CasterHQ
2" x 13/16" · 180 lbs · Direct fit
$14
View all low profile casters & heavy-duty compact wheels →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 180 lbs | 2" × 13/16"Gray Rubber | Swivel | 2-13/16" | $14.00 | Viewing | |
| 180 lbsSame capacity | 2" × 13/16"Gray Rubber | Swivel | 2-13/16" | $11.00 | View → | |
| 180 lbsSame capacity | 2" × 13/16"Gray Rubber | Swivel | 2-13/16" | $15.00 | View → | |
| 180 lbsSame capacity | 2" × 13/16"Gray Rubber | Swivel + brake | 2-13/16" | $14.00 | View → | |
| 225 lbsHeavier duty | 2" × 13/16"Gray Rubber | Swivel | 2-13/16" | $14.00 | View → |
