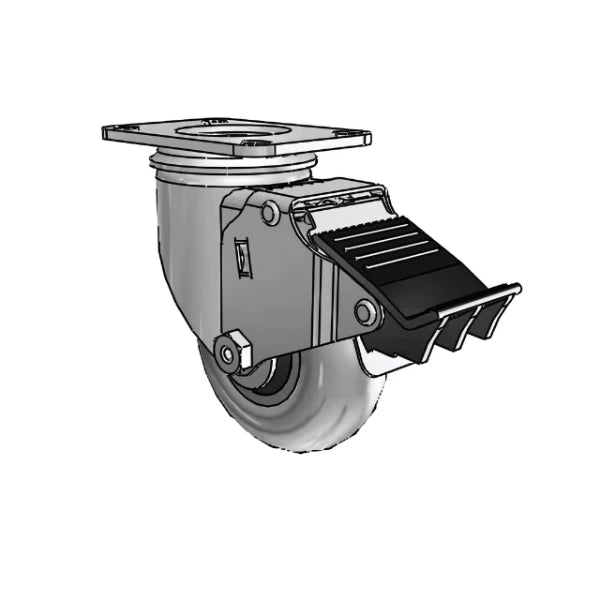

Enhance your equipment with our high-performance 3.5" Conductive Performa swivel caster. Designed for electronic-sensitive environments, this caster offers:
SKU: 2.03256.565 COND BRK5
Wheel Size: 3.5" x 1.3125"
Fastening: 2-1/2" x 3-5/8" Top Plate
Mount Height: 4.69 in
Swivel Radius: 4.75 in
Perfect for use in:
Ensures maximum security and stability when stationary, ideal for sensitive equipment.
Robust design supports heavy loads, suitable for various industrial applications.
Provides a sturdy mounting solution for secure attachment to equipment.
Ensures static dissipation, protecting sensitive electronic components in ESD-sensitive environments.
Optimal clearance for versatile use in various equipment configurations.
Enables smooth maneuverability and easy navigation in tight spaces.
Balanced design for stability and efficient rolling on various surfaces.
Part of the renowned Performa series, known for durability and performance.
Suitable for clean rooms, healthcare equipment, laboratory carts, and more.
Designed for straightforward mounting, reducing setup time and complexity.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Colson 2.03256.565 COND swivel caster is a premium mobility solution featuring a 3.5" x 1.3125" Conductive Performa wheel. This caster is part of the renowned Colson 2 Series, known for its exceptional performance in industrial and institutional applications.
The Colson 2.03256.565 COND caster excels in various environments, including:
This 3.5" x 1.3125" Conductive Performa Swivel Total Lock Caster – 210 lb is rated to 210 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 1-5/16" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.
This caster uses a top-plate mount with a 2-1/2" x 3-5/8" plate and a 1-3/4" x 2-13/16" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Total Lock Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 4.69". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$79.00
| Dimensions & Mounting | |
| Wheel Diameter | 3-1/2" |
| Wheel Tread Width | 1-5/16" |
| Overall Height | 4.69" |
| Plate Size | 2-1/2" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-13/16" |
| Mount Style | Plate |
| Rig Type | Swivel with Total Lock Brake |
| Load & Performance | |
| Wheel Capacity | 210 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Total Lock Brake |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Wheel Core Material | Polyolefin |
| Frame Material | Zinc Plated Steel |
