This 3" Neoprene Rubber 7/16" Grip Ring Stem Caster – 110 lb is rated to 110 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Gray Rubber wheel with a 13/16" tread width. Rubber absorbs shock and protects floors, and runs quietly, which suits noise-sensitive and light-to-medium duty use.

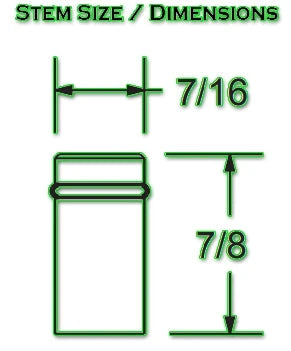

This caster uses a Grip Ring Stem mount. Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Gray Rubber wheel performs best on rough, uneven, or outdoor surfaces such as asphalt, gravel, and cracked concrete. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 3-7/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$151.00
| Dimensions & Mounting | |
| Wheel Diameter | 3" |
| Wheel Tread Width | 13/16" |
| Overall Height | 3-7/8" |
| Mount Style | Grip Ring Stem |
| Load & Performance | |
| Wheel Capacity | 110 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Wheel Material | Gray Rubber |
| Frame Material | Zinc Plated Steel |
3" x 1-1/4" Black Polyolefin Swivel Caster – 250 lb | 7/16" x 1-3/8" Grip Ring Stem
3" x 1-1/4" · 250 lbs
$19
3" x 1-1/4" Hard Rubber Swivel Caster – 275 lb | 7/16" x 1-3/8" Grip Ring Stem
3" x 1-1/4" · 275 lbs
$19
3" x 1-1/4" Maroon Premium Polyurethane Swivel Caster – 275 lb | 7/16" x 1-3/8" Grip Ring Stem
3" x 1-1/4" · 275 lbs
$24
View all stem casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 110 lbs | 3" × 13/16"Gray Rubber | — | 3-7/8" | $151.00 | Viewing | |
| 250 lbsHeavier duty | 3" × 1-1/4"Polyolefin | Swivel | 4-3/16" | $19.00 | View → | |
| 275 lbsHeavier duty | 3" × 1-1/4"Hard Rubber | Swivel | 4-3/16" | $19.00 | View → | |
| 275 lbsHeavier duty | 3" × 1-1/4"Premium Polyurethane | Swivel | 4-3/16" | $24.00 | View → | |
| 350 lbsHeavier duty | 3" × 1-1/4"Cast Iron | Swivel | 4-3/16" | $23.00 | View → |
