3" x 1-1/4" Swivel Caster Frame 2-3/8" x 3-5/8" Top Plate | CasterHQ

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HQ1330S-PL1-Y

Product Overview

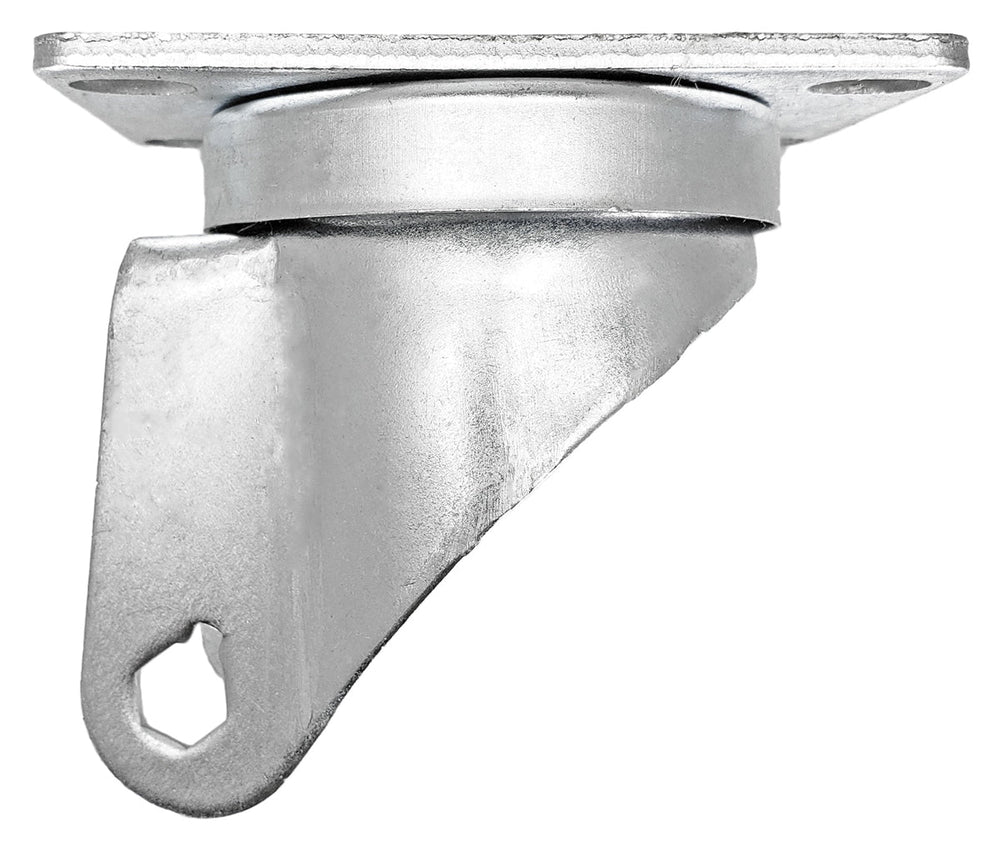

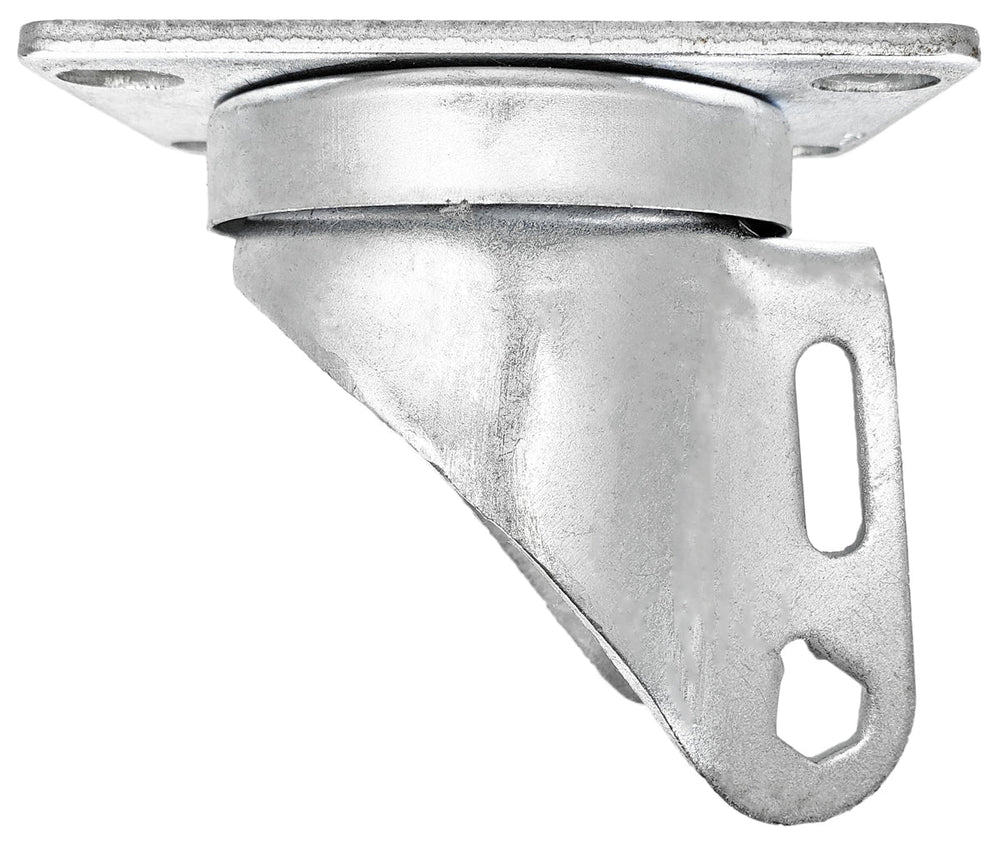

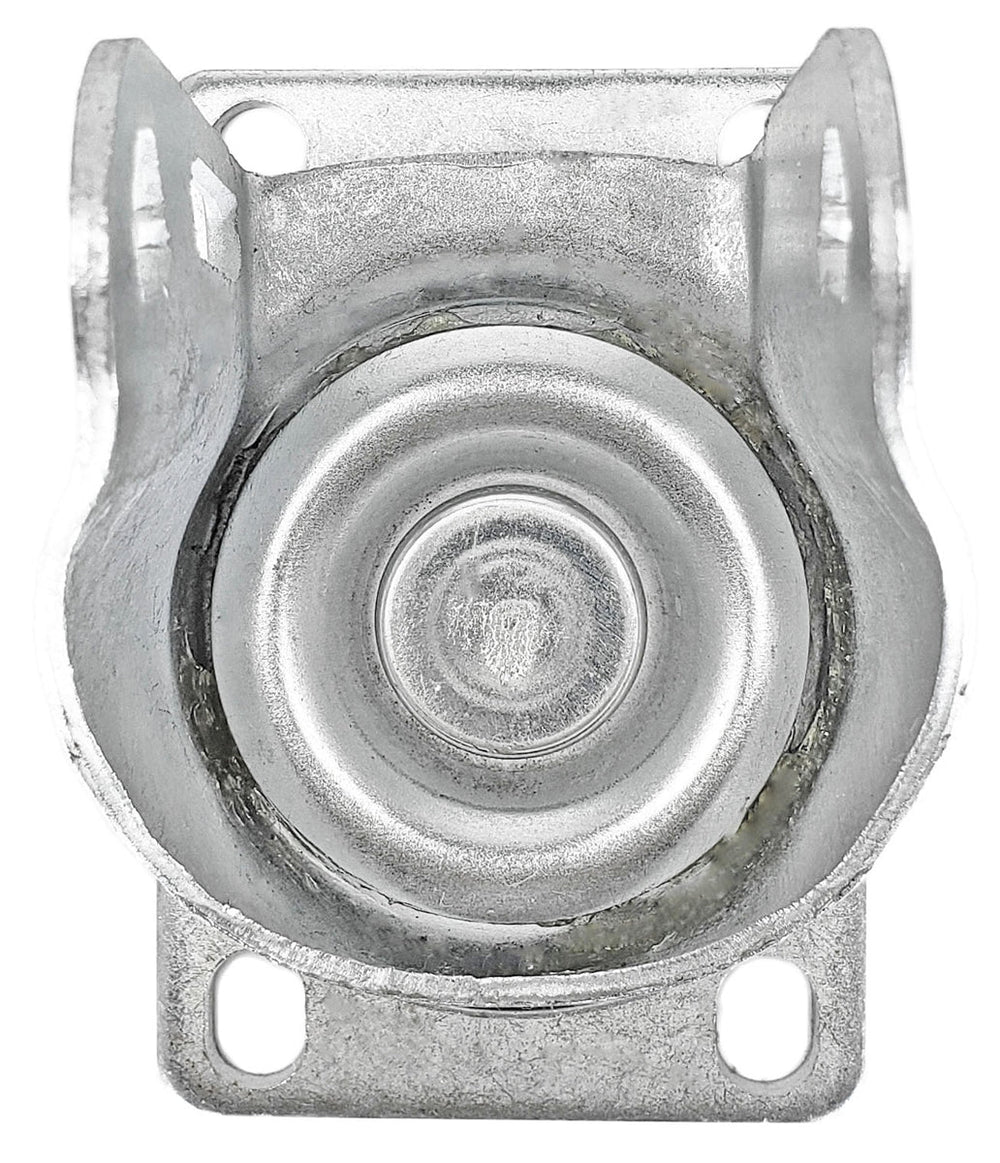

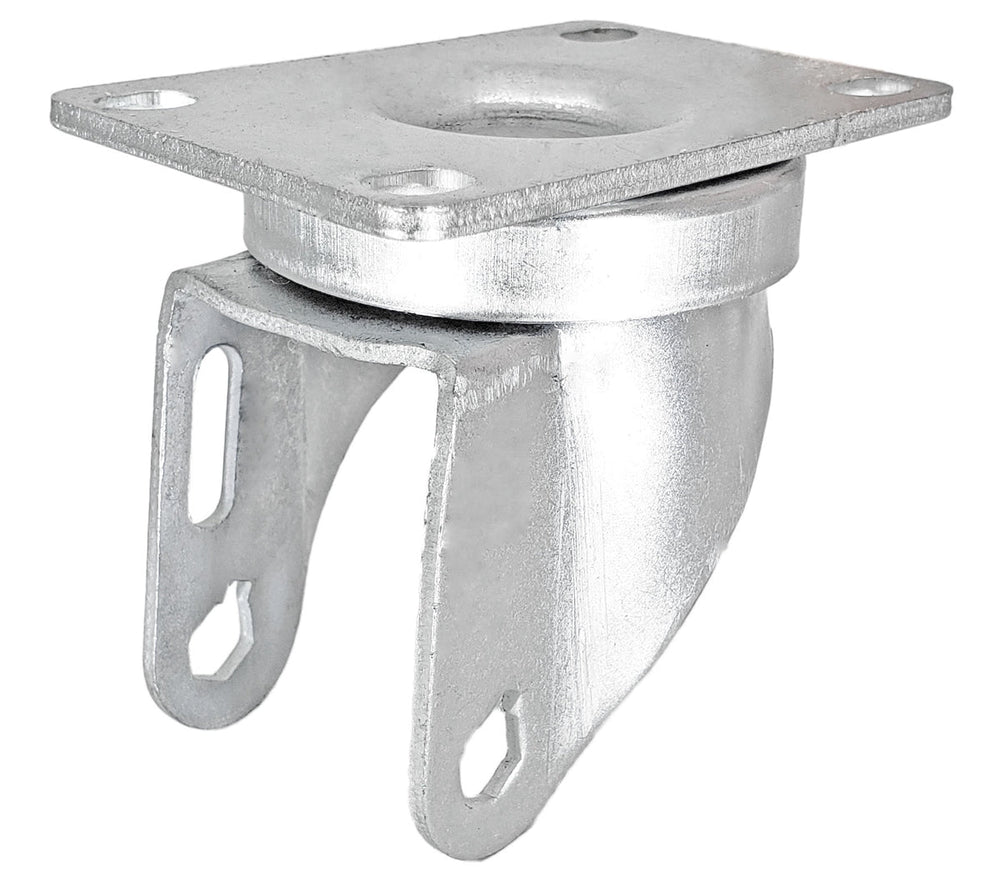

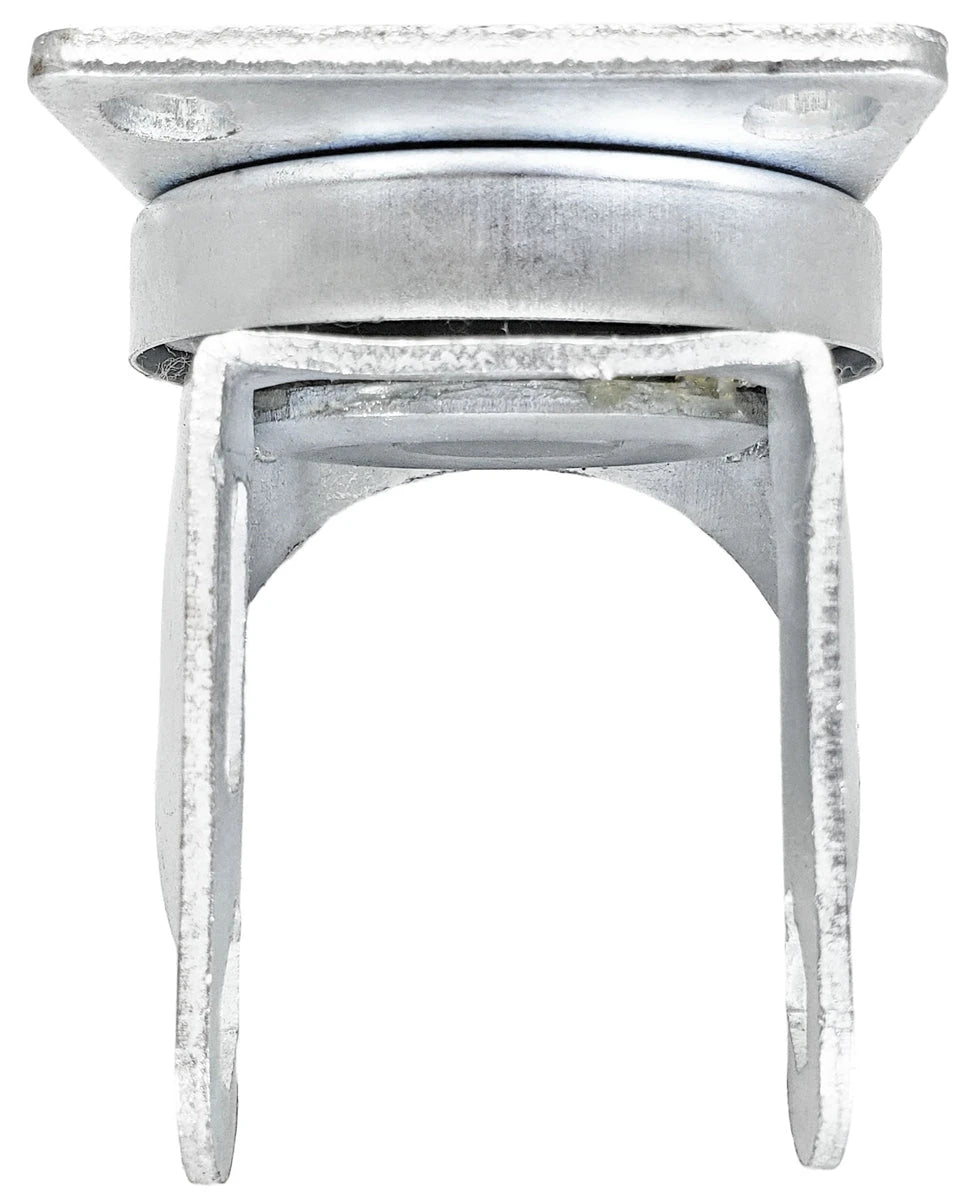

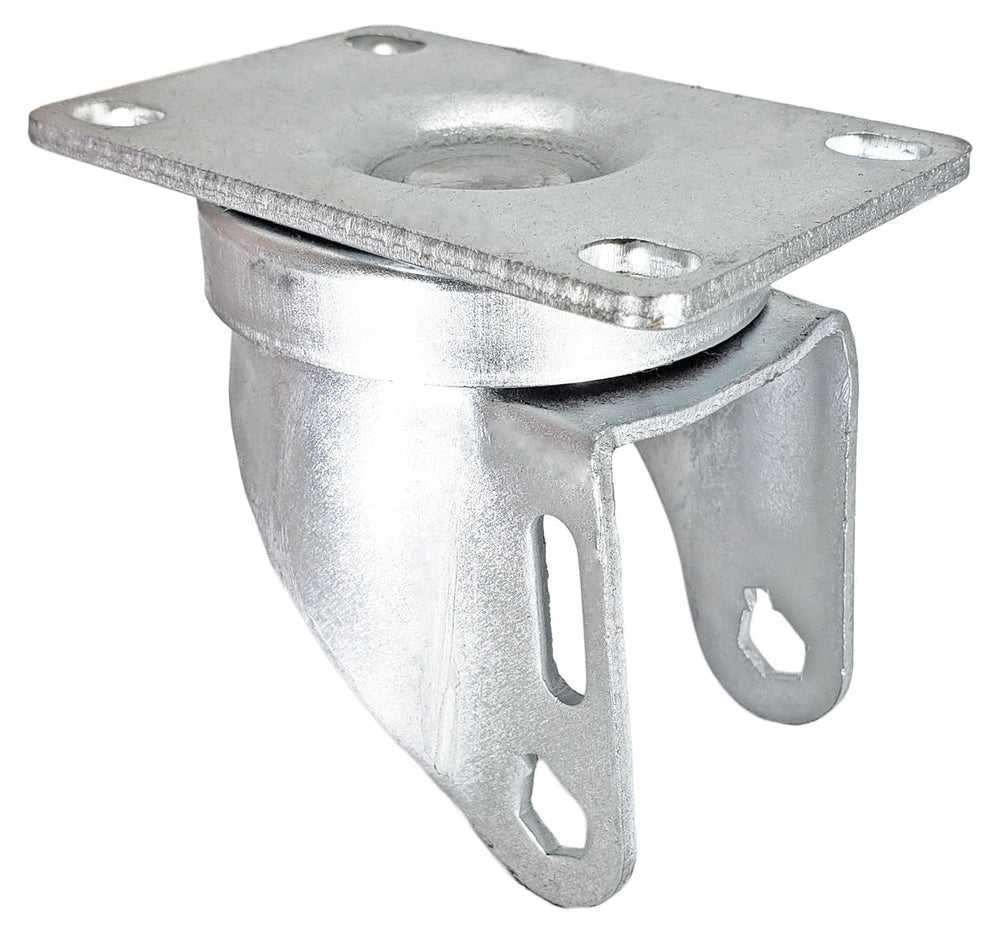

3" x 1-1/4" Swivel Caster Frame - 2-3/8" x 3-5/8" Mounting Plate - 350 lbs Capacity


This listing is for our light/medium duty institutional 3 Inch Swivel Yoke/Frame/Rig which is made to be used with a 3" diameter by 1-1/4" wide caster wheel. This Swivel Frame is the highest quality in the industry with many upgraded features to extend the life and durability of this swivel yoke. Standard upgraded features include; Dual Ball bearing Raceway for easier roll-ability compared to a single raceway. Hardened Raceways for extra strength and lifespan, Dust Cover helps protect swivel bearings from dust and debris, 3/8" diameter axle and lock nut included with every yoke.
  • Finish: Bright Zinc Plating Finish - Helps prevent rust and adds beautiful aesthetic look.
  • Swivel: Double Ball Bearing raceway and hardened for extra strength.
  • Axle: 3/8" Axle and Lock Nut Included
  • Dust Cover: Helps protect swivel bearings from dust and debris - Also helps keep grease within the bearing raceway.

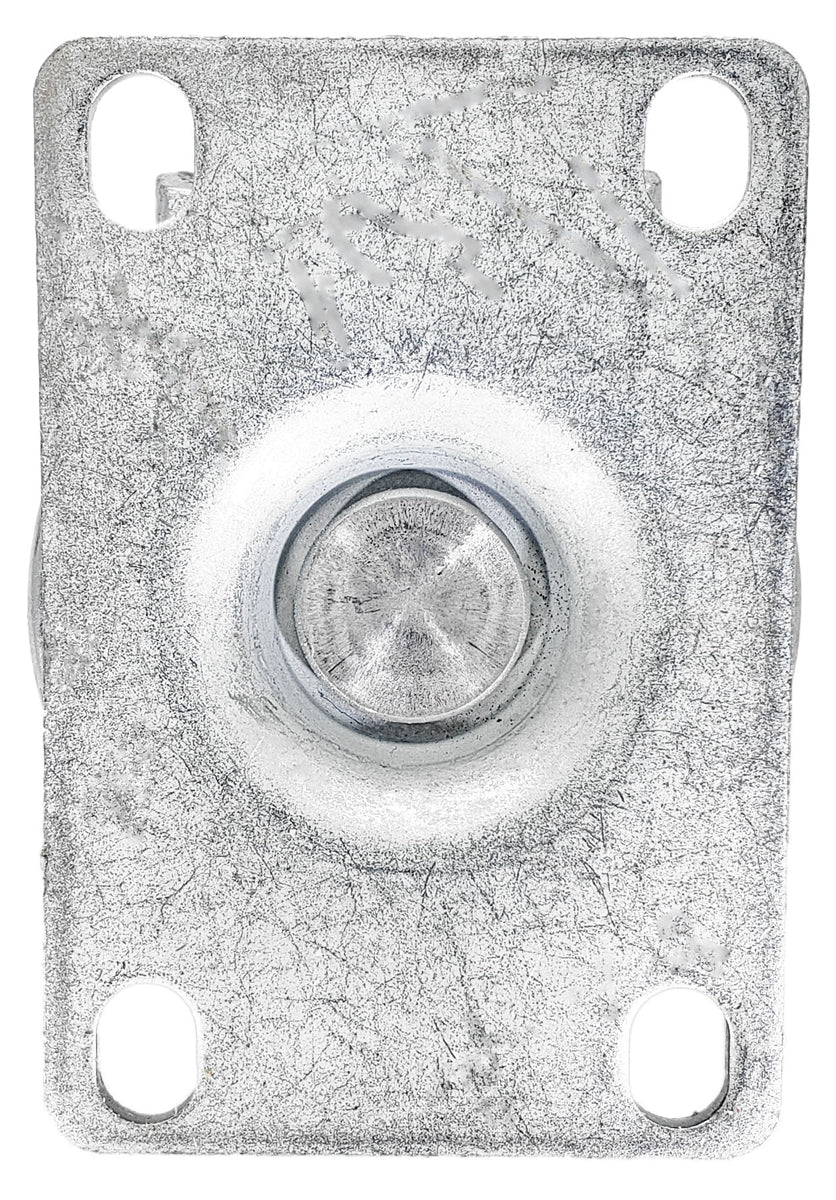

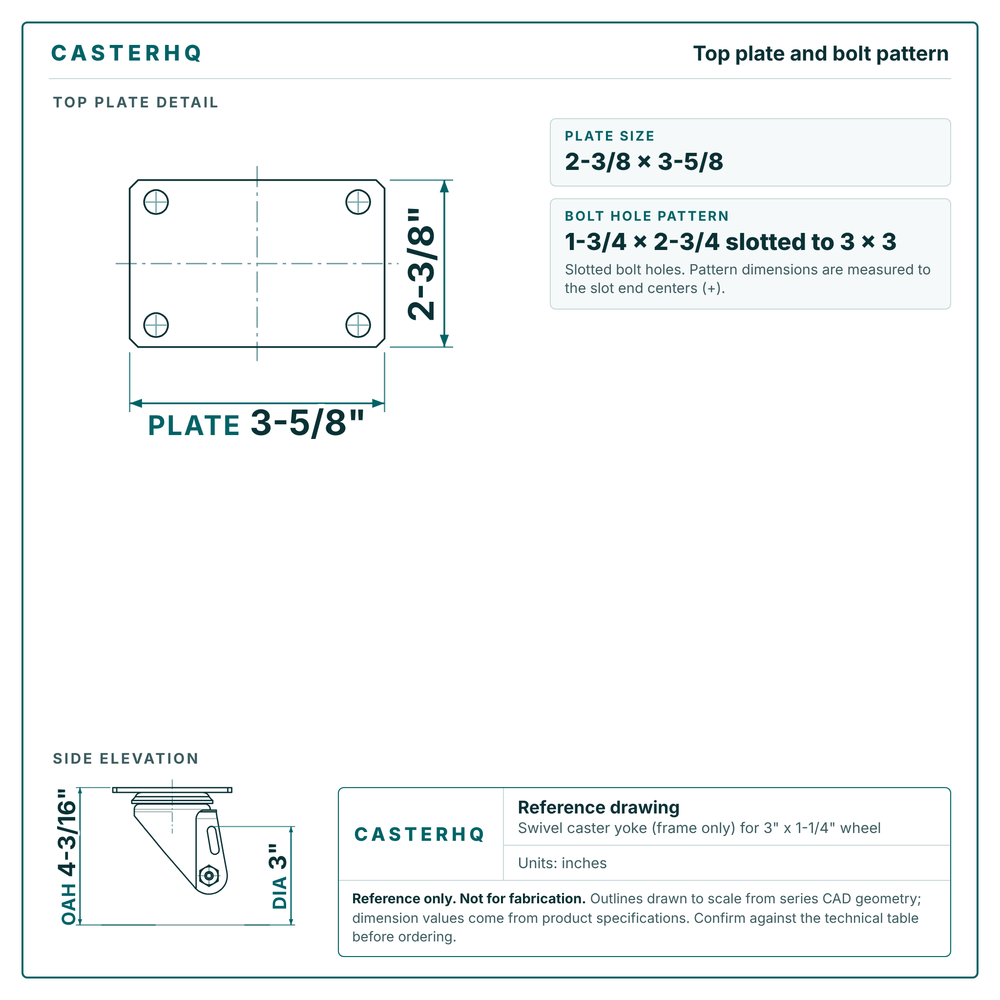

  • Mounting Plate Size: 2-3/8" x 3-5/8"
  • Bolt Hole Pattern: 1-3/4" x 2-3/4" Slotted to 3" x 3"
  • Attaching Bolt: 5/16" (Not Included)
  • Diameter: Made to fit a 3" x 1-1/4" Caster Wheel
  • Weight Capacity: 350 lbs (depends on the wheel used)

Common Applications:
  • Bakery & Food Service Equipment
  • Institutional, Hotel & Hospital Equipment
  • Laboratory Equipment
  • Material Handling Equipment
  • Moving Dollies
  • Office & Store Fixtures
  • Utility & Maintenance Carts
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

3
3" x 1-1/4" Swivel Caster Frame 2-3/8" x 3-5/8" Top Plate | CasterHQ

$13.00

Add 49 more for 5% off
10% off unlocked
1
Order in 2h 14m for same-day processing

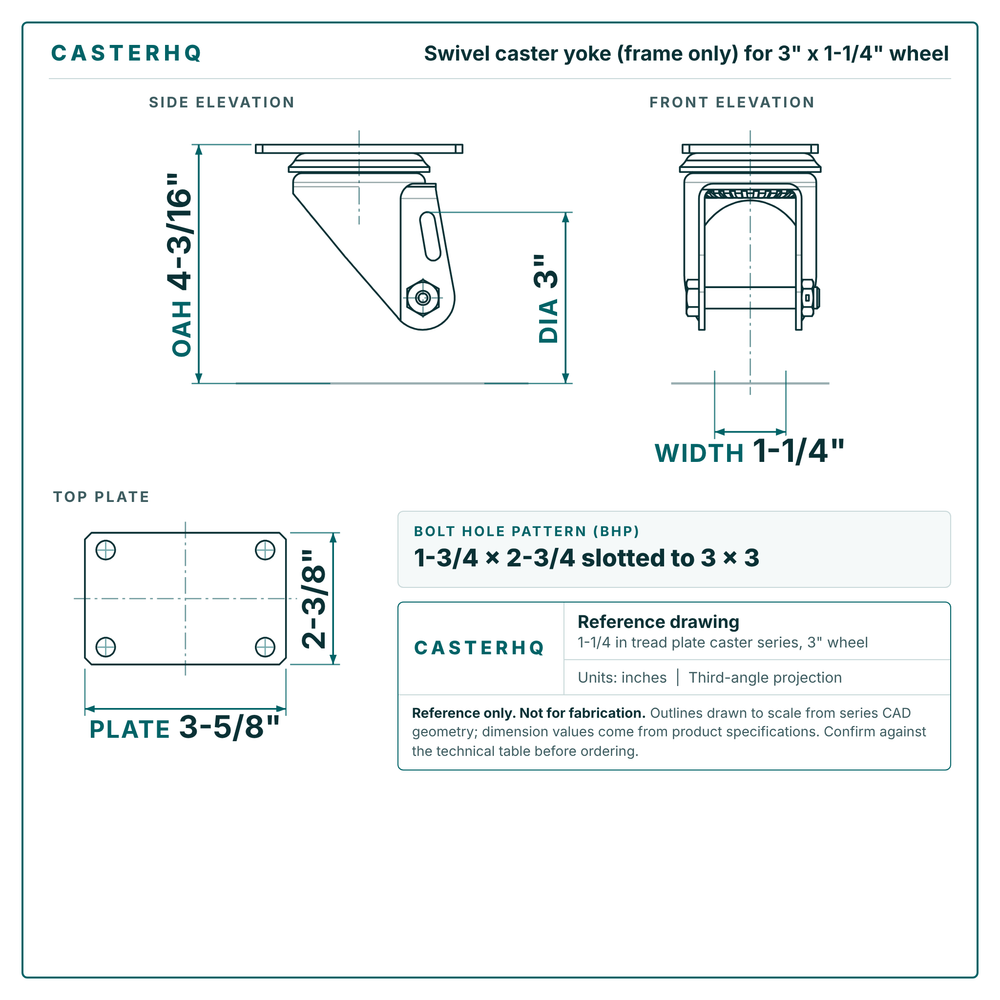

Technical Specifications

Wheel Diameter 3"
Wheel Tread Width 1-1/4"
Wheel Capacity 350 lbs
Frame Material Zinc Plated Steel
Bolt Hole Pattern 1-3/4" x 2-3/4" slotted to 3" x 3"
Mount Style Plate
Plate Size 2-3/8" x 3-5/8"
Rig Type Swivel
Brake Type No Brake
